ABB
ABB MRP31.0 Modbus RTU Interface 1SAJ530000R0100
ABB MRP31.0 Modbus RTU Interface 1SAJ530000R0100
Regular price
R 5,959.24 ZAR
Regular price
R 10,834.98 ZAR
Sale price
R 5,959.24 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

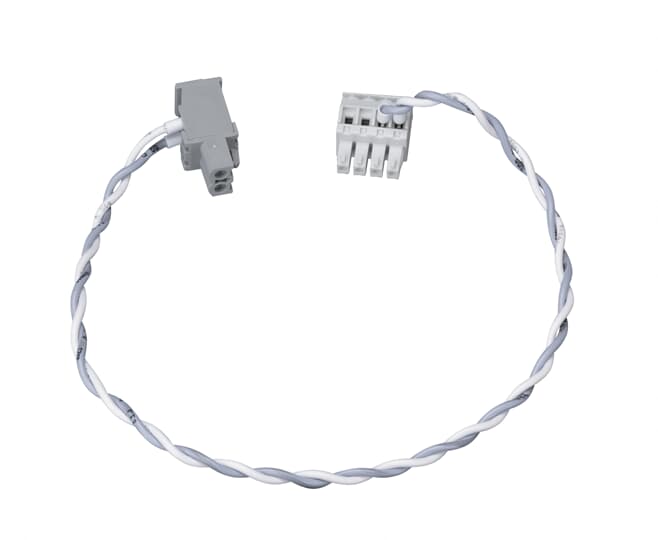

UMCIO-CAB.030 Connection Cable to connect UMC100.3 to first IO Module, e.g. UMC100.3 to VI150-FBP.0. The cable wires are twisted and unshielded.
Specifications
| Technical | |
|---|---|
| Suitable For: | UMC100-FBPUMC100.3DX111-FBP.0DX122-FBP.0AI111.0VI150-FBP.0VI155-FBP.0 |
| Suitable for Isolation: | Yes |
| Suitable for Product Class: | Universal Motor ControllersUniversal Motor Controllers Accessories |
| Tightening Torque: | Control Circuit 0.5 N·m |
| Fieldbus Interface Type: | none |
| Mounting Type: | DIN-Rail with Adapter |
| Mounting on DIN Rail: | No |
| Recommended Screw Driver: | Pozidriv 1 |
| Connecting Capacity: | 1x 0.75-1.5 mm² |
| Wire Stripping Length: | 7 mm |
| Terminal Type: | Screw Terminals |
| Environmental | |
| Degree of Protection: | IP20 |
| RoHS Status: | No declaration needed |
| Technical UL/CSA | |
| Connecting Capacity UL/CSA: | Flexible with Ferrule 1x 18-16 AWGRigid 1x 18-16 AWG |
| Dimensions | |
| Product Net Width: | 16 mm |
| Product Net Height: | 0.026 mm |
| Product Net Depth / Length: | 320 mm |
| Product Net Weight: | 0.011 kg |
| Container Information | |
| Package Level 1 Units: | bag 1 piece |
| Package Level 1 Width: | 22.5 mm |
| Package Level 1 Height: | 78 mm |
| Package Level 1 Depth / Length: | 102 mm |
| Package Level 1 Gross Weight: | 0.011 kg |
| Package Level 1 EAN: | 4013614404160 |
| Ordering | |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85444290 |
| Certificates and Declarations (Document Number) | |
| ATEX Certificate: | No |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | 2CDC135013D0202 |
| RoHS Information: | 1SAA981017-2401 |
| Regulatory Compliance Mark (RCM): | |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC135013D0202 |
| Instructions and Manuals: | 2CDC135013D0202 |
| Classifications | |
| ETIM 7: | EC001604 - Fieldbus, decentr. periphery - communication module |
| ETIM 8: | EC001604 - Fieldbus, decentr. periphery - communication module |
| EPLAN Catalog Tree: | Electrical engineering / Protection devices / Motor overload switch |
| WEEE Category: | Product Not in WEEE Scope |
| CN8: | 8544 42 90 |
| eClass: | V11.0 : 27242608 |
| Object Classification Code: | X |
