ABB
Regular price
R 4,303.40 ZAR
Regular price
R 6,332.15 ZAR
Sale price
R 4,303.40 ZAR
Unit price
/
per
Couldn't load pickup availability

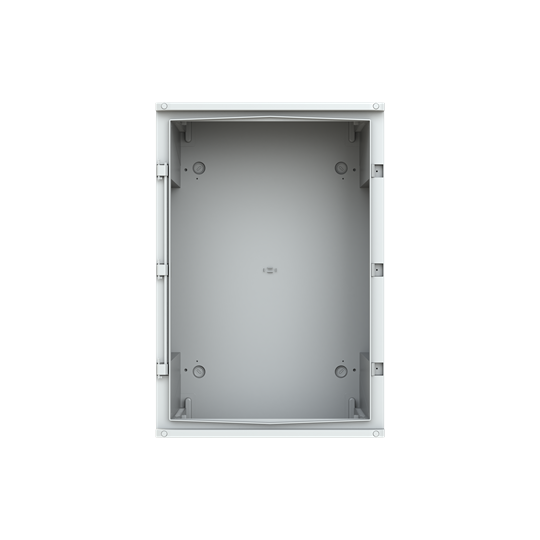

BOX-SIZE 5 Gemini IP66 Insulating switchboards
Specifications
| Technical |
| Rated Current (In): |
100 A |
| Number of Rows: |
5 |
| Configuration Type: |
Box |
| Cover Plate Type: |
None |
| Enclosure Type NEMA: |
Type4X |
| Mounting Type: |
Surface mounted (plaster) |
| Surface Finishing: |
Untreated |
| Enclosure Material: |
thermoplastic |
| Housing Material: |
Plastic |
| DIN Place Units: |
120 |
| RAL Number: |
RAL 7035 - Light Grey |
| Color: |
grey |
| Thickness: |
Cabinet Plate 5 mmDoor Plate 3 mm |
| Environmental |
| Degree of Protection: |
IP66 |
| Protection Class: |
Grounded |
| Environmental Information: |
1SLC805001D0907 |
| Dimensions |
| Width in Number of Modular Spacings: |
120 |
| Product Net Width: |
585 mm |
| Product Net Height: |
855 mm |
| Product Net Depth / Length: |
360 mm |
| Product Net Weight: |
14 kg |
| Size: |
5 |
| Built-In Depth (t2): |
330 mm |
| Container Information |
| Package Level 1 Units: |
box 1 piece |
| Package Level 1 Width: |
0.598 m |
| Package Level 1 Height: |
0.867 m |
| Package Level 1 Depth / Length: |
0.376 m |
| Package Level 1 Gross Weight: |
14 kg |
| Package Level 1 EAN: |
8000126220285 |
| Ordering |
| Minimum Order Quantity: |
1 piece |
| Customs Tariff Number: |
85371098 |
| Country of Origin: |
Italy (IT) |
| Certificates and Declarations (Document Number) |
| Declaration of Conformity - CE: |
No declaration needed |
| Environmental Information: |
1SLC805001D0907 |
| Instructions and Manuals: |
9AKK107992A4361 |
| RoHS Information: |
1SLT00054R4E0 |
| Popular Downloads |
| Data Sheet, Technical Information: |
1SLC805001D0907 |
| Instructions and Manuals: |
9AKK107992A4361 |
| Classifications |
| ETIM 7: |
EC000058 - Empty cabinet |
| ETIM 8: |
EC000058 - Empty cabinet |
| WEEE Category: |
Product Not in WEEE Scope |
| eClass: |
V11.0 : 27142408 |
| Object Classification Code: |
U |
