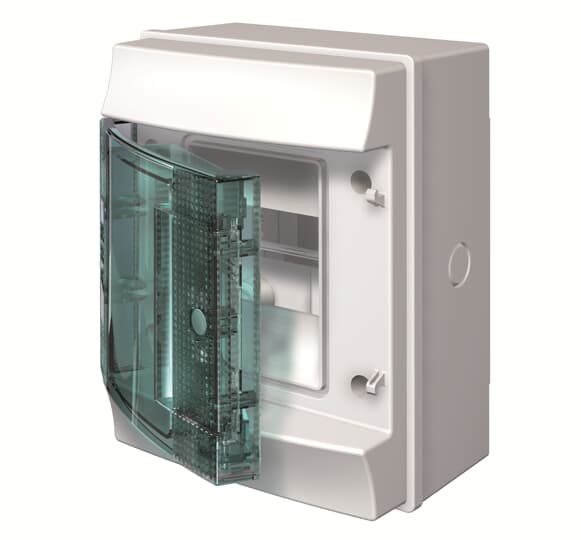

ABB 65P04X12 Consumer Unit (empty) 1SL1200A00

MISTRAL65 transparent door 4 DIN modules GWT 650°C

Specifications

Technical
Power Loss:	12 W
Number of Line Terminals:	0
Number of Rows:	1
Cover Plate Type:	Door
Mounting Type:	Surface mounted (plaster)
Door Type:	Single
Enclosure Material:	thermoplastic
Housing Material:	Plastic
Transparent Door:	Yes
Cover Style:	with Notch
DIN Place Units:	4
RAL Number:	RAL 7035 - Light Grey
Color:	grey
Environmental
Degree of Protection:	IP65
Protection Class:	Isolated
RoHS Status:	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Environmental Information:	1SLC801013D0201
Dimensions
Width in Number of Modular Spacings:	4
Product Net Width:	152.000 mm
Product Net Height:	117.000 mm
Product Net Depth / Length:	202.000 mm
Product Net Weight:	0.54 kg
Container Information
Package Level 1 Units:	box 24 piece
Package Level 1 Width:	400 mm
Package Level 1 Height:	525 mm
Package Level 1 Depth / Length:	600 mm
Package Level 1 Gross Weight:	13.92 kg
Package Level 1 EAN:	8000126097917
Ordering
Minimum Order Quantity:	1 piece
Customs Tariff Number:	85371098
Country of Origin:	Bulgaria (BG)
Certificates and Declarations (Document Number)
Declaration of Conformity - CE:	No declaration needed
Environmental Information:	1SLC801013D0201
Instructions and Manuals:	No document needed
REACH Declaration:	9AKK108467A3199
RoHS Information:	9AKK108467A3199
Popular Downloads
Data Sheet, Technical Information:	1SLC801013D0201
Instructions and Manuals:	No document needed
Classifications
ETIM 7:	EC000214 - Small distribution board
ETIM 8:	EC000214 - Small distribution board
WEEE Category:	Product Not in WEEE Scope
eClass:	V11.0 : 27142409
Object Classification Code:	U
