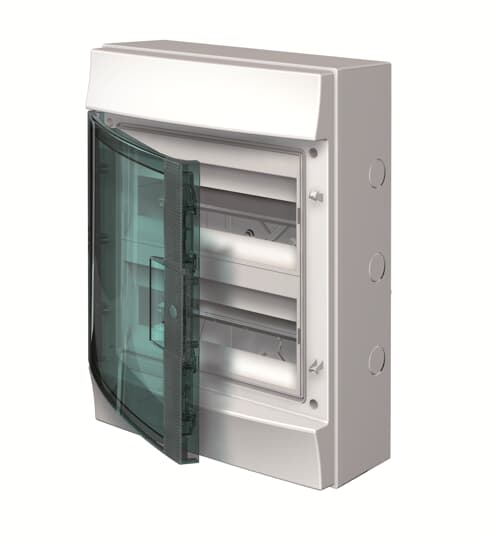

ABB 65P12X22Z Consumer Unit (with terminal bars) 1SLM006501A1204

MISTRAL65 transparent door 24M 22SM;MISTRAL65 transparent door 24M 22SM

Specifications

Technical
Power Loss:	34 W
Number of Line Terminals:	0
Number of Rows:	2
Cover Plate Type:	Door
Mounting Type:	Surface mounted (plaster)
Door Type:	Single
Enclosure Material:	thermoplastic
Housing Material:	Plastic
Transparent Door:	Yes
Cover Style:	with Notch
DIN Place Units:	24
RAL Number:	RAL 7035 - Light Grey
Color:	grey
Environmental
Degree of Protection:	IP65
Protection Class:	Isolated
Environmental Information:	1SLC801013D0201
Dimensions
Width in Number of Modular Spacings:	24
Product Net Width:	320.000 mm
Product Net Height:	155.000 mm
Product Net Depth / Length:	435.000 mm
Product Net Weight:	2.4 kg
Container Information
Package Level 1 Units:	box 4 piece
Package Level 1 Width:	400 mm
Package Level 1 Height:	510 mm
Package Level 1 Depth / Length:	610 mm
Package Level 1 Gross Weight:	10.625 kg
Package Level 1 EAN:	8000126107654
Ordering
Minimum Order Quantity:	1 piece
Customs Tariff Number:	85371098
Country of Origin:	Italy (IT)
Certificates and Declarations (Document Number)
Declaration of Conformity - CE:	No declaration needed
Environmental Information:	1SLC801013D0201
Instructions and Manuals:	No document needed
RoHS Information:	1SLT00003R2E0
Popular Downloads
Data Sheet, Technical Information:	1SLC801013D0201
Instructions and Manuals:	No document needed
Classifications
ETIM 7:	EC000214 - Small distribution board
ETIM 8:	EC000214 - Small distribution board
WEEE Category:	5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:	Business To Consumer
CN8:	85371099
eClass:	V11.0 : 27142409
Object Classification Code:	U
