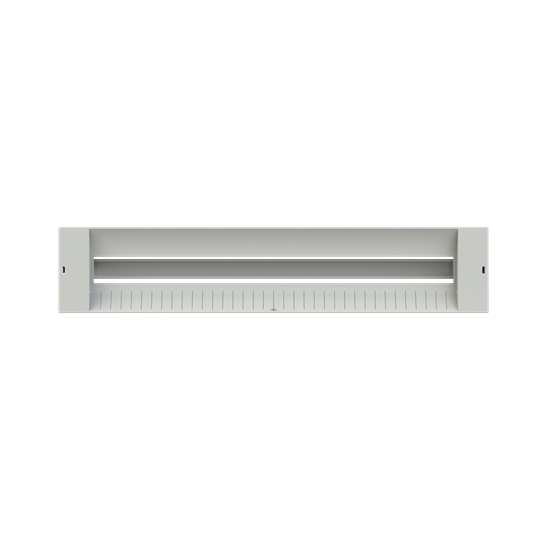

ABB GMA1SL0307A00 IP66 Insulating switchboards accessories 1SL0307A00

PANEL WITH HOLES H150 AND DIN-SIZE 1;PANEL WITH HOLES H150 AND DIN-SIZE 1

Specifications

Technical
Suitable For:	Gemini - BoxesGemini - Switchboards
Suitable for Product Class:	IP66 Insulating switchboards
Number of DIN Rails for Mounting:	1
Number of Modular Spacings per DIN Rail:	12
Accessory Type:	Drilled Panels
Cover Plate Type:	With notch
DIN Place Units:	12
RAL Number:	RAL 7035 - Light Grey
Color:	grey
Environmental
Degree of Protection:	IP40
Environmental Information:	1SLC805001D0907
Dimensions
Product Net Width:	250 mm
Product Net Height:	150 mm
Product Net Depth / Length:	19 mm
Product Net Weight:	0.345 kg
Size:	1
Container Information
Package Level 1 Units:	box 8 piece
Package Level 1 Width:	0.314 m
Package Level 1 Height:	0.236 m
Package Level 1 Depth / Length:	0.274 m
Package Level 1 Gross Weight:	2.76 kg
Package Level 1 EAN:	8000126217469
Ordering
Minimum Order Quantity:	1 piece
Customs Tariff Number:	85389099
Country of Origin:	Italy (IT)
Certificates and Declarations (Document Number)
Declaration of Conformity - CE:	No declaration needed
Environmental Information:	1SLC805001D0907
Instructions and Manuals:	9AKK107992A4361
RoHS Information:	1SLT00054R4E0
Popular Downloads
Data Sheet, Technical Information:	1SLC805001D0907
Instructions and Manuals:	9AKK107992A4361
Classifications
ETIM 7:	EC000264 - Panel for distribution board
ETIM 8:	EC000264 - Panel for distribution board
WEEE Category:	Product Not in WEEE Scope
eClass:	V11.0 : 27142411
Object Classification Code:	U
