ABB
Regular price
R 9,091.01 ZAR
Regular price
R 16,529.11 ZAR
Sale price
R 9,091.01 ZAR
Unit price
/
per
SKU:
Part Number:1SDA063411R1
Couldn't load pickup availability

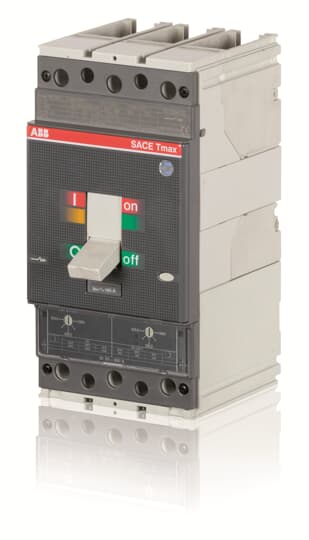

C.BREAKER TMAX T4V 250 1150V AC FIXED THREE-POLE WITH FRONT TERMINALS FOR CABLE Cu AND THERMOMAGNETIC RELEASE TMD R 50-500 A
Specifications
| Ordering |
| EAN: |
8015644660307 |
| Minimum Order Quantity: |
1 piece |
| Customs Tariff Number: |
85352100 |
| Dimensions |
| Product Net Width: |
105 mm |
| Product Net Height: |
205 mm |
| Product Net Depth / Length: |
103.5 mm |
| Product Net Weight: |
2.35 kg |
| Container Information |
| Package Level 1 Units: |
1 piece |
| Package Level 1 EAN: |
8015644660307 |
| Environmental |
| RoHS Status: |
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Additional Information |
| Number of Poles: |
3 |
| Power Loss: |
at Rated Operating Conditions per Pole 3.9 W |
| Product Main Type: |
SACE Tmax T |
| Product Name: |
Moulded Case Circuit Breaker |
| Product Type: |
CB |
| Rated Current (In): |
Main Circuit 50 A |
| Rated Operational Voltage: |
1150 V AC1000 V DC |
| Rated Service Short-Circuit Breaking Capacity (Ics): |
(1000 V AC) 12 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu): |
(415 V AC) 200 kA(1000 V AC) 20 kA |
| Rated Uninterrupted Current (Iu): |
250 A |
| Release: |
TMD |
| Release Type: |
TM |
| Short-Circuit Performance Level: |
V |
| Standards: |
IEC |
| Sub-type: |
T4 |
| Terminal Connection Type: |
Fixed Circuit-BreakersFront for Copper Cables |
| Version: |
F |
| Certificates and Declarations (Document Number) |
| Data Sheet, Technical Information: |
1SDC210300D0201 |
| Declaration of Conformity - CE: |
9AKK106713A5540 |
| Environmental Information: |
9AKK10103A1057 |
| GL Certificate: |
1SDL000163R0061 |
| Instructions and Manuals: |
3 |
| REACH Declaration: |
9AKK108466A1425 |
| RoHS Information: |
9AKK108466A1424 |
| Classifications |
| ETIM 4: |
EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 5: |
EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 6: |
EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 7: |
EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 8: |
EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code: |
Q |
| WEEE Category: |
5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass: |
V11.1 : 27370409 |
