ABB KIT HR/VR E1.2-XT7-XT7M F 4PCS 1SDA073990R1

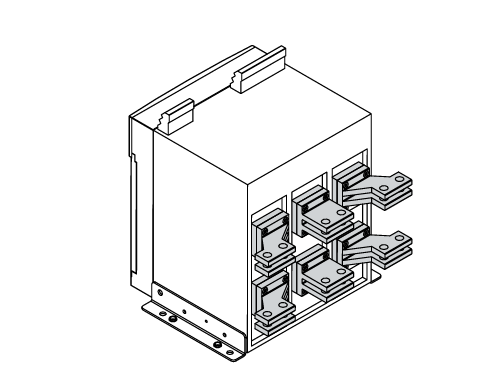

REAR TERMINALS HORIZONTAL/VERTICALES 4pcs FOR FIXED E1.2-XT7-XT7M

Specifications

Ordering
EAN:	8015644779238
Minimum Order Quantity:	1 piece
Customs Tariff Number:	85389099
Order Code US and Canada:	ZE1HRVRFE-4
Dimensions
Product Net Width:	160 mm
Product Net Height:	63 mm
Product Net Depth / Length:	268 mm
Product Net Weight:	1 kg
Container Information
Package Level 1 Units:	1 piece
Package Level 1 Width:	160 mm
Package Level 1 Height:	63 mm
Package Level 1 Depth / Length:	268 mm
Package Level 1 Gross Weight:	1.19 kg
Package Level 1 EAN:	8015644779238
Environmental
RoHS Status:	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Additional Information
Configuration Type:	Loose or configurable
Number of Poles:	4
Order Multiple:	1 piece
Product Main Type:	Accessories for Emax 2, Accessories for Tmax XT
Product Name:	Accessory
Product Type:	Accessory
Standards:	IEC
Suitable For:	XT7-XT7M, E1.2
Suitable for Product Class:	SACE Tmax XT, SACE Emax 2
Certificates and Declarations (Document Number)
Data Sheet, Technical Information:	1SDC200023D02091SDC210100D0204
Declaration of Conformity - CE:	Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals:	1SDH000999R0802
REACH Declaration:	9AKK108466A1425
RoHS Information:	9AKK108466A1424
Classifications
ETIM 6:	EC002019 - Connection vane/phase spreader
ETIM 7:	EC002019 - Connection vane/phase spreader
ETIM 8:	EC002019 - Connection vane/phase spreader
Object Classification Code:	Q
WEEE Category:	5. Small Equipment (No External Dimension More Than 50 cm)
