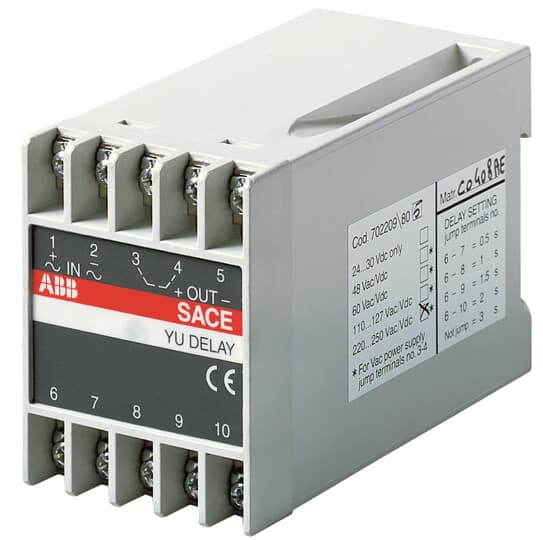

ABB UVD 24/30VE1/6-T7-X1-T8-E1.2/6.2-XT7/M 1SDA038316R1

ELECTRONIC TIME DELAY 24/30V DC/AC E1/6-T7-T7M-X1-T8-E1.2/6.2-XT7-XT7M

Specifications

Ordering
EAN:	8015644383169
Minimum Order Quantity:	1 piece
Customs Tariff Number:	85389099
Order Code US and Canada:	KE6TL9
Dimensions
Product Net Width:	150 mm
Product Net Height:	60 mm
Product Net Depth / Length:	200 mm
Product Net Weight:	0.263 kg
Container Information
Package Level 1 Units:	1 piece
Package Level 1 Width:	150 mm
Package Level 1 Height:	60 mm
Package Level 1 Depth / Length:	200 mm
Package Level 1 Gross Weight:	0.263 kg
Package Level 1 EAN:	8015644383169
Environmental
RoHS Status:	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Additional Information
Configuration Type:	Loose or configurable
Current Type:	AC/DC
Order Multiple:	1 piece
Product Main Type:	Accessories for Emax 2, Accessories for Tmax XT
Product Name:	Accessory
Product Type:	Accessory
Rated Voltage (Ur):	24 ... 30 V
Standards:	IEC
Suitable For:	XT7-XT7M, E1.2, E2.2, E4.2, E6.2, E1, E2, E3, E4, E6, X1, T7, T8
Suitable for Product Class:	SACE Tmax XT, SACE Emax 2, SACE Emax, SACE Tmax T
Certificates and Declarations (Document Number)
Data Sheet, Technical Information:	1SDC210015D02081SDC210300D0201
Declaration of Conformity - CE:	Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals:	1SDH000460R0616
REACH Declaration:	9AKK108466A1425
RoHS Information:	9AKK108466A1424
Classifications
ETIM 6:	EC002052 - Time delay under voltage coil
ETIM 7:	EC002052 - Time delay under voltage coil
ETIM 8:	EC002052 - Time delay under voltage coil
Object Classification Code:	Q
WEEE Category:	5. Small Equipment (No External Dimension More Than 50 cm)
