ABB

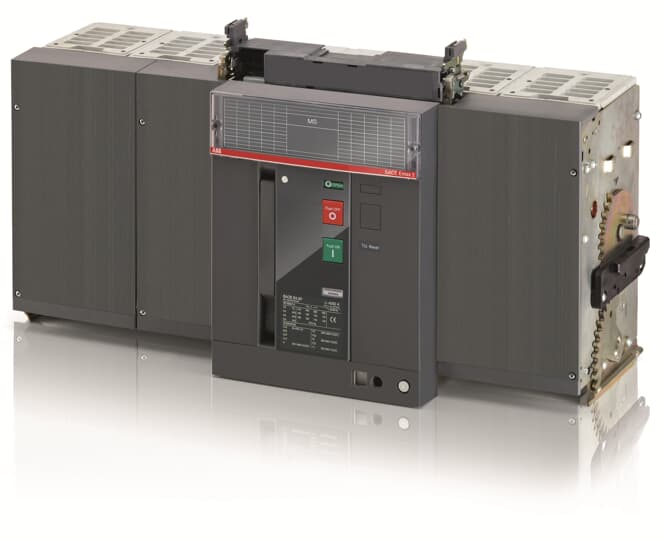

ABB E6.2X/MS 6300 3p WMP 1SDA073513R1
ABB E6.2X/MS 6300 3p WMP 1SDA073513R1
Regular price
R 390,338.73 ZAR
Regular price
R 730,997.99 ZAR
Sale price
R 390,338.73 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
MOVING PART FOR C.BREAKER SWITCH-DISCONNECTOR SACE EMAX2 E6.2X/MS 6300 THREE-POLE
Specifications
| Ordering | |
|---|---|
| EAN: | 8015644773632 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85362090 |
| Dimensions | |
| Product Net Width: | 803 mm |
| Product Net Height: | 425 mm |
| Product Net Depth / Length: | 383 mm |
| Product Net Weight: | 120 kg |
| Container Information | |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 515 mm |
| Package Level 1 Height: | 610 mm |
| Package Level 1 Depth / Length: | 1000 mm |
| Package Level 1 Gross Weight: | 129 kg |
| Package Level 1 EAN: | 8015644773632 |
| Environmental | |
| RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Additional Information | |
| Current Type: | AC |
| Electrical Durability: | Ue =< 440 V 2000 cycleUe = 500 ... 690 V 2000 cycle10 cycles per hour |
| Mechanical Durability: | 12000 cycle60 cycles per hour |
| Number of Poles: | 3 |
| Power Loss: | 1550 W |
| Product Main Type: | SACE Emax 2 |
| Product Name: | Switch Disconnector |
| Product Type: | Switch Disconnector |
| Rated Current (In): | 6300 A |
| Rated Voltage (Ur): | 690 V |
| Rated Impulse Withstand Voltage (Uimp): | 12 kV |
| Rated Insulation Voltage (Ui): | AC 1000 V |
| Rated Operational Voltage: | 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw): | for 1 s 120 kAfor 3 s 100 kA |
| Rated Uninterrupted Current (Iu): | 6300 A |
| Short-Circuit Performance Level: | X |
| Standards: | IEC |
| Sub-type: | E6.2 |
| Version: | W |
| Certificates and Declarations (Document Number) | |
| Data Sheet, Technical Information: | 1SDC200023D0209 |
| Declaration of Conformity - CE: | 9AKK106713A5544 |
| Environmental Information: | 9AKK10103A1038 |
| Instructions and Manuals: | 1SDH001000R0002 |
| REACH Declaration: | 9AKK108466A1425 |
| RoHS Information: | 9AKK108466A1424 |
| Classifications | |
| ETIM 4: | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 5: | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 6: | EC000216 - Switch disconnector |
| ETIM 7: | EC000216 - Switch disconnector |
| ETIM 8: | EC000216 - Switch disconnector |
| Object Classification Code: | Q |
| WEEE Category: | 4. Large Equipment (Any External Dimension More Than 50 cm) |
