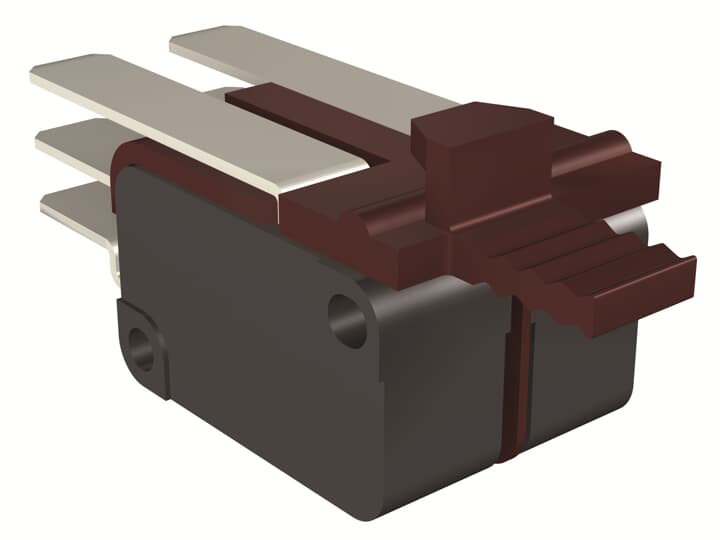

ABB AUX 4Q 24VDC E1.2-XT7-XT7M 1SDA073751R1

4 CHANGEOVER CONTACT OPEN-CLOSED V < 24V DC E1.2-XT7-XT7M

Specifications

Ordering
EAN:	8015644776848
Minimum Order Quantity:	1 piece
Customs Tariff Number:	85389099
Order Code US and Canada:	ZE1AUX4D
Dimensions
Product Net Width:	220 mm
Product Net Height:	40 mm
Product Net Depth / Length:	500 mm
Product Net Weight:	0.223 kg
Container Information
Package Level 1 Units:	1 piece
Package Level 1 Width:	220 mm
Package Level 1 Height:	40 mm
Package Level 1 Depth / Length:	500 mm
Package Level 1 Gross Weight:	0.223 kg
Package Level 1 EAN:	8015644776848
Environmental
RoHS Status:	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Additional Information
Configuration Type:	Loose or configurable
Number of Auxiliary Contacts CO (SPDT):	4
Order Multiple:	1 piece
Product Main Type:	Accessories for Emax 2, Accessories for Tmax XT
Product Name:	Accessory
Product Type:	Accessory
Standards:	IEC
Suitable For:	XT7-XT7M, E1.2
Suitable for Product Class:	SACE Tmax XT, SACE Emax 2
Certificates and Declarations (Document Number)
Data Sheet, Technical Information:	1SDC200023D02091SDC210100D0204
Declaration of Conformity - CE:	Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals:	1SDH000999R0601
REACH Declaration:	9AKK108466A1425
RoHS Information:	9AKK108466A1424
Classifications
ETIM 6:	EC000041 - Auxiliary contact block
ETIM 7:	EC000041 - Auxiliary contact block
ETIM 8:	EC000041 - Auxiliary contact block
Object Classification Code:	Q
WEEE Category:	5. Small Equipment (No External Dimension More Than 50 cm)
