ABB

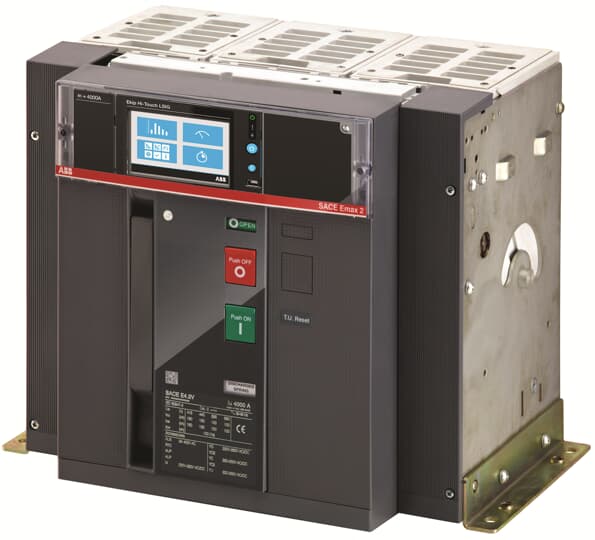

ABB E4.2H 4000 Ekip Touch LI 3p F HR 1SDA071214R1
ABB E4.2H 4000 Ekip Touch LI 3p F HR 1SDA071214R1
Regular price
R 95,565.99 ZAR
Regular price
R 178,969.03 ZAR
Sale price
R 95,565.99 ZAR
Unit price
/
per
Shipping calculated at checkout.
Pickup available at 31 Cardiff Avenue, Apex, Benoni, Gauteng, 1540, South Africa
Usually ready in 24 hours
C.BREAKER SACE EMAX2 E4.2H 4000 FIXED THREE-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/TOUCH-LI R 4000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
Specifications
| Ordering | |
|---|---|
| EAN: | 8015644750640 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85362090 |
| Order Code US and Canada: | Z4HWERBD000A000000XX |
| Dimensions | |
| Product Net Width: | 384 mm |
| Product Net Height: | 371 mm |
| Product Net Depth / Length: | 270 mm |
| Product Net Weight: | 56 kg |
| Container Information | |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 515 mm |
| Package Level 1 Height: | 610 mm |
| Package Level 1 Depth / Length: | 615 mm |
| Package Level 1 Gross Weight: | 63 kg |
| Package Level 1 EAN: | 8015644750640 |
| Environmental | |
| RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Additional Information | |
| Current Type: | AC |
| Electrical Durability: | Ue =< 440 V 5000 cycleUe = 500 ... 690 V 4000 cycle20 cycles per hour |
| Mechanical Durability: | 15000 cycle60 cycles per hour |
| Number of Poles: | 3 |
| Power Loss: | 465 W |
| Product Main Type: | SACE Emax 2 |
| Product Name: | Air Circuit Breaker |
| Product Type: | Air Circuit Breaker |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics): | 100 % |
| Rated Current (In): | 4000 A |
| Rated Voltage (Ur): | 690 V |
| Rated Impulse Withstand Voltage (Uimp): | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui): | AC 1000 V |
| Rated Operational Voltage: | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics): | (220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 100 kA(400 V AC) 100 kA(415 V AC) 100 kA(440 V AC) 100 kA(500 V AC) 85 kA(660 V AC) 85 kA(690 V AC) 85 kA |
| Rated Short-time Withstand Current Low Voltage (Icw): | for 1 s 85 kAfor 3 s 75 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu): | (400 V AC) 100 kA(415 V AC) 100 kA(440 V AC) 100 kA(500 V AC) 85 kA(525 V AC) 85 kA(690 V AC) 85 kA |
| Rated Uninterrupted Current (Iu): | 4000 A |
| Release: | Ekip Touch LI |
| Release Type: | EL |
| Short-Circuit Performance Level: | H |
| Standards: | IEC |
| Sub-type: | E4.2 |
| Terminal Connection Type: | Rear flat Horizontal |
| Version: | F |
| Certificates and Declarations (Document Number) | |
| Data Sheet, Technical Information: | 1SDC200023D0209 |
| Declaration of Conformity - CE: | 9AKK106713A5545 |
| Environmental Information: | 9AKK10103A1038 |
| Instructions and Manuals: | 1SDH001000R0002 |
| Instructions and Manuals (Part 2): | 1SDH001316R1002 |
| REACH Declaration: | 9AKK108466A1425 |
| RoHS Information: | 9AKK108466A1424 |
| Classifications | |
| ETIM 4: | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 5: | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 6: | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 7: | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 8: | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code: | Q |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
