ABB
Regular price
R 251,685.36 ZAR
Regular price
R 457,609.74 ZAR
Sale price
R 251,685.36 ZAR
Unit price
/
per
SKU:
Part Number:1SDA073555R1
Couldn't load pickup availability

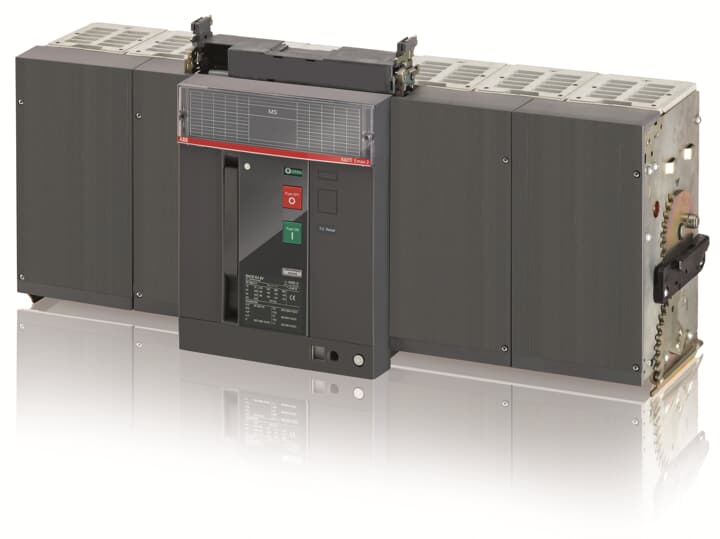

MOVING PART FOR C.BREAKER SWITCH-DISCONNECTOR SACE EMAX2 E6.2H/f/MS 5000 FOUR-POLE FULL SIZE NEUTRAL
Specifications
| Ordering |
| EAN: |
8015644774059 |
| Minimum Order Quantity: |
1 piece |
| Customs Tariff Number: |
85362090 |
| Order Code US and Canada: |
ZEHX00A00000000000XX |
| Dimensions |
| Product Net Width: |
1069 mm |
| Product Net Height: |
425 mm |
| Product Net Depth / Length: |
383 mm |
| Product Net Weight: |
148 kg |
| Container Information |
| Package Level 1 Units: |
1 piece |
| Package Level 1 Width: |
515 mm |
| Package Level 1 Height: |
610 mm |
| Package Level 1 Depth / Length: |
1257 mm |
| Package Level 1 Gross Weight: |
159 kg |
| Package Level 1 EAN: |
8015644774059 |
| Environmental |
| RoHS Status: |
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Additional Information |
| Current Type: |
AC |
| Electrical Durability: |
Ue =< 440 V 3000 cycleUe = 500 ... 690 V 2000 cycle10 cycles per hour |
| Mechanical Durability: |
12000 cycle60 cycles per hour |
| Neutral Pole Current ([%Iu]): |
100 % |
| Number of Poles: |
4 / f |
| Power Loss: |
850 W |
| Product Main Type: |
SACE Emax 2 |
| Product Name: |
Switch Disconnector |
| Product Type: |
Switch Disconnector |
| Rated Current (In): |
5000 A |
| Rated Voltage (Ur): |
690 V |
| Rated Impulse Withstand Voltage (Uimp): |
12 kV |
| Rated Insulation Voltage (Ui): |
AC 1000 V |
| Rated Operational Voltage: |
690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw): |
for 1 s 100 kAfor 3 s 100 kA |
| Rated Uninterrupted Current (Iu): |
5000 A |
| Short-Circuit Performance Level: |
H |
| Standards: |
IEC |
| Sub-type: |
E6.2 |
| Version: |
W |
| Certificates and Declarations (Document Number) |
| Data Sheet, Technical Information: |
1SDC200023D0209 |
| Declaration of Conformity - CE: |
9AKK106713A5544 |
| Environmental Information: |
9AKK10103A1038 |
| Instructions and Manuals: |
1SDH001000R0002 |
| REACH Declaration: |
9AKK108466A1425 |
| RoHS Information: |
9AKK108466A1424 |
| Classifications |
| ETIM 4: |
EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 5: |
EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 6: |
EC000216 - Switch disconnector |
| ETIM 7: |
EC000216 - Switch disconnector |
| ETIM 8: |
EC000216 - Switch disconnector |
| Object Classification Code: |
Q |
| WEEE Category: |
4. Large Equipment (Any External Dimension More Than 50 cm) |
