ABB

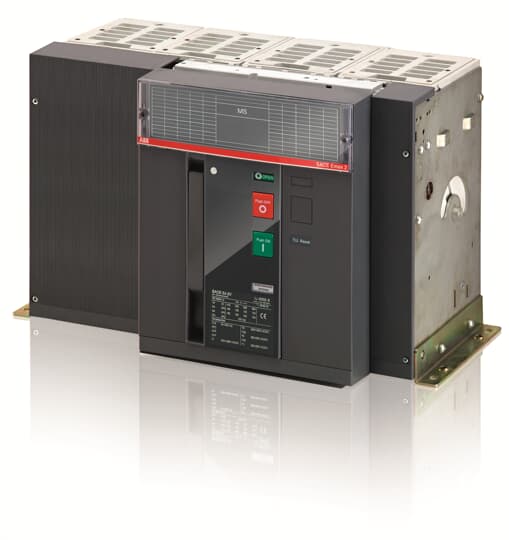

ABB E4.2V/MS 4000 4p F HR 1SDA073462R1
ABB E4.2V/MS 4000 4p F HR 1SDA073462R1
Regular price
R 168,808.47 ZAR
Regular price
R 316,132.23 ZAR
Sale price
R 168,808.47 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
C.BREAKER SWITCH-DISCONNECTOR SACE EMAX2 E4.2V/MS 4000 FIXED FOUR-POLE WITH TERMINALS REAR HORIZONTAL
Specifications
| Ordering | |
|---|---|
| EAN: | 8015644773120 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85362090 |
| Order Code US and Canada: | ZCVW00B00000000000XX |
| Dimensions | |
| Product Net Width: | 510 mm |
| Product Net Height: | 371 mm |
| Product Net Depth / Length: | 270 mm |
| Product Net Weight: | 70 kg |
| Container Information | |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 515 mm |
| Package Level 1 Height: | 610 mm |
| Package Level 1 Depth / Length: | 785 mm |
| Package Level 1 Gross Weight: | 77 kg |
| Package Level 1 EAN: | 8015644773120 |
| Environmental | |
| RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Additional Information | |
| Current Type: | AC |
| Electrical Durability: | Ue =< 440 V 5000 cycleUe = 500 ... 690 V 4000 cycle20 cycles per hour |
| Mechanical Durability: | 15000 cycle60 cycles per hour |
| Neutral Pole Current ([%Iu]): | 100 % |
| Number of Poles: | 4 |
| Power Loss: | 465 W |
| Product Main Type: | SACE Emax 2 |
| Product Name: | Switch Disconnector |
| Product Type: | Switch Disconnector |
| Rated Current (In): | 4000 A |
| Rated Voltage (Ur): | 690 V |
| Rated Impulse Withstand Voltage (Uimp): | 12 kV |
| Rated Insulation Voltage (Ui): | AC 1000 V |
| Rated Operational Voltage: | 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw): | for 1 s 100 kAfor 3 s 75 kA |
| Rated Uninterrupted Current (Iu): | 4000 A |
| Short-Circuit Performance Level: | V |
| Standards: | IEC |
| Sub-type: | E4.2 |
| Terminal Connection Type: | Rear flat Horizontal |
| Version: | F |
| Certificates and Declarations (Document Number) | |
| Data Sheet, Technical Information: | 1SDC200023D0209 |
| Declaration of Conformity - CE: | 9AKK106713A5545 |
| Environmental Information: | 9AKK10103A1038 |
| Instructions and Manuals: | 1SDH001000R0002 |
| REACH Declaration: | 9AKK108466A1425 |
| RoHS Information: | 9AKK108466A1424 |
| Classifications | |
| ETIM 4: | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 5: | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 6: | EC000216 - Switch disconnector |
| ETIM 7: | EC000216 - Switch disconnector |
| ETIM 8: | EC000216 - Switch disconnector |
| Object Classification Code: | Q |
| WEEE Category: | 4. Large Equipment (Any External Dimension More Than 50 cm) |
