ABB E1.2 W FP Iu=1600 4p HR HR 1SDA073908R1

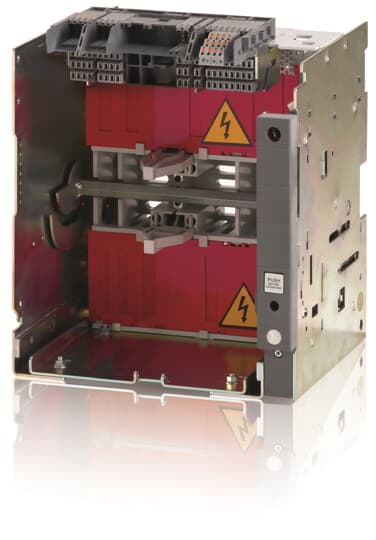

FIXED PART WITHDRAWABLE FOR C.BREAKER SACE EMAX2 E1.2 1600 FOUR-POLE WITH REAR HORIZONTAL TERMINALS

Specifications

Ordering
EAN:	8015644778415
Minimum Order Quantity:	1 piece
Customs Tariff Number:	85389099
Order Code US and Canada:	ZAC16A0XX
Dimensions
Product Net Width:	348 mm
Product Net Height:	363.5 mm
Product Net Depth / Length:	271 mm
Product Net Weight:	23 kg
Container Information
Package Level 1 Units:	1 piece
Package Level 1 Width:	375 mm
Package Level 1 Height:	330 mm
Package Level 1 Depth / Length:	388 mm
Package Level 1 Gross Weight:	26 kg
Package Level 1 EAN:	8015644778415
Environmental
RoHS Status:	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Additional Information
Current Type:	AC
Neutral Pole Current ([%Iu]):	100 %
Number of Poles:	4
Product Main Type:	SACE Emax 2
Product Name:	Fixed Part
Product Type:	Fixed Part
Rated Current (In):	1600 A
Rated Voltage (Ur):	690 V
Rated Impulse Withstand Voltage (Uimp):	acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui):	AC 1000 V
Rated Operational Voltage:	690 V AC
Rated Uninterrupted Current (Iu):	1600 A
Standards:	IEC
Sub-type:	E1.2
Terminal Connection Type:	Rear flat Horizontal
Version:	W FP
Certificates and Declarations (Document Number)
Data Sheet, Technical Information:	1SDC200023D0209
Declaration of Conformity - CE:	9AKK106713A5546
Environmental Information:	Not Available
Instructions and Manuals:	1SDH000999R0820
REACH Declaration:	9AKK108466A1425
RoHS Information:	9AKK108466A1424
Classifications
ETIM 4:	EC000228 - Power circuit-breaker for trafo/generator/installation prot.
ETIM 5:	EC000228 - Power circuit-breaker for trafo/generator/installation prot.
ETIM 6:	EC002043 - Chassis part power circuit breaker
ETIM 7:	EC002043 - Chassis part power circuit breaker
ETIM 8:	EC002043 - Chassis part power circuit breaker
Object Classification Code:	Q
WEEE Category:	5. Small Equipment (No External Dimension More Than 50 cm)
