ABB

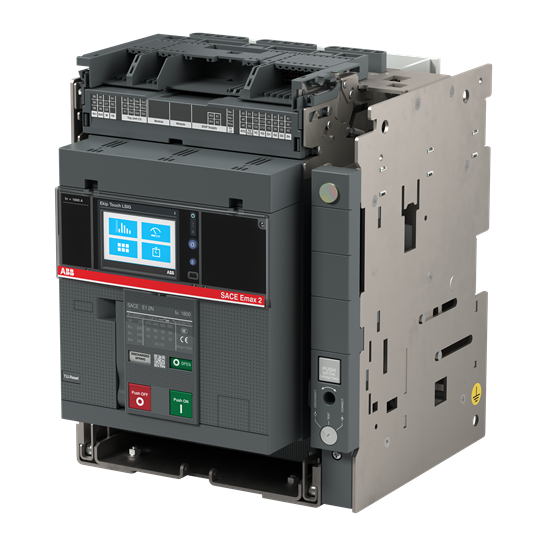

ABB E1.2N 1250 Ekip Touch LSIG 3p WMP 1SDA072196R1
ABB E1.2N 1250 Ekip Touch LSIG 3p WMP 1SDA072196R1
Regular price
R 42,829.36 ZAR
Regular price
R 80,207.71 ZAR
Sale price
R 42,829.36 ZAR
Unit price
/
per
Shipping calculated at checkout.
Pickup available at 31 Cardiff Avenue, Apex, Benoni, Gauteng, 1540, South Africa
Usually ready in 24 hours
MOVING PART FOR C.BREAKER SACE EMAX2 E1.2N 1250 THREE-POLE WITH SOLID-STATE RELEASE IN AC EKIP/TOUCH-LSIG R 1250 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
Specifications
| Ordering | |
|---|---|
| EAN: | 8015644760465 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85362090 |
| Order Code US and Canada: | Z1NREHAF000A000000XX |
| Dimensions | |
| Product Net Width: | 278 mm |
| Product Net Height: | 363.5 mm |
| Product Net Depth / Length: | 271 mm |
| Product Net Weight: | 18 kg |
| Container Information | |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 270 mm |
| Package Level 1 Height: | 350 mm |
| Package Level 1 Depth / Length: | 330 mm |
| Package Level 1 Gross Weight: | 20 kg |
| Package Level 1 EAN: | 8015644760465 |
| Environmental | |
| RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Additional Information | |
| Current Type: | AC |
| Electrical Durability: | Ue =< 440 V 8000 cycleUe = 500 ... 690 V 6500 cycle30 cycles per hour |
| Mechanical Durability: | 20000 cycle60 cycles per hour |
| Number of Poles: | 3 |
| Power Loss: | 244 W |
| Product Main Type: | SACE Emax 2 |
| Product Name: | Air Circuit Breaker |
| Product Type: | Air Circuit Breaker |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics): | 100 % |
| Rated Current (In): | 1250 A |
| Rated Voltage (Ur): | 690 V |
| Rated Impulse Withstand Voltage (Uimp): | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui): | AC 1000 V |
| Rated Operational Voltage: | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics): | (220 V AC) 66 kA(230 V AC) 66 kA(380 V AC) 66 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 50 kA(660 V AC) 50 kA(690 V AC) 50 kA |
| Rated Short-time Withstand Current Low Voltage (Icw): | for 1 s 50 kAfor 3 s 30 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu): | (400 V AC) 66 kA(415 V AC) 66 kA(440 V AC) 66 kA(500 V AC) 50 kA(525 V AC) 50 kA(690 V AC) 50 kA |
| Rated Uninterrupted Current (Iu): | 1250 A |
| Release: | Ekip Touch LSIG |
| Release Type: | EL |
| Short-Circuit Performance Level: | N |
| Standards: | IEC |
| Sub-type: | E1.2 |
| Version: | W |
| Certificates and Declarations (Document Number) | |
| Data Sheet, Technical Information: | 1SDC200023D0209 |
| Declaration of Conformity - CE: | 9AKK106713A5546 |
| Environmental Information: | 9AKK10103A1038 |
| Instructions and Manuals: | 1SDH000999R0002 |
| Instructions and Manuals (Part 2): | 1SDH001316R1002 |
| REACH Declaration: | 9AKK108466A1425 |
| RoHS Information: | 9AKK108466A1424 |
| Classifications | |
| ETIM 4: | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 5: | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 6: | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 7: | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 8: | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code: | Q |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
