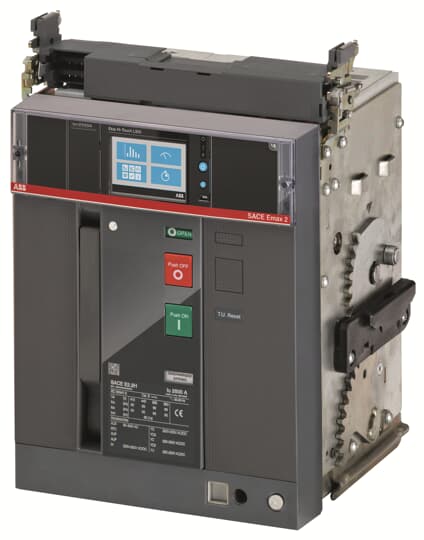

ABB E2.2N 800 Ekip Touch LSI 3p WMP 1SDA072245R1
ABB E2.2N 800 Ekip Touch LSI 3p WMP 1SDA072245R1
Regular price
R 39,144.14 ZAR
Regular price
R 73,306.29 ZAR
Sale price
R 39,144.14 ZAR
Unit price
/
per
Shipping calculated at checkout.
Pickup available at 31 Cardiff Avenue, Apex, Benoni, Gauteng, 1540, South Africa
Usually ready in 24 hours
MOVING PART FOR C.BREAKER SACE EMAX2 E2.2N 800 THREE-POLE WITH SOLID-STATE RELEASE IN AC EKIP/TOUCH-LSI R 800 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
Specifications
| Ordering | |
|---|---|
| EAN: | 8015644760953 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85362090 |
| Order Code US and Canada: | Z2NPEFAE000A000000XX |
| Dimensions | |
| Product Net Width: | 317 mm |
| Product Net Height: | 425 mm |
| Product Net Depth / Length: | 383 mm |
| Product Net Weight: | 48 kg |
| Container Information | |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 515 mm |
| Package Level 1 Height: | 610 mm |
| Package Level 1 Depth / Length: | 515 mm |
| Package Level 1 Gross Weight: | 53 kg |
| Package Level 1 EAN: | 8015644760953 |
| Environmental | |
| RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Additional Information | |
| Current Type: | AC |
| Electrical Durability: | Ue =< 440 V 15000 cycleUe = 500 ... 690 V 15000 cycle30 cycles per hour |
| Mechanical Durability: | 25000 cycle60 cycles per hour |
| Number of Poles: | 3 |
| Power Loss: | 72 W |
| Product Main Type: | SACE Emax 2 |
| Product Name: | Air Circuit Breaker |
| Product Type: | Air Circuit Breaker |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics): | 100 % |
| Rated Current (In): | 800 A |
| Rated Voltage (Ur): | 690 V |
| Rated Impulse Withstand Voltage (Uimp): | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui): | AC 1000 V |
| Rated Operational Voltage: | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics): | (220 V AC) 66 kA(230 V AC) 66 kA(380 V AC) 66 kA(400 V AC) 66 kA(415 V AC) 66 kA(440 V AC) 66 kA(500 V AC) 66 kA(660 V AC) 66 kA(690 V AC) 66 kA |
| Rated Short-time Withstand Current Low Voltage (Icw): | for 1 s 66 kAfor 3 s 50 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu): | (400 V AC) 66 kA(415 V AC) 66 kA(440 V AC) 66 kA(500 V AC) 66 kA(525 V AC) 66 kA(690 V AC) 66 kA |
| Rated Uninterrupted Current (Iu): | 800 A |
| Release: | Ekip Touch LSI |
| Release Type: | EL |
| Short-Circuit Performance Level: | N |
| Standards: | IEC |
| Sub-type: | E2.2 |
| Version: | W |
| Certificates and Declarations (Document Number) | |
| Data Sheet, Technical Information: | 1SDC200023D0209 |
| Declaration of Conformity - CE: | 9AKK106713A5902 |
| Environmental Information: | 9AKK10103A1038 |
| Instructions and Manuals: | 1SDH001000R0002 |
| Instructions and Manuals (Part 2): | 1SDH001316R1002 |
| REACH Declaration: | 9AKK108466A1425 |
| RoHS Information: | 9AKK108466A1424 |
| Classifications | |
| ETIM 4: | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 5: | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 6: | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 7: | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 8: | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code: | Q |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
