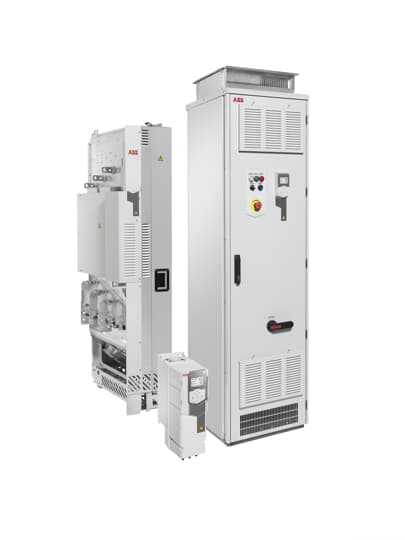

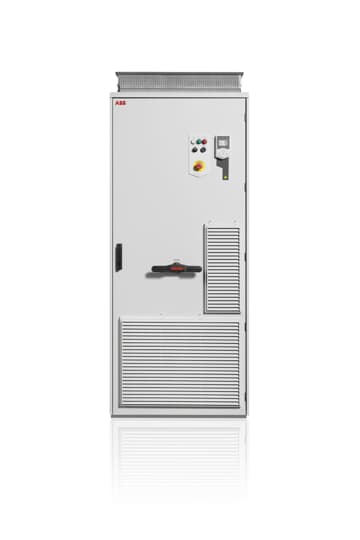

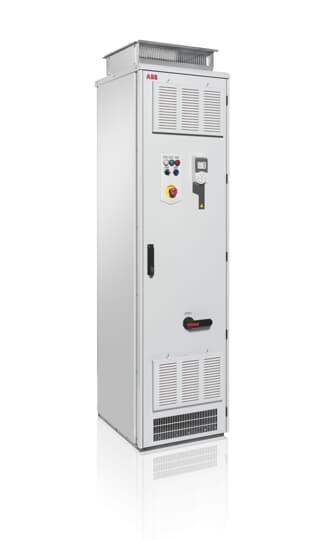

The ACS580-07 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture.All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. Versatile and straightforward settings menu and assistants enable fast setup, commissioning, use and maintenance, while rugged and robust design makes it a good fit for various environments. With the ACS580 drives you can easily take full control of your processes to comprehensively manage your plant. The ready-made standalone cabinet-built ACS580-07 variant comes in IP21 as standard. Also, IP42 and IP54 units are available.
Specifications
Ordering
Country of Origin:
Finland (FI)Estonia (EE)
Customs Tariff Number:
85044084
Invoice Description:
ACS580-07-0169A-4 PN: 90 kW, IN: 169 A
Made To Order:
Yes
Minimum Order Quantity:
1 piece
Order Multiple:
1 piece
Quote Only:
No
Selling Unit of Measure:
piece
Container Information
Gross Volume:
620.742 dm³
Dimensions
Product Net Weight:
220 kg
Product Net Depth / Length:
673 mm
Product Net Height:
2145 mm
Product Net Width:
540 mm
Package Level 1 Depth / Length:
2520 mm
Package Level 1 Height:
900 mm
Package Level 1 Width:
820 mm
Technical
Number of Phases:
3
Degree of Protection:
IP21
Enclosure Type NEMA:
Type1
Sound dB (A):
67 dB(A)
Frequency (f):
50/60 Hz
Input Voltage (Uin):
380 ... 480 V
Mounting Type:
Cabinet-built
Output Current, Heavy-Duty Use:
145 A
Output Current, Light-Overload Use:
161 A
Output Current, Normal Use:
169 A
Output Power, Heavy-Duty Use:
75 kW
Output Power, Light-Overload Use:
90 kW
Output Power, Normal Use:
90 kW
Ecodesign Exemption:
Energy efficiency data is not provided for this cabinet-based drive. Cabinet built drives, with already conform modules, are excluded from the scope of the EU ecodesign requirements (Regulation EU/2019/1781, §2.3.e).
Additional Information
Product Main Type:
ACS580-07
Product Name:
Frequency converter
Classifications
UNSPSC:
39122001
Environmental
SCIP:
f8697513-3243-4f24-9777-7dbe1d791662 Finland (FI)
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
