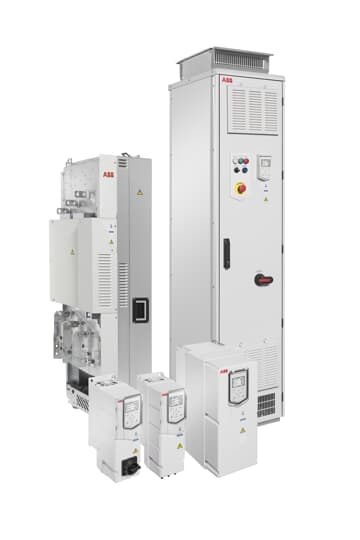

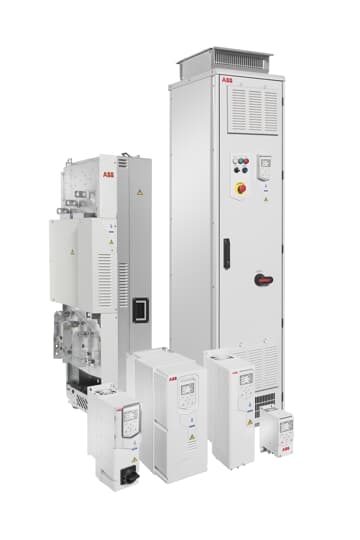

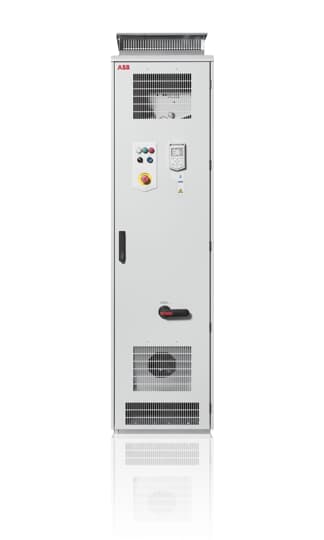

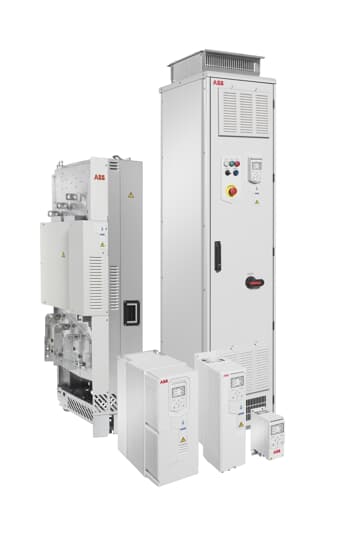

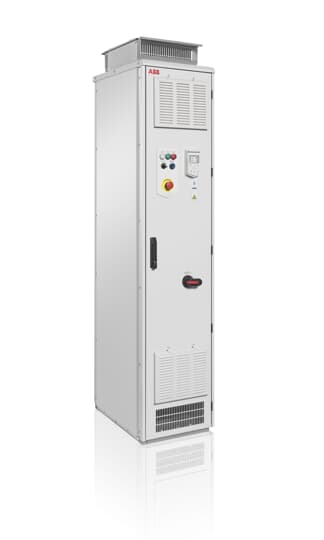

ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time, and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth® capability enables the commissioning and monitoring of the drive from a distance. The ready-made standalone cabinet-built ACH580-07 variant comes in IP21 as standard. Also, IP42 and IP54 units are available.
Specifications
Ordering
Country of Origin:
Finland (FI)Estonia (EE)
Customs Tariff Number:
85044084
Invoice Description:

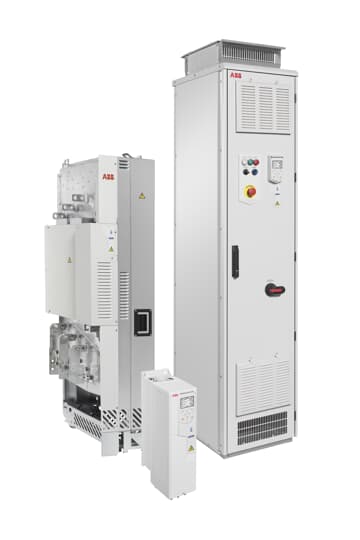

ACH580-07-0246A-4 PN: 132 kW, IN: 246 A
Made To Order:
Yes
Minimum Order Quantity:
1 piece
Order Multiple:
1 piece
Quote Only:
No
Selling Unit of Measure:
piece
Container Information
Gross Volume:
923.894 dm³
Dimensions
Product Net Weight:
255 kg
Product Net Depth / Length:
673 mm
Product Net Height:
2145 mm
Product Net Width:
640 mm
Package Level 1 Depth / Length:
2520 mm
Package Level 1 Height:
900 mm
Package Level 1 Width:
820 mm
Technical
Number of Phases:
3
Degree of Protection:
IP21
Enclosure Type NEMA:
Type1
Sound dB (A):
65 dB(A)
Frequency (f):
50/60 Hz
Input Voltage (Uin):
380 ... 480 V
Mounting Type:
Cabinet-built
Output Current, Heavy-Duty Use:
206 A
Output Current, Light-Overload Use:
234 A
Output Current, Normal Use:
246 A
Output Power, Heavy-Duty Use:
110 kW
Output Power, Light-Overload Use:
132 kW
Output Power, Normal Use:
132 kW
Ecodesign Exemption:
Energy efficiency data is not provided for this cabinet-based drive. Cabinet built drives, with already conform modules, are excluded from the scope of the EU ecodesign requirements (Regulation EU/2019/1781, §2.3.e).
Additional Information
Product Main Type:
ACH580-07
Product Name:
Frequency converter
Classifications
UNSPSC:
39122001
Environmental
SCIP:
182c528b-29d6-4b33-89d3-2ec8b482ca1d Finland (FI)
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
