ABB ACH580-07-0505A-4
ABB ACH580-07-0505A-4
Regular price
R 0.00 ZAR
Regular price
R 0.00 ZAR
Sale price
R 0.00 ZAR
Unit price
/
per

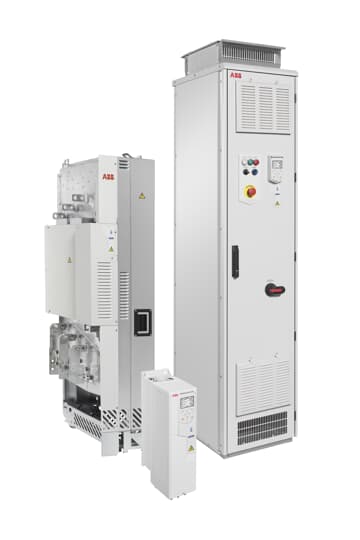

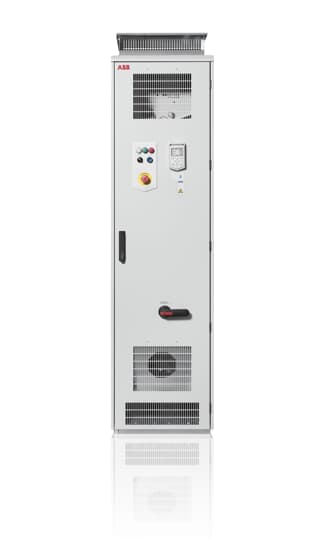

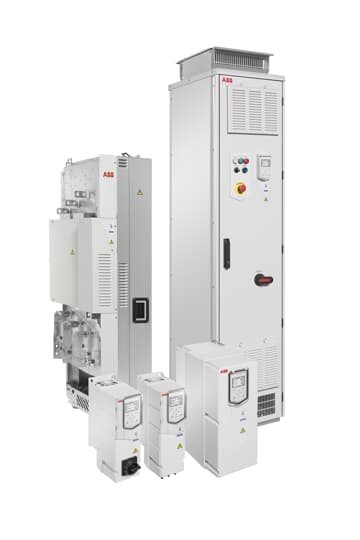

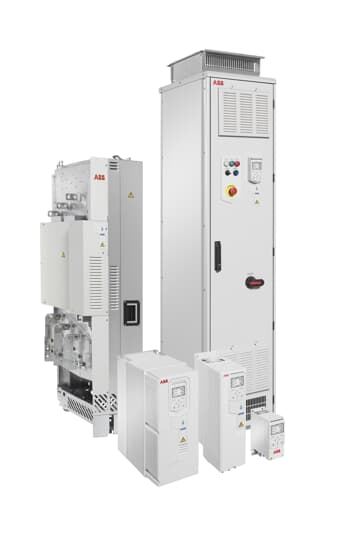

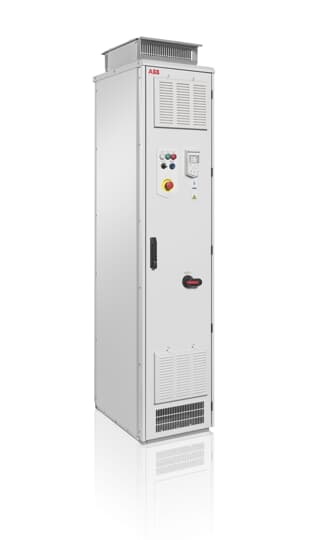

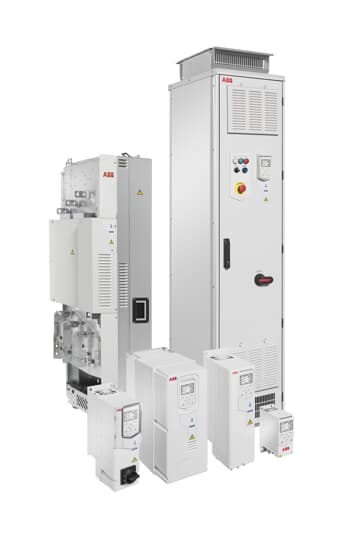

ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time, and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth® capability enables the commissioning and monitoring of the drive from a distance. The ready-made standalone cabinet-built ACH580-07 variant comes in IP21 as standard. Also, IP42 and IP54 units are available.
Specifications
Ordering | |
---|---|
Country of Origin: | Finland (FI)Estonia (EE) |
Customs Tariff Number: | 85044084 |
Invoice Description: | ACH580-07-0505A-4 PN: 250 kW, IN: 505 A |
Made To Order: | Yes |
Minimum Order Quantity: | 1 piece |
Order Multiple: | 1 piece |
Quote Only: | No |
Selling Unit of Measure: | piece |
Container Information | |
Gross Volume: | 1.559 m³ |
Dimensions | |
Product Net Weight: | 410 kg |
Product Net Depth / Length: | 698 mm |
Product Net Height: | 2315 mm |
Product Net Width: | 965 mm |
Package Level 1 Depth / Length: | 1100 mm |
Package Level 1 Height: | 2550 mm |
Package Level 1 Width: | 1430 mm |
Technical | |
Number of Phases: | 3 |
Degree of Protection: | IP21 |
Enclosure Type NEMA: | Type1 |
Sound dB (A): | 72 dB(A) |
Frequency (f): | 50/60 Hz |
Input Voltage (Uin): | 380 ... 480 V |
Mounting Type: | Cabinet-built |
Output Current, Heavy-Duty Use: | 361 A |
Output Current, Light-Overload Use: | 485 A |
Output Current, Normal Use: | 505 A |
Output Power, Heavy-Duty Use: | 200 kW |
Output Power, Light-Overload Use: | 250 kW |
Output Power, Normal Use: | 250 kW |
Ecodesign Exemption: | Energy efficiency data is not provided for this cabinet-based drive. Cabinet built drives, with already conform modules, are excluded from the scope of the EU ecodesign requirements (Regulation EU/2019/1781, §2.3.e). |
Additional Information | |
Product Main Type: | ACH580-07 |
Product Name: | Frequency converter |
Classifications | |
UNSPSC: | 39122001 |
Environmental | |
SCIP: | e531a9e8-f7f6-4242-8b63-c885daa80d86 Finland (FI) |
WEEE Category: | 4. Large Equipment (Any External Dimension More Than 50 cm) |
