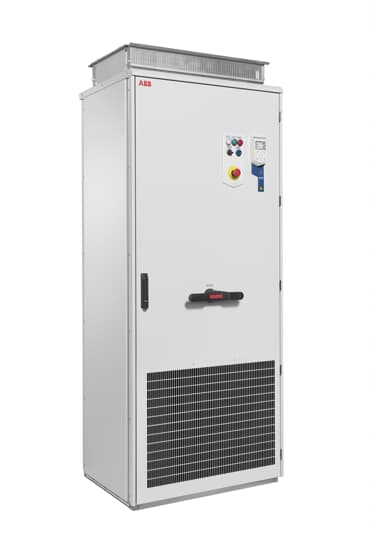

ABB ACQ580-07-0585A-4

The ACQ580-07 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact cabinet-built drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth® control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ready-made standalone cabinet-built ACQ580-07 variant comes in IP21 as standard. Also, IP42 and IP54 units are available.

Specifications

Ordering
Country of Origin:	Finland (FI)Estonia (EE)
Customs Tariff Number:	85044084
Invoice Description:	ACQ580-07-0585A-4 PN: 315 kW, IN: 585 A
Made To Order:	Yes
Minimum Order Quantity:	1 piece
Order Multiple:	1 piece
Quote Only:	No
Selling Unit of Measure:	piece
Container Information
Gross Volume:	1.243 m³
Dimensions
Product Net Weight:	410 kg
Product Net Depth / Length:	698 mm
Product Net Height:	2145 mm
Product Net Width:	830 mm
Package Level 1 Depth / Length:	1100 mm
Package Level 1 Height:	2550 mm
Package Level 1 Width:	1430 mm
Technical
Number of Phases:	3
Degree of Protection:	IP21
Enclosure Type NEMA:	Type1
Sound dB (A):	72 dB(A)
Frequency (f):	50/60 Hz
Input Voltage (Uin):	380 ... 480 V
Mounting Type:	Cabinet-built
Output Current, Heavy-Duty Use:	429 A
Output Current, Light-Overload Use:	575 A
Output Current, Normal Use:	585 A
Output Power, Heavy-Duty Use:	250 kW
Output Power, Light-Overload Use:	315 kW
Output Power, Normal Use:	315 kW
Ecodesign Exemption:	Energy efficiency data is not provided for this cabinet-based drive. Cabinet built drives, with already conform modules, are excluded from the scope of the EU ecodesign requirements (Regulation EU/2019/1781, §2.3.e).
Additional Information
Product Main Type:	ACQ580-07
Product Name:	Frequency converter
Classifications
UNSPSC:	39122001
Environmental
SCIP:	e531a9e8-f7f6-4242-8b63-c885daa80d86 Finland (FI)
WEEE Category:	4. Large Equipment (Any External Dimension More Than 50 cm)
