ABB ACQ580-07-0820A-4
ABB ACQ580-07-0820A-4
Regular price
R 0.00 ZAR
Regular price
R 0.00 ZAR
Sale price
R 0.00 ZAR
Unit price
/
per

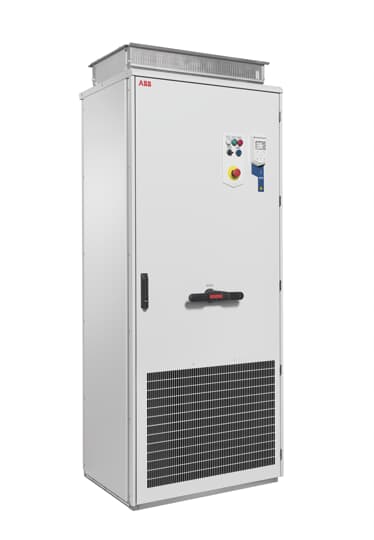

The ACQ580-07 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact cabinet-built drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth® control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ready-made standalone cabinet-built ACQ580-07 variant comes in IP21 as standard. Also, IP42 and IP54 units are available.
Specifications
Ordering | |
---|---|
Country of Origin: | Finland (FI)Estonia (EE) |
Customs Tariff Number: | 85044084 |
Invoice Description: | ACQ580-07-0820A-4 PN: 450 kW, IN: 820 A |
Made To Order: | Yes |
Minimum Order Quantity: | 1 piece |
Order Multiple: | 1 piece |
Quote Only: | No |
Selling Unit of Measure: | piece |
Container Information | |
Gross Volume: | 1.243 m³ |
Dimensions | |
Product Net Weight: | 440 kg |
Product Net Depth / Length: | 698 mm |
Product Net Height: | 2145 mm |
Product Net Width: | 830 mm |
Package Level 1 Depth / Length: | 1100 mm |
Package Level 1 Height: | 2550 mm |
Package Level 1 Width: | 1430 mm |
Technical | |
Number of Phases: | 3 |
Degree of Protection: | IP21 |
Enclosure Type NEMA: | Type1 |
Sound dB (A): | 72 dB(A) |
Frequency (f): | 50/60 Hz |
Input Voltage (Uin): | 380 ... 480 V |
Mounting Type: | Cabinet-built |
Output Current, Heavy-Duty Use: | 625 A |
Output Current, Light-Overload Use: | 810 A |
Output Current, Normal Use: | 820 A |
Output Power, Heavy-Duty Use: | 355 kW |
Output Power, Light-Overload Use: | 450 kW |
Output Power, Normal Use: | 450 kW |
Ecodesign Exemption: | Energy efficiency data is not provided for this cabinet-based drive. Cabinet built drives, with already conform modules, are excluded from the scope of the EU ecodesign requirements (Regulation EU/2019/1781, §2.3.e). |
Additional Information | |
Product Main Type: | ACQ580-07 |
Product Name: | Frequency converter |
Classifications | |
UNSPSC: | 39122001 |
Environmental | |
SCIP: | 2361a3f3-2fee-41b4-bbdb-00925564e194 Finland (FI) |
WEEE Category: | 4. Large Equipment (Any External Dimension More Than 50 cm) |
