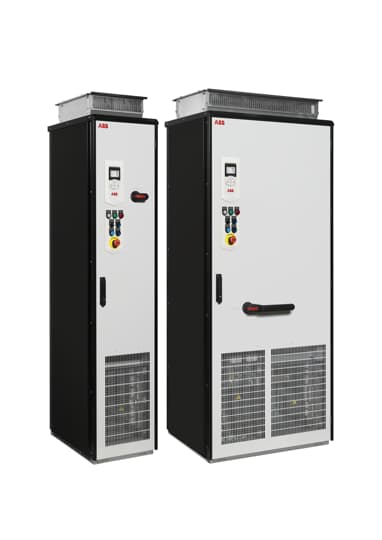

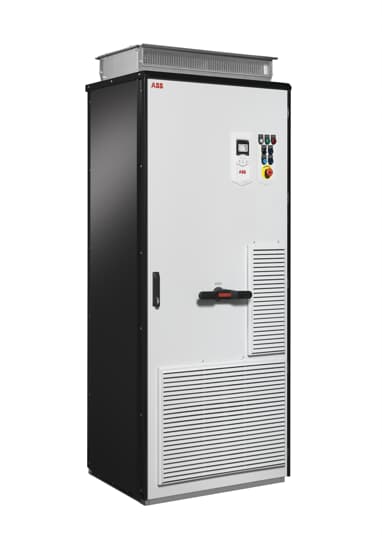

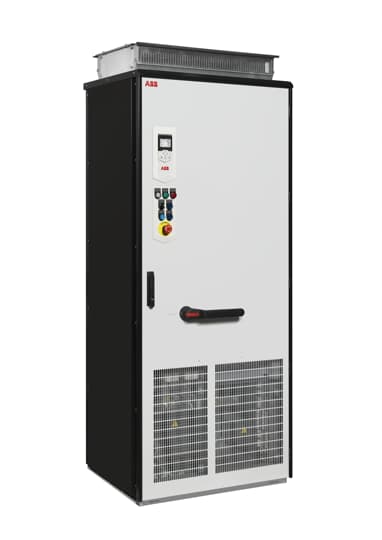

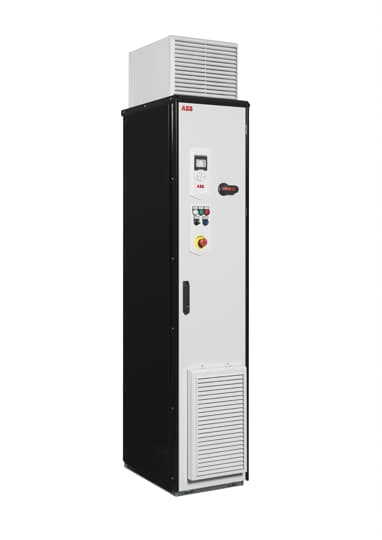

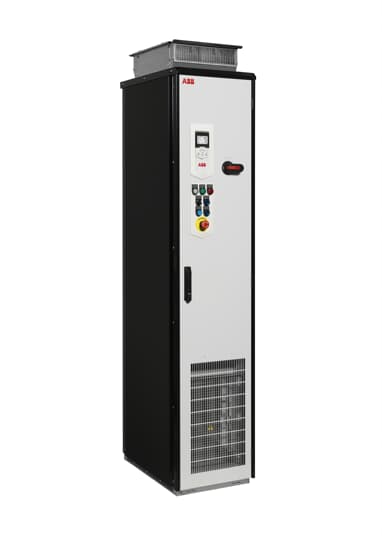

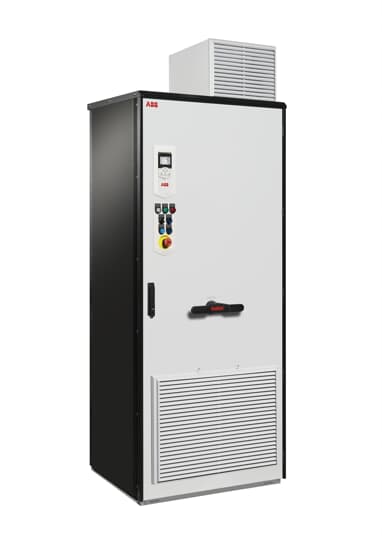

ABB ACS880-07-1580A-5

ABB ACS880-07-1580A-5

R 0.00 ZAR
R 0.00 ZAR R 0.00 ZAR
Sale Sold out
Shipping calculated at checkout.

Specifications

Ordering
Country of Origin: Finland (FI)
Customs Tariff Number: 85044088
Invoice Description: ACS880-07-1580A-5 PN:1100kW, IN:1580A
Made To Order: Yes
Minimum Order Quantity: 1 piece
Order Multiple: 1 piece
Quote Only: No
Selling Unit of Measure: piece
Technical
Number of Phases: 3
Frequency (f): 50 / 60 (+/- 5%) Hz
Input Voltage (Uin): 380 ... 500 V
Mounting Type: Cabinet-built
Output Current, Heavy-Duty Use: 1182 A
Output Current, Light-Overload Use: 1517 A
Output Current, Normal Use: 1580 A
Output Power, Heavy-Duty Use: 800 kW
Output Power, Light-Overload Use: 1000 kW
Output Power, Normal Use: 1100 kW
Ecodesign Exemption: Energy efficiency data is not provided for the drive. The drives rated above 1 000 kW output power are not in the scope of the EU ecodesign requirements (Regulation EU/2019/1781).
Additional Information
Product Main Type: ACS880-07-1580A-5
Product Name: Frequency Converter
Classifications
Product Series: ACS880
UNSPSC: 39122001
Environmental
SCIP: F97239A0-8F1B-4B36-A0F6-34D1783CB8EB Finland (FI)
WEEE Category: 4. Large Equipment (Any External Dimension More Than 50 cm)
