ABB
ABB KIT SHR E2.2 IU=2500 3PCS 1SDA074055R1
ABB KIT SHR E2.2 IU=2500 3PCS 1SDA074055R1
Regular price
R 11,934.67 ZAR
Regular price
R 22,350.38 ZAR
Sale price
R 11,934.67 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

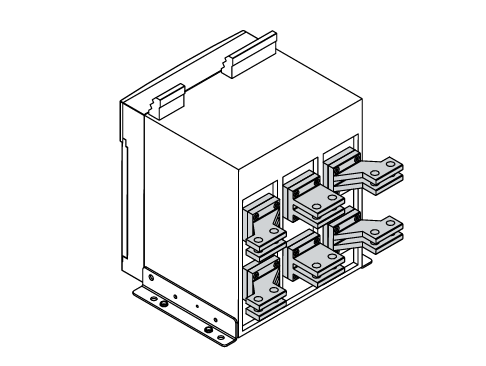

REAR TERMINALS HORIZONTAL DISTANCE 3pcs FOR FIXED E2.2 2500 A
Specifications
| Ordering | |
|---|---|
| EAN: | 8015644779887 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| Order Code US and Canada: | ZE2SHR25E |
| Dimensions | |
| Product Net Width: | 125 mm |
| Product Net Height: | 120 mm |
| Product Net Depth / Length: | 485 mm |
| Product Net Weight: | 1.5 kg |
| Container Information | |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 125 mm |
| Package Level 1 Height: | 120 mm |
| Package Level 1 Depth / Length: | 485 mm |
| Package Level 1 Gross Weight: | 1.65 kg |
| Package Level 1 EAN: | 8015644779887 |
| Environmental | |
| RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Additional Information | |
| Configuration Type: | Loose or configurable |
| Number of Poles: | 3 |
| Product Main Type: | Accessories for Emax 2 |
| Product Name: | Accessory |
| Product Type: | Accessory |
| Standards: | IEC |
| Suitable For: | E2.2 |
| Suitable for Product Class: | SACE Emax 2 |
| Certificates and Declarations (Document Number) | |
| Data Sheet, Technical Information: | 1SDC200023D0204 |
| Declaration of Conformity - CE: | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals: | 1SDH001000R0801 |
| REACH Declaration: | 9AKK108466A1425 |
| RoHS Information: | 9AKK108466A1424 |
| Classifications | |
| ETIM 6: | EC002019 - Connection vane/phase spreader |
| ETIM 7: | EC002019 - Connection vane/phase spreader |
| ETIM 8: | EC002019 - Connection vane/phase spreader |
| Object Classification Code: | Q |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass: | V11.1 : 27371305 |
