ABB TVOC-2-E1 Extension 1SFA664002R1001
ABB TVOC-2-E1 Extension 1SFA664002R1001
Regular price
R 11,056.91 ZAR
Regular price
R 20,103.47 ZAR
Sale price
R 11,056.91 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

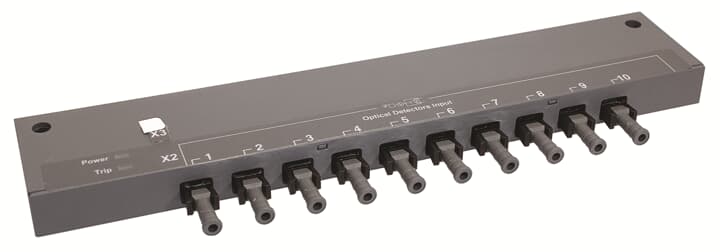

The extension unit TVOC-2-E1 can be assembled on the TVOC-2 main unit to increase the number of detector inputs. There are 10 detector inputs per extension unit E1 and up to 2 extension units can be added to the main unit, creating 30 detector inputs in total.
Specifications
| Ordering | |
|---|---|
| E-Number (Finland): | 2712001 |
| E-Number (Norway): | 4116452 |
| E-Number (Sweden): | 2801707 |
| EAN: | 7320500382196 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| Dimensions | |
| Product Net Width: | 230 mm |
| Product Net Height: | 50 mm |
| Product Net Depth / Length: | 25 mm |
| Product Net Weight: | 0.114 kg |
| Container Information | |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 85 mm |
| Package Level 1 Height: | 55 mm |
| Package Level 1 Depth / Length: | 275 mm |
| Package Level 1 Gross Weight: | 0.194 kg |
| Package Level 1 EAN: | 7320500382196 |
| Environmental | |
| Ambient Air Temperature: | Operation -25 ... +55 °CStorage -25 ... +55 °C |
| RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Additional Information | |
| Additional Information: | ARC MONITOR TVOC-2 EXTENSION |
| Mounting Type: | Mounted on main unit |
| Number of Auxiliary Contacts CO (SPDT): | 0 |
| Number of Auxiliary Contacts NC: | 0 |
| Number of Auxiliary Contacts NO: | 0 |
| Power Loss: | 1 W |
| Product Main Type: | TVOC-2 |
| Product Name: | Extension |
| RoHS Date: | 1009 1 |
| Suitable For: | TVOC-2 |
| Certificates and Declarations (Document Number) | |
| BV Certificate: | 39407_B1 |
| CSA Certificate: | UL_20110511-E155370 |
| cULus Certificate: | UL_20110511-E155370 |
| Data Sheet, Technical Information: | 1SFC170001C0201 |
| Declaration of Conformity - CE: | 2CMT005420 |
| DNV Certificate: | DNV_E-12926 |
| EAC Certificate: | 9AKK106713A1450 |
| Environmental Information: | 1SFC170003D0201 |
| Instructions and Manuals: | 1SFC170011M0201 |
| Instructions and Manuals (Part 2): | 1SFC170011M0201 |
| RoHS Information: | 2CMT005420 |
| UL Certificate: | UL_20110511-E155370 |
| Classifications | |
| ETIM 4: | EC001444 - Insulation and earth fault monitoring relay |
| ETIM 5: | EC001444 - Insulation and earth fault monitoring relay |
| ETIM 6: | EC002911 - Arc detection system |
| ETIM 7: | EC002911 - Arc detection system |
| Object Classification Code: | B |
| UNSPSC: | 39122331 |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass: | V11.0 : 27142214 |
