ABB
Regular price
R 5,072.87 ZAR
Regular price
R 9,223.40 ZAR
Sale price
R 5,072.87 ZAR
Unit price
/
per
Sale
Sold out
SKU:
Part Number: 1SFA664002R1005
Couldn't load pickup availability
Refresh

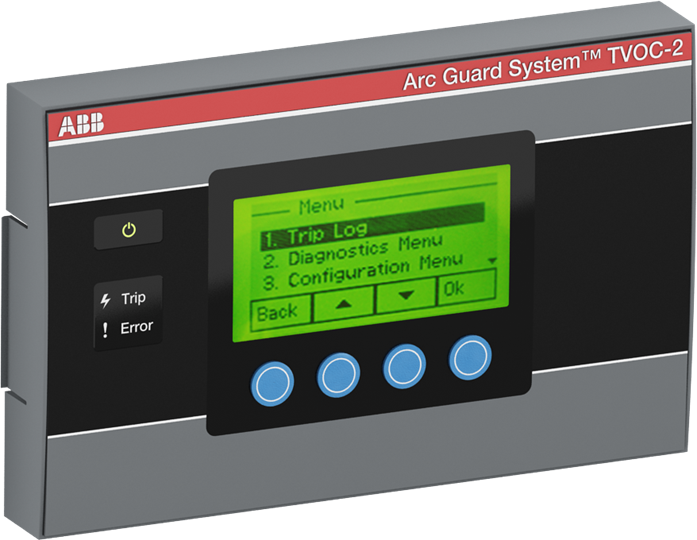

The TVOC-2-H1 is an HMI to be added to the TVOC-2 Arc Guard System Main unit if more than one HMI is needed. The added HMI can be added to the panel door for easier overview. The HMI is connected to the main unit by a 3 m cable with RJ45 connector that comes with the HMI unit. Accessories that comes with the unit are mounting nut, gasket and blank front label.
Specifications
Ordering
E-Number (Finland):
2712002
E-Number (Norway):
4116453
E-Number (Sweden):
2801706
EAN:
7320500382189
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099
Dimensions
Product Net Width:
130 mm
Product Net Height:
82 mm
Product Net Depth / Length:
27 mm
Product Net Weight:
0.115 kg
Container Information
Package Level 1 Units:
1 piece
Package Level 1 Width:
130 mm
Package Level 1 Height:
72 mm
Package Level 1 Depth / Length:
215 mm
Package Level 1 Gross Weight:
0.304 kg
Package Level 1 EAN:
7320500382189
Environmental
Ambient Air Temperature:
Operation -25 ... +55 ?øCStorage -25 ... +55 ?øC
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Additional Information
Additional Information:
ARC MONITOR TVOC-2 HMI
Mounting Type:
Mounted on main unit or cabinet door
Number of Auxiliary Contacts CO (SPDT):
0
Number of Auxiliary Contacts NC:
0
Number of Auxiliary Contacts NO:
0
Power Loss:
1 W
Product Main Type:
TVOC-2
Product Name:
HMI
RoHS Date:
1009 1
Suitable For:
TVOC-2
Terminal Type:
Screw Terminals
Certificates and Declarations (Document Number)
BV Certificate:
39407_B1
CSA Certificate:
UL_20110511-E155370
cULus Certificate:
UL_20110511-E155370
Data Sheet, Technical Information:
1SFC170001C0201
Declaration of Conformity - CE:
2CMT005420
DNV Certificate:
DNV_E-12926
EAC Certificate:
9AKK106713A1450
Environmental Information:
1SFC170003D0201
Instructions and Manuals:
1SFC170011M0201
Instructions and Manuals (Part 2):
1SFC170011M0201
RoHS Information:
2CMT005420
UL Certificate:
UL_20110511-E155370
Classifications
ETIM 4:
EC001444 - Insulation and earth fault monitoring relay
ETIM 5:
EC001444 - Insulation and earth fault monitoring relay
ETIM 6:
EC002911 - Arc detection system
ETIM 7:
EC002911 - Arc detection system
Object Classification Code:
B
UNSPSC:
39122331
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
eClass:
V11.0 : 27142214
