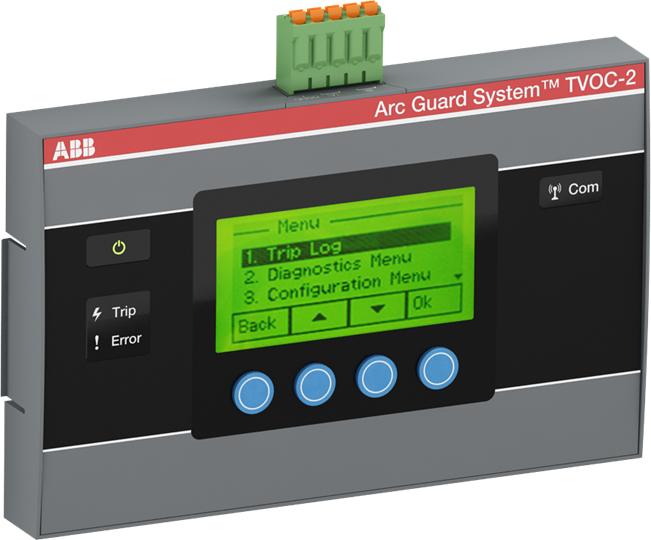

ABB TVOC-2-COM COM 1SFA664002R4001
ABB TVOC-2-COM COM 1SFA664002R4001
Regular price
R 4,925.12 ZAR
Regular price
R 8,954.76 ZAR
Sale price
R 4,925.12 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The TVOC-2-COM is a communication HMI to be added to the TVOC-2 Arc Guard System Main unit if more than one HMI is needed or if communication is required. The added COM module can be mounted on the panel door for easier overview. The HMI is connected to the main unit by a 3 m cable with RJ45 connector that comes with the HMI unit. The COM module uses communication protocol Modbus RTU which can be connected to ABB Ability™ Electrical Distribution Control System or other control system. Accessories that comes with the unit are mounting nut, gasket and blank front label.
Specifications
| Ordering | |
|---|---|
| E-Number (Finland): | 2712561 |
| E-Number (Sweden): | 2800005 |
| EAN: | 7320500509807 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| Dimensions | |
| Product Net Width: | 130 mm |
| Product Net Height: | 82 mm |
| Product Net Depth / Length: | 27 mm |
| Product Net Weight: | 0.115 kg |
| Container Information | |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 130 mm |
| Package Level 1 Height: | 72 mm |
| Package Level 1 Depth / Length: | 215 mm |
| Package Level 1 Gross Weight: | 0.304 kg |
| Package Level 1 EAN: | 7320500509807 |
| Environmental | |
| Ambient Air Temperature: | Operation -25 ... +55 °CStorage -25 ... +55 °C |
| RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Additional Information | |
| Additional Information: | ARC MONITOR TVOC-2 COM |
| Mounting Type: | Mounted on main unit or cabinet door |
| Number of Auxiliary Contacts CO (SPDT): | 0 |
| Number of Auxiliary Contacts NC: | 0 |
| Number of Auxiliary Contacts NO: | 0 |
| Power Loss: | 1 W |
| Product Main Type: | TVOC-2 |
| Product Name: | COM |
| RoHS Date: | 1009 1 |
| Suitable For: | TVOC-2 |
| Terminal Type: | Screw Terminals |
| Certificates and Declarations (Document Number) | |
| BV Certificate: | 39407_B1 |
| CSA Certificate: | UL_20110511-E155370 |
| cULus Certificate: | UL_20110511-E155370 |
| Data Sheet, Technical Information: | 1SFC170001C0201 |
| Declaration of Conformity - CE: | 2CMT005420 |
| DNV Certificate: | DNV_E-12926 |
| EAC Certificate: | 9AKK106713A1450 |
| Environmental Information: | 1SFC170003D0201 |
| Instructions and Manuals: | 1SFC170011M0201 |
| Instructions and Manuals (Part 2): | 1SFC170011M0201 |
| RoHS Information: | 2CMT005420 |
| UL Certificate: | UL_20110511-E155370 |
| Classifications | |
| ETIM 4: | EC001444 - Insulation and earth fault monitoring relay |
| ETIM 5: | EC001444 - Insulation and earth fault monitoring relay |
| ETIM 6: | EC002911 - Arc detection system |
| ETIM 7: | EC002911 - Arc detection system |
| Object Classification Code: | B |
| UNSPSC: | 39122331 |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass: | V11.0 : 27142214 |
