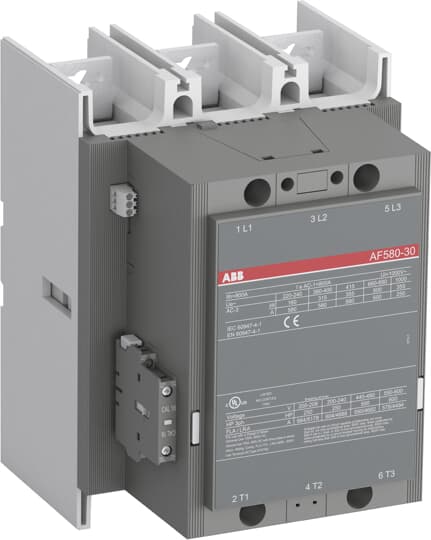

ABB AF580-30-11 250-500V 50/60Hz / 250-500V DC Contactor 1SFL617001R7111

The AF580-30-11-71 is a 3 pole - 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, controlling motors up to 315 kW / 400 V AC (AC-3) or 500 hp / 480 V UL and switching power circuits up to 800 A (AC-1) or 750 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (250-500 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

Specifications

Ordering
Minimum Order Quantity:	1 piece
Customs Tariff Number:	85364900
Popular Downloads
Data Sheet, Technical Information:	1SBC100192C0206
Instructions and Manuals:	1SFC380023-en
Dimension Diagram:	53540919-60
Dimensions
Product Net Width:	210 mm
Product Net Depth / Length:	242 mm
Product Net Height:	283 mm
Product Net Weight:	13.6 kg
Technical
Number of Main Contacts NO:	3
Number of Main Contacts NC:	0
Number of Auxiliary Contacts NO:	1
Number of Auxiliary Contacts NC:	1
Rated Operational Voltage:	Main Circuit 1000 V
Rated Frequency (f):	Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith):	acc. to IEC 60947-4-1, Open Contactors q = 40 °C 800 A
Rated Operational Current AC-1 (Ie):	(1000 V) 40 °C 800 A(1000 V) 55 °C 700 A(1000 V) 70 °C 580 A(690 V) 40 °C 800 A(690 V) 55 °C 700 A(690 V) 70 °C 580 A
Rated Operational Current AC-3 (Ie):	(415 V) 55 °C 580 A(440 V) 55 °C 580 A(500 V) 55 °C 580 A(690 V) 55 °C 500 A(1000 V) 55 °C 250 A(380 / 400 V) 55 °C 580 A(220 / 230 / 240 V) 55 °C 580
Rated Operational Power AC-3 (Pe):	(415 V) 355 kW(440 V) 355 kW(500 V) 400 kW(690 V) 500 kW(1000 V) 355 kW(380 / 400 V) 315 kW(220 / 230 / 240 V) 160 kW
Rated Breaking Capacity AC-3:	8 x Ie AC-3
Rated Making Capacity AC-3:	10 x Ie AC-3
Short-Circuit Protective Devices:	gG Type Fuses 1000 A
Rated Short-time Withstand Current Low Voltage (Icw):	at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 6400 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 1300 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 3500 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 7000 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 4500 A
Maximum Breaking Capacity:	cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 6000 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 5000 A
Maximum Electrical Switching Frequency:	(AC-1) 300 cycles per hour(AC-2 / AC-4) 60 cycles per hour(AC-3) 300 cycles per hour
Rated Operational Current DC-1 (Ie):	(110 V) 1-Pole, 40 °C 800 A(110 V) 2 Poles in Series, 40 °C 800 A(220 V) 3 Poles in Series, 40 °C 800 A(600 V) 3 Poles in Series, 40 °C 800 A(850 V) 3 Poles in Series, 40 °C 800 A
Rated Operational Current DC-3 (Ie):	(110 V) 1-Pole, 40 °C 800 A(110 V) 2 Poles in Series, 40 °C 800 A(220 V) 3 Poles in Series, 40 °C 800 A(600 V) 3 Poles in Series, 40 °C 800 A
Rated Operational Current DC-5 (Ie):	(110 V) 1-Pole, 40 °C 800 A(110 V) 2 Poles in Series, 40 °C 800 A(220 V) 3 Poles in Series, 40 °C 800 A(600 V) 3 Poles in Series, 40 °C 800 A
Rated Insulation Voltage (Ui):	acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 Vacc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp):	Main Circuit 8 kV
Mechanical Durability:	3 million
Maximum Mechanical Switching Frequency:	300 cycles per hour
Coil Operating Limits:	(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C)
Rated Control Circuit Voltage (Uc):	50 Hz 250 ... 500 V60 Hz 250 ... 500 VDC Operation 250 ... 500 V
Coil Consumption:	Holding at Max. Rated Control Circuit Voltage 50 Hz 12 V·AHolding at Max. Rated Control Circuit Voltage 60 Hz 12 V·AHolding at Max. Rated Control Circuit Voltage DC 7.5 V·APull-in at Max. Rated Control Circuit Voltage 50 Hz 985 V·APull-in at Max. Rated Control Circuit Voltage 60 Hz 985 V·APull-in at Max. Rated Control Circuit Voltage DC 910 V·A
Operate Time:	Between Coil De-energization and NC Contact Closing 50 ... 70 msBetween Coil De-energization and NO Contact Opening 53 ... 73 msBetween Coil Energization and NC Contact Opening 45 ... 115 msBetween Coil Energization and NO Contact Closing 50 ... 120 ms
Connecting Capacity Main Circuit:	Bar 52 mm²Rigid Al-Cable 3x185 mm²Rigid Cu-Cable 300 mm²
Connecting Capacity Auxiliary Circuit:	Flexible with Ferrule 2x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm²Flexible 2x0.75 ... 2.5 mm²Solid 2 x 1 ... 4 mm²Stranded 1 x 1 .... 4 mm²
Degree of Protection:	acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Terminal Type:	Main Circuit: Bars
Technical UL/CSA
Maximum Operating Voltage UL/CSA:	Main Circuit 1000 V
General Use Rating UL/CSA:	(600 V AC) 750 A
Horsepower Rating UL/CSA:	(200 V AC) Three Phase 200 hp(208 V AC) Three Phase 200 hp(220 ... 240 V AC) Three Phase 250 hp(440 ... 480 V AC) Three Phase 500 hp(550 ... 600 V AC) Three Phase 600 hp
Environmental
Ambient Air Temperature:	Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °CClose to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °CClose to Contactor for Storage -40 ... +70 °C
Maximum Operating Altitude Permissible:	Without Derating 3000 m
Resistance to Shock acc. to IEC 60068-2-27:	Shock Direction: A 5 gShock Direction: B1 5 gShock Direction: B2 5 gShock Direction: C1 5 gShock Direction: C2 5 g
RoHS Status:	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Certificates and Declarations (Document Number)
ABS Certificate:	15-LD1408622-PDA
BV Certificate:	BV_13409-C0BV
CB Certificate:	SE-82863
CCS Certificate:	GB14T00030
CQC Certificate:	CQC2007010304256684CQC2012010304540080
cUL Certificate:	UL_20111101-E36588
Declaration of Conformity - CCC:	20209803040013012020980304001045
Declaration of Conformity - CE:	2CMT2019-005796
Declaration of Conformity - UKCA:	2CMT2020-006118
DNV Certificate:	DNV_E-10966
DNV GL Certificate:	TAE00001W1
EAC Certificate:	9AKK107046A8618
Environmental Information:	1SFC101005D02011SAC200044H0006
GL Certificate:	GL_42988-02HH
Instructions and Manuals:	1SFC380023-en
LOVAG Certificate:	SE-0146175
LR Certificate:	16-20064
PRS Certificate:	TE_2092_880423_16
RINA Certificate:	ELE060313XG_002
RMRS Certificate:	9AKK107045A6978
RoHS Information:	2CMT2019-005796
UL Listing Card:	UL_E36588
Container Information
Package Level 1 Units:	box 1 piece
Package Level 1 Width:	280 mm
Package Level 1 Depth / Length:	375 mm
Package Level 1 Height:	310 mm
Package Level 1 Gross Weight:	15 kg
Package Level 1 EAN:	7320500250228
