ABB

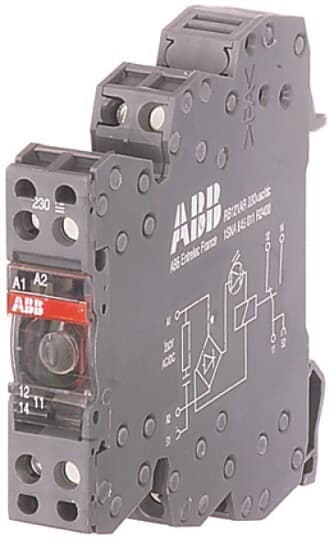

ABB RB101R-24VUC Interface relay R600 1n/o,A1-A2=24VAC/DC,5-250VAC/60mA-6A,with integrated output contact protection 1SNA645019R0400
ABB RB101R-24VUC Interface relay R600 1n/o,A1-A2=24VAC/DC,5-250VAC/60mA-6A,with integrated output contact protection 1SNA645019R0400
Regular price
R 361.61 ZAR
Regular price
R 677.19 ZAR
Sale price
R 361.61 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The RB101R-24VUC is a boxed interface relay with screw terminals, which can be seemlessly snap-on mounted onto a DIN Rail. The relay is soldered into device housing, ensuring a high resistance against vibration.This relay operates with a 24 V AC/DC rated control supply voltage and has a 1 n/c (SPST) output with contacts rated at 250 V / 6 A. This 6mm wide boxed interface relay may be used for electrical isolation, amplification and signal matching and enables the switching of high currents on a small footprint. It has an integrated LED, which provides the visual indication of the energization of the relay coil and UL 94-V0 certified device housing, improving safety by providing high levels flame retardation. Jumper bars are available as accessories.
Specifications
| Ordering | |
|---|---|
| Minimum Order Quantity: | 5 piece |
| Customs Tariff Number: | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC110004C0210_05 |
| Instructions and Manuals: | 1SVC645000M9000 |
| Dimensions | |
| Product Net Width: | 12 mm |
| Product Net Height: | 67.5 mm |
| Product Net Depth / Length: | 70 mm |
| Product Net Weight: | 0.04 kg |
| Technical | |
| Function: | Boxed interface relay R600 |
| Sub-Function: | Relay with built in LED and RC circuit |
| Output: | 1 n/c contact |
| Output Signal: | 5 ... 250VAC / 60mA ... 6A |
| Rated Control Supply Voltage (Us): | 24 V AC/DC |
| Terminal Type: | Screw Terminals |
| Environmental | |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Certificates and Declarations (Document Number) | |
| CB Certificate: | CB_DK-53188-UL |
| CCC Certificate: | CCC_2017010303941444 |
| CQC Certificate: | CQC_2017010303941444 |
| CSA Certificate: | CSA_254821 |
| cUR Certificate: | cUR_E352056 |
| Declaration of Conformity - CCC: | CCC_2020980303000254 |
| Declaration of Conformity - CE: | 1SVD982016-0001 |
| Declaration of Conformity - UKCA: | 1SVD982016-1000 |
| EAC Certificate: | EAC_RU_C-FR.ME77.B.01634 |
| Instructions and Manuals: | 1SVC645000M9000 |
| LR Certificate: | LR_16_20068 |
| RoHS Information: | 1SVD982016-0001 |
| UR Certificate: | UR_E352056 |
| Container Information | |
| Package Level 1 Units: | box 5 piece |
| Package Level 1 Width: | 73 mm |
| Package Level 1 Height: | 71 mm |
| Package Level 1 Depth / Length: | 80 mm |
| Package Level 1 Gross Weight: | 0.24 kg |
| Package Level 1 EAN: | 3472596450199 |
| Classifications | |
| Object Classification Code: | K |
| ETIM 4: | EC001437 - Switching relay |
| ETIM 5: | EC001437 - Switching relay |
| ETIM 6: | EC001437 - Switching relay |
| ETIM 7: | EC001437 - Switching relay |
| ETIM 8: | EC001437 - Switching relay |
| eClass: | V11.0 : 27371601 |
| UNSPSC: | 39122331 |
| E-Number (Sweden): | 4001114 |
