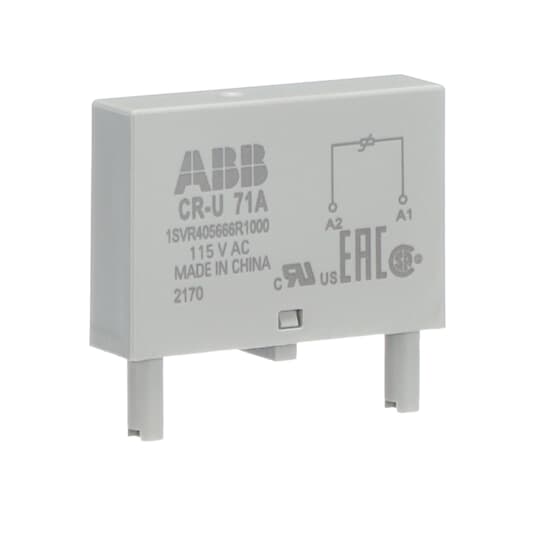

ABB CR-U 71A Pluggable module varistor, without LED, 115VAC 1SVR405666R1000

The CR-U 71A plug-in module is a pluggable function module for the CR-U range sockets. This module provides overvoltage protection. The rated control supply voltage is 115 V AC.

Specifications

Ordering
Minimum Order Quantity:	10 piece
Customs Tariff Number:	85480090
Popular Downloads
Data Sheet, Technical Information:	2CDC110004C0210_05
Instructions and Manuals:	2CDC117008D0204
Dimensions
Product Net Width:	34 mm
Product Net Height:	24 mm
Product Net Depth / Length:	9 mm
Product Net Weight:	0.007 kg
Technical
Function:	Accessory for interface relays CR-U
Sub-Function:	Pluggable function module for universal relay sockets
Sub-Function 2:	Overvoltage protection
Output:	none
Output Signal:	none
Rated Control Supply Voltage (Us):	115 V AC
Environmental
RoHS Status:	Following EU Directive 2011/65/EU
Certificates and Declarations (Document Number)
CSA Certificate:	CSA_262671_2785566
cURus Certificate:	cURus508_E244328
Declaration of Conformity - CE:	1SVD982020-0001
Declaration of Conformity - UKCA:	1SVD982020-1000
EAC Certificate:	EAC_RU_C-DE.ME77.B.00446-19
Environmental Information:	1SAA981009-2401
Instructions and Manuals:	2CDC117008D0204
RoHS Information:	1SVD982020-0001
Container Information
Package Level 1 Units:	bag 10 piece
Package Level 1 Width:	180 mm
Package Level 1 Height:	220 mm
Package Level 1 Depth / Length:	9 mm
Package Level 1 Gross Weight:	0.072 kg
Package Level 1 EAN:	4013614374531
Classifications
Object Classification Code:	K
ETIM 4:	EC002586 - Accessories for switching relay
ETIM 5:	EC002586 - Accessories for switching relay
ETIM 6:	EC002586 - Accessories for switching relay
ETIM 7:	EC002586 - Accessories for switching relay
ETIM 8:	EC002586 - Accessories/spare parts for switching relay
eClass:	V11.0 : 27371692
UNSPSC:	39122331
E-Number (Finland):	2712811
E-Number (Sweden):	4005455
