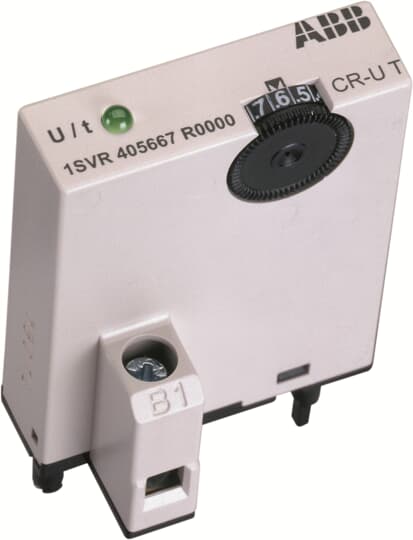

ABB CR-U T Multifunction time module A1-A2=24-240VAC/DC, for CR-U socket 1SVR405667R0000

The CR-U T plug-in module is a pluggable function module. The module is suitable for the sockets CR-U2S and CR-U3S. This module provides several timing functions. The rated control supply voltage is 24-240 V AC / DC.

Specifications

Ordering
Minimum Order Quantity:	10 piece
Customs Tariff Number:	85389099
Popular Downloads
Data Sheet, Technical Information:	2CDC117010D0202
Instructions and Manuals:	1SVC405650M9050
Dimensions
Product Net Width:	35 mm
Product Net Height:	47 mm
Product Net Depth / Length:	12 mm
Product Net Weight:	0.014 kg
Technical
Function:	Accessory for interface relays CR-U
Sub-Function:	Pluggable function module for universal relay sockets
Sub-Function 2:	Multifunction time module
Output:	none
Output Signal:	none
Rated Control Supply Voltage (Us):	24 ... 240 V AC/DC
Environmental
RoHS Status:	Following EU Directive 2011/65/EU
Certificates and Declarations (Document Number)
CSA Certificate:	CSA_262671_2785566
Declaration of Conformity - CE:	1SVD982019-0001
Declaration of Conformity - UKCA:	1SVD982019-1000
EAC Certificate:	EAC_RU_C-DE.ME77.B.00446-19
Environmental Information:	1SAA981009-2401
Instructions and Manuals:	1SVC405650M9050
RoHS Information:	1SVD982019-0001
Container Information
Package Level 1 Units:	bag 10 piece
Package Level 1 Width:	80 mm
Package Level 1 Height:	70 mm
Package Level 1 Depth / Length:	238 mm
Package Level 1 Gross Weight:	0.21 kg
Package Level 1 EAN:	4013614382826
Classifications
Object Classification Code:	K
ETIM 4:	EC002586 - Accessories for switching relay
ETIM 5:	EC002586 - Accessories for switching relay
ETIM 6:	EC002586 - Accessories for switching relay
ETIM 7:	EC002586 - Accessories for switching relay
ETIM 8:	EC002586 - Accessories/spare parts for switching relay
eClass:	V11.0 : 27371692
UNSPSC:	39122331
E-Number (Finland):	2712515
