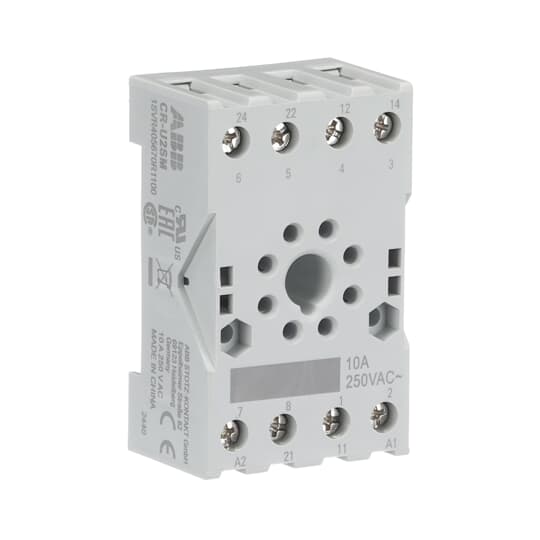

ABB CR-U2SM Socket small for 2c/o CR-U relay 1SVR405670R1100

The CR-U2SM socket is from the CR-U (universal) relay range. The small socket is suitable for CR-U relays with 2 c/o (SPDT) output contacts. The socket has screw connection terminals. Pluggable function modules, holder and marker are available as accessories

Specifications

Ordering
Minimum Order Quantity:	10 piece
Customs Tariff Number:	85369010
Popular Downloads
Data Sheet, Technical Information:	2CDC110004C0210_05
Instructions and Manuals:	1SVC405650M9000
Dimensions
Product Net Width:	38 mm
Product Net Height:	24.2 mm
Product Net Depth / Length:	68.2 mm
Product Net Weight:	0.054 kg
Technical
Function:	Accessory for interface relays CR-U
Sub-Function:	Socket for universal relays
Sub-Function 2:	Socket small for universal relay 2 c/o
Output:	none
Terminal Type:	Screw Terminals
Environmental
RoHS Status:	Following EU Directive 2011/65/EU
Certificates and Declarations (Document Number)
CSA Certificate:	CSA_262671_2785566
cURus Certificate:	cURus508_E244328
Declaration of Conformity - CE:	1SVD982020-0001
Declaration of Conformity - UKCA:	1SVD982020-1000
EAC Certificate:	EAC_RU_C-DE.ME77.B.00446-19
Environmental Information:	1SAA981009-2401
Instructions and Manuals:	1SVC405650M9000
RoHS Information:	1SVD982020-0001
Container Information
Package Level 1 Units:	box 10 piece
Package Level 1 Width:	73 mm
Package Level 1 Height:	84 mm
Package Level 1 Depth / Length:	120 mm
Package Level 1 Gross Weight:	0.59 kg
Package Level 1 EAN:	4013614378881
Classifications
Object Classification Code:	K
ETIM 4:	EC001456 - Relay socket
ETIM 5:	EC001456 - Relay socket
ETIM 6:	EC001456 - Relay socket
ETIM 7:	EC001456 - Relay socket
ETIM 8:	EC001456 - Relay socket
eClass:	V11.0 : 27371603
UNSPSC:	39122335
