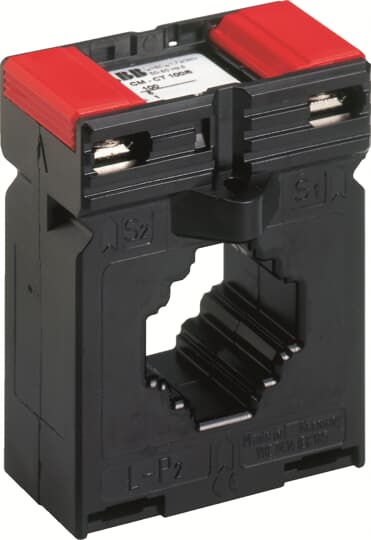

ABB CM-CT 500/5 Current transformer 5VA, class 1 1SVR450117R5300

The CM-CT 500/5 is a plug-in current transformer from the CM-CT range. The current transformer has a rated primary current of 500 A and a secondary rated current of 5 A. The burden of the current transformer is 5 VA and its precision is according to class 1. The CM-CT 500/5 will be delivered with foot angle, insulating protective cap and bar fastening screws. A snap-on mounting for DIN rail is avaiable as accessory.

Specifications

Technical
Standards:	IEC/EN 63000IEC/EN 61869-1IEC/EN 61869-2
Function:	Current transformer
Suitable For:	CM-SRS.12SCM-SRS.12PCM-SRS.22SCM-SRS.22PCM-SRS.M2SCM-SFS.22S
Suitable for Product Class:	Single Phase Monitors
Rated Primary Current (Ipn):	500 A
Rated Secondary Current (Isn):	5 A
Environmental
RoHS Status:	Following EU Directive 2011/65/EU
Dimensions
Product Net Width:	61 mm
Product Net Height:	78.5 mm
Product Net Depth / Length:	48 mm
Product Net Weight:	0.208 kg
Container Information
Package Level 1 Units:	box 1 piece
Package Level 1 Width:	62 mm
Package Level 1 Height:	52 mm
Package Level 1 Depth / Length:	90 mm
Package Level 1 Gross Weight:	0.213 kg
Package Level 1 EAN:	4013614376948
Ordering
Minimum Order Quantity:	1 piece
Customs Tariff Number:	85043129
Certificates and Declarations (Document Number)
Declaration of Conformity - CE:	1SVD982015-00
Declaration of Conformity - UKCA:	1SVD982015-10
Instructions and Manuals:	1SVC450000M9000
RoHS Information:	1SVD982015-0001
Regulatory Compliance Mark (RCM):
Popular Downloads
Data Sheet, Technical Information:	2CDC110004C0210_02
Instructions and Manuals:	1SVC450000M9000
Classifications
ETIM 7:	EC002048 - Current transformer
ETIM 8:	EC002048 - Current transformer
EPLAN Catalog Tree:	Electrical engineering / General / General
WEEE Category:	5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:	Business To Business
CN8:	8504 31 29
eClass:	V11.0 : 27210902
Object Classification Code:	T
