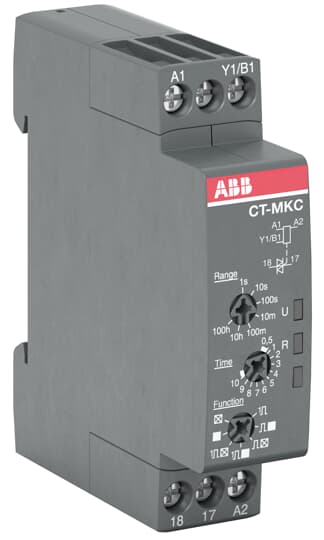

ABB CT-MKC.31 Time relay, Multifunctional solid-state, 12-240VAC/DC 1SVR508010R1300
ABB CT-MKC.31 Time relay, Multifunctional solid-state, 12-240VAC/DC 1SVR508010R1300
Regular price
R 769.99 ZAR
Regular price
R 1,399.99 ZAR
Sale price
R 769.99 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The CT-MKC.31 is a multifunction electronic time relay from the CT-C timer range. It provides 7 timing functions with 7 time ranges from 0.05 s to 100 h. This time relay operates with a rated control supply voltage of 12 - 240 V AC / DC and has a solid state output rated at 250 V / 1 A. A control input works with voltage-related (non-floating) triggering.
Specifications
| Ordering | |
|---|---|
| EAN: | 4013614555626 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC110004C0210_01 |
| Instructions and Manuals: | 1SVC500020M0001 |
| Dimensions | |
| Product Net Width: | 17.5 mm |
| Product Net Height: | 70 mm |
| Product Net Depth / Length: | 63 mm |
| Product Net Weight: | 0.053 kg |
| Technical | |
| Timer Relay Type: | Flasher Starting with OFFFlasher Starting with ONImpulse OFFImpulse ONOFF-DelayON-DelayPulse Former |
| Time Range: | 0.05 s ... 100 h |
| Rated Control Supply Voltage (Us): | 12 ... 240 V AC/DC |
| Rated Frequency (f): | 50 Hz60 HzDC |
| Output: | solid-state output |
| Terminal Type: | Screw Terminals |
| Rated Operational Current AC-12 (Ie): | (230 V) 1 A |
| Rated Operational Current AC-15 (Ie): | (230 V) 0.2 A |
| Rated Operational Current DC-12 (Ie): | (24 V) 1 A |
| Rated Operational Current DC-13 (Ie): | (24 V) 1 A |
| Rated Impulse Withstand Voltage (Uimp): | Input Circuit 4 kV |
| Rated Insulation Voltage (Ui): | Input Circuit / Output Circuit 300 V |
| Degree of Protection: | Housing IP50Terminals IP20 |
| Overvoltage Category: | III |
| Pollution Degree: | 3 |
| Short-Circuit Protective Devices: | Output Circuit NC - F Type Fuses 6 A |
| Connecting Capacity: | Flexible 1x 0.5 ... 2.5 mm²Flexible 2x 0.5 ... 1.5 mm²Rigid 1x 0.5 ... 4 mm²Rigid 2x 0.5 ... 1.5 mm² |
| Tightening Torque: | 0.5 ... 0.8 N·m |
| Wire Stripping Length: | 7 mm |
| Recommended Screw Driver: | Pozidriv 10.8 x 4 |
| Mounting Position: | 1 ... 6 |
| Mounting on DIN Rail: | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards: | CAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 61812-1UL 60947-5-1 |
| Technical UL/CSA | |
| Connecting Capacity UL/CSA: | Flexible 1x 18-14 AWGFlexible 2x 18-16 AWGRigid 1x 20-12 AWGRigid 2x 20-16 AWG |
| Tightening Torque UL/CSA: | 4.43 ... 7.08 in·lb |
| Environmental | |
| Ambient Air Temperature: | Operation -20 ... +60 °CStorage -40 ... +85 °C |
| Maximum Operating Altitude Permissible: | Without Derating 2000 m |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Certificates and Declarations (Document Number) | |
| CCC Certificate: | CCC_2019010303150608 |
| CQC Certificate: | CQC2019010303150608 |
| cULus Certificate: | cULus_20031209-E140448 |
| Data Sheet, Technical Information: | 2CDC110004C0210_01 |
| Declaration of Conformity - CCC: | 2020980303000209 |
| Declaration of Conformity - CE: | 1SVD981068 |
| Declaration of Conformity - UKCA: | 1SVD981068-10 |
| DNV GL Certificate: | DNV_GL_TAA00002TS |
| EAC Certificate: | RU C-DE.ME77.B.00899 |
| Environmental Information: | 1SAC200110H0001 |
| Instructions and Manuals: | 1SVC500020M0001 |
| RoHS Information: | 1SVD981068 |
| Container Information | |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 89 mm |
| Package Level 1 Depth / Length: | 20 mm |
| Package Level 1 Height: | 65 mm |
| Package Level 1 Gross Weight: | 0.065 kg |
| Package Level 1 EAN: | 4013614555626 |
| Classifications | |
| Object Classification Code: | K |
| ETIM 5: | EC001439 - Timer relay |
| ETIM 6: | EC001439 - Timer relay |
| ETIM 7: | EC001439 - Timer relay |
| ETIM 8: | EC001439 - Timer relay |
| eClass: | V11.0 : 27371605 |
| UNSPSC: | 39121519 |
