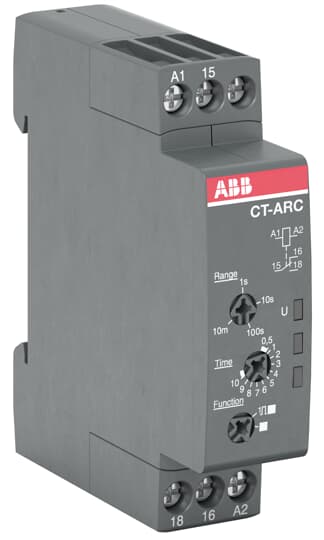

ABB CT-ARC.12 Time relay, Dual function 1c/o, 24-48VDC/24-240VAC, w/o aux.supply 1SVR508120R0000

The CT-ARC.12 is a dual-function electronic time relay from the CT-C timer range. It provides an OFF-delay and impulse-OFF functions without auxiliary voltage with 4 time ranges from 0.05 s to 10 min. This time relay operates with a rated control supply voltage of 24 - 48 V DC / 24 - 240 V AC and has a 1 c/o (SPDT) output rated at 250 V / 4 A.

Specifications

Ordering
EAN:	4013614555633
Minimum Order Quantity:	1 piece
Customs Tariff Number:	85364900
Popular Downloads
Data Sheet, Technical Information:	2CDC110004C0210_01
Instructions and Manuals:	1SVC500020M0001
Dimensions
Product Net Width:	17.5 mm
Product Net Height:	70 mm
Product Net Depth / Length:	63 mm
Product Net Weight:	0.053 kg
Technical
Timer Relay Type:	Impulse OFFTrue OFF-Delay
Time Range:	0.05 s ... 10 min
Rated Control Supply Voltage (Us):	24 ... 240 V AC24 ... 48 V DC
Rated Frequency (f):	50 Hz60 HzDC
Output:	1 c/o (SPDT) contact
Terminal Type:	Screw Terminals
Rated Operational Current AC-12 (Ie):	(230 V) 4 A
Rated Operational Current AC-15 (Ie):	(230 V) 3 A
Rated Operational Current DC-12 (Ie):	(24 V) 4 A
Rated Operational Current DC-13 (Ie):	(24 V) 1.5 A
Minimum Switching Capacity:	12 V100 mA
Rated Impulse Withstand Voltage (Uimp):	Input Circuit 4 kV
Rated Insulation Voltage (Ui):	Input Circuit / Output Circuit 300 V
Degree of Protection:	Housing IP50Terminals IP20
Overvoltage Category:	III
Pollution Degree:	3
Short-Circuit Protective Devices:	Output Circuit NC - F Type Fuses 6 AOutput Circuit NO - F Type Fuses 10 A
Connecting Capacity:	Flexible 1x 0.5 ... 2.5 mm²Flexible 2x 0.5 ... 1.5 mm²Rigid 1x 0.5 ... 4 mm²Rigid 2x 0.5 ... 1.5 mm²
Tightening Torque:	0.5 ... 0.8 N·m
Wire Stripping Length:	7 mm
Recommended Screw Driver:	Pozidriv 10.8 x 4
Mounting Position:	1 ... 6
Mounting on DIN Rail:	TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:	CAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 61812-1UL 508
Technical UL/CSA
Maximum Operating Voltage UL/CSA:	Output Circuit 300 V AC
Contact Rating UL/CSA:	B300
Connecting Capacity UL/CSA:	Flexible 1x 18-14 AWGFlexible 2x 18-16 AWGRigid 1x 20-12 AWGRigid 2x 20-16 AWG
Tightening Torque UL/CSA:	4.43 ... 7.08 in·lb
Environmental
Ambient Air Temperature:	Operation -20 ... +60 °CStorage -40 ... +85 °C
Maximum Operating Altitude Permissible:	Without Derating 2000 m
RoHS Status:	Following EU Directive 2011/65/EU
Certificates and Declarations (Document Number)
CCC Certificate:	CCC_2019010303150608
CQC Certificate:	CQC2019010303150608
cULus Certificate:	cULus_20031209-E140448
Data Sheet, Technical Information:	2CDC110004C0210_01
Declaration of Conformity - CCC:	2020980303000209
Declaration of Conformity - CE:	1SVD981068
Declaration of Conformity - UKCA:	1SVD981068-10
DNV GL Certificate:	DNV_GL_TAA00002TS
EAC Certificate:	RU C-DE.ME77.B.00899
Environmental Information:	1SAC200110H0001
Instructions and Manuals:	1SVC500020M0001
RoHS Information:	1SVD981068
Container Information
Package Level 1 Units:	box 1 piece
Package Level 1 Width:	89 mm
Package Level 1 Depth / Length:	20 mm
Package Level 1 Height:	65 mm
Package Level 1 Gross Weight:	0.065 kg
Package Level 1 EAN:	4013614555633
Classifications
Object Classification Code:	K
ETIM 5:	EC001439 - Timer relay
ETIM 6:	EC001439 - Timer relay
ETIM 7:	EC001439 - Timer relay
ETIM 8:	EC001439 - Timer relay
eClass:	V11.0 : 27371605
UNSPSC:	39121519
