ABB

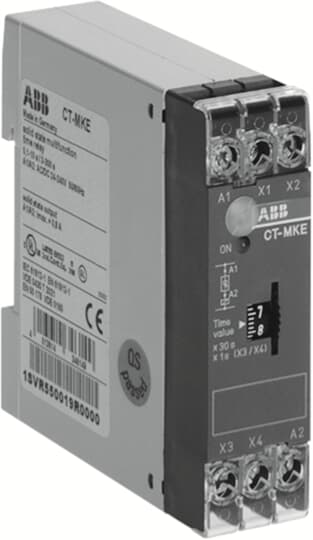

ABB CT-MKE Time relay, solid-state, multif. 1n/o, 0.1-10s/3-300s, 24-240VAC/DC 1SVR550019R0000
ABB CT-MKE Time relay, solid-state, multif. 1n/o, 0.1-10s/3-300s, 24-240VAC/DC 1SVR550019R0000
Regular price
R 893.33 ZAR
Regular price
R 1,672.97 ZAR
Sale price
R 893.33 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The CT-MKE is a multifunction electronic time relay from the CT-E timer range. It provides 4 timing functions with 2 time ranges from 0.1 s to 300 s. This time relay operates with a rated control supply voltage of 24 - 240 V AC / DC and has a solid-state output.
Specifications
| Ordering | |
|---|---|
| EAN: | 4013614346149 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Replacement Product ID (NEW): | 1SVR508010R1300 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC111146D0201 |
| Instructions and Manuals: | 1SVC550000M9000 |
| Dimensions | |
| Product Net Width: | 22.5 mm |
| Product Net Height: | 78 mm |
| Product Net Depth / Length: | 78.5 mm |
| Product Net Weight: | 0.059 kg |
| Technical | |
| Timer Relay Type: | ON-DelayImpulse ONFlasher Starting with ONFlasher Starting with OFF |
| Time Range: | 0.1 ... 10 s3-300 s |
| Rated Control Supply Voltage (Us): | 24 ... 240 V AC/DC |
| Output: | solid-state output |
| Terminal Type: | Screw Terminals |
| Mounting Position: | 1 ... 6 |
| Mounting on DIN Rail: | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards: | CAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 61812-1UL 508 |
| Environmental | |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Certificates and Declarations (Document Number) | |
| cUL Certificate: | cUL508_E140448 |
| Data Sheet, Technical Information: | 2CDC111146D0201 |
| Declaration of Conformity - CE: | 1SVD981002 |
| EAC Certificate: | EAC_RU_C-DE.ME77.B.02016 |
| Environmental Information: | 1SAA981011-2402 |
| Instructions and Manuals: | 1SVC550000M9000 |
| RMRS Certificate: | RMRS_1740021250 |
| RoHS Information: | 1SVD981002 |
| UL Certificate: | UL508_E140448 |
| Container Information | |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 84.2 mm |
| Package Level 1 Depth / Length: | 24.6 mm |
| Package Level 1 Height: | 83.1 mm |
| Package Level 1 Gross Weight: | 0.07 kg |
| Package Level 1 EAN: | 4013614346149 |
| Classifications | |
| Object Classification Code: | K |
| ETIM 4: | EC001439 - Timer relay |
| ETIM 5: | EC001439 - Timer relay |
| ETIM 6: | EC001439 - Timer relay |
| ETIM 7: | EC001439 - Timer relay |
| ETIM 8: | EC001439 - Timer relay |
| eClass: | V11.0 : 27371605 |
| UNSPSC: | 39121519 |
| E-Number (Finland): | 3580845 |
