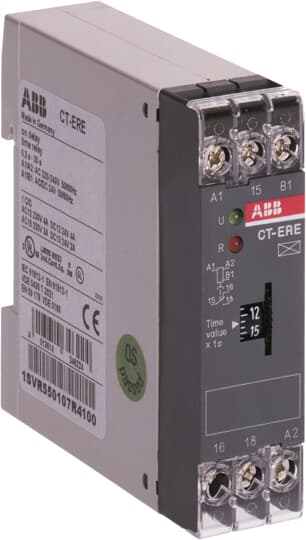

ABB CT-ERE Time relay, ON-delay 1c/o, 0.3-30s, 24VAC/DC 220-240VAC 1SVR550107R4100
ABB CT-ERE Time relay, ON-delay 1c/o, 0.3-30s, 24VAC/DC 220-240VAC 1SVR550107R4100
Regular price
R 584.54 ZAR
Regular price
R 1,094.69 ZAR
Sale price
R 584.54 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The CT-ERE is a single-function electronic time relay from the CT-E timer range. It provides an ON-delay (delay on make) function with a time range from 0.3 s to 30 s. This time relay operates with a rated control supply voltage of 24 V AC / DC / 220 - 240 V AC and has a 1 c/o (SPDT) output rated at 250 V / 4 A.
Specifications
| Ordering | |
|---|---|
| EAN: | 4013614346224 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Replacement Product ID (NEW): | 1SVR508100R0000 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC111143D0201 |
| Instructions and Manuals: | 1SVC550000M9000 |
| Dimensions | |
| Product Net Width: | 22.5 mm |
| Product Net Height: | 78 mm |
| Product Net Depth / Length: | 78.5 mm |
| Product Net Weight: | 0.067 kg |
| Technical | |
| Timer Relay Type: | ON-Delay |
| Time Range: | 0.3 ... 30 s |
| Rated Control Supply Voltage (Us): | 220 ... 240 V AC24 V AC/DC |
| Output: | 1 c/o (SPDT) contact |
| Terminal Type: | Screw Terminals |
| Rated Operational Current AC-12 (Ie): | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie): | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie): | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie): | (24 V) 2 A |
| Mounting Position: | 1 ... 6 |
| Mounting on DIN Rail: | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards: | CAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 61812-1UL 508 |
| Environmental | |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Certificates and Declarations (Document Number) | |
| CQC Certificate: | CQC2010010303393101 |
| cUL Certificate: | cUL508_E140448 |
| Data Sheet, Technical Information: | 2CDC111143D0201 |
| Declaration of Conformity - CCC: | 2020980303000201 |
| Declaration of Conformity - CE: | 1SVD981002 |
| EAC Certificate: | EAC_RU_C-DE.ME77.B.02016 |
| Environmental Information: | 1SAA981011-2402 |
| Instructions and Manuals: | 1SVC550000M9000 |
| RMRS Certificate: | RMRS_1740021250 |
| RoHS Information: | 1SVD981002 |
| UL Certificate: | UL508_E140448 |
| Container Information | |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 84.2 mm |
| Package Level 1 Depth / Length: | 24.6 mm |
| Package Level 1 Height: | 83.1 mm |
| Package Level 1 Gross Weight: | 0.078 kg |
| Package Level 1 EAN: | 4013614346224 |
| Classifications | |
| Object Classification Code: | K |
| ETIM 4: | EC001439 - Timer relay |
| ETIM 5: | EC001439 - Timer relay |
| ETIM 6: | EC001439 - Timer relay |
| ETIM 7: | EC001439 - Timer relay |
| ETIM 8: | EC001439 - Timer relay |
| eClass: | V11.0 : 27371605 |
| UNSPSC: | 39121519 |
| E-Number (Finland): | 2712610 |
| E-Number (Sweden): | 4033078 |
