ABB CM-MSE Thermistor motor protection relay 1n/o, 220-240VAC 1SVR550801R9300
ABB CM-MSE Thermistor motor protection relay 1n/o, 220-240VAC 1SVR550801R9300
Regular price
R 593.43 ZAR
Regular price
R 1,078.96 ZAR
Sale price
R 593.43 ZAR
Unit price
/
per

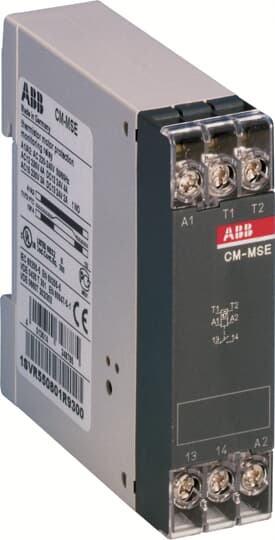

The CM-MSE relay is from the CM thermistor motor protection relay range. This relay operates with a rated control supply voltage of 220-240 V AC and has a 1 n/o output contact rated at 250 V / 4 A. It features one sensor circuit for monitoring of PTC temperature sensors or bimetals. This relay offers automatic reset and works according to the closed-circuit principle. A sealable transparent cover for protection against unauthorized changes is available as accessory
Specifications
Ordering | |
---|---|
EAN: | 4013614348785 |
Minimum Order Quantity: | 1 piece |
Customs Tariff Number: | 85364900 |
Dimensions | |
Product Net Width: | 22.5 mm |
Product Net Height: | 78 mm |
Product Net Depth / Length: | 78.5 mm |
Product Net Weight: | 0.104 kg |
Container Information | |
Package Level 1 Units: | box 1 piece |
Package Level 1 Width: | 23 mm |
Package Level 1 Height: | 82 mm |
Package Level 1 Depth / Length: | 82 mm |
Package Level 1 Gross Weight: | 0.115 kg |
Package Level 1 EAN: | 4013614348785 |
Technical | |
Function: | 1 sensor circuitAuto reset |
Rated Control Supply Voltage (Us): | 220 ... 240 V AC |
Rated Frequency (f): | Supply Circuit 50/60 Hz |
Output: | 1 n/o contact |
Terminal Type: | Screw Terminals |
Rated Operational Current AC-12 (Ie): | (230 V) 4 A |
Rated Operational Current AC-15 (Ie): | (230 V) 3 A |
Rated Operational Current DC-12 (Ie): | (24 V) 4 A |
Rated Operational Current DC-13 (Ie): | (24 V) 2 A |
Rated Insulation Voltage (Ui): | Measuring Circuit / Output Circuit 250 VSupply Circuit / Output Circuit 250 V |
Rated Impulse Withstand Voltage (Uimp): | Output Circuit 4 kV |
Degree of Protection: | Housing IP50Terminals IP20 |
Short-Circuit Protective Devices: | Output Circuit NC - F Type Fuses 10 AOutput Circuit NO - F Type Fuses 10 A |
Connecting Capacity: | Flexible with Ferrule 2x 1.5 mm²Flexible 2x 1 ... 1.5 mm²Rigid 2x 0.75 ... 1.5 mm² |
Tightening Torque: | 0.6 ... 0.8 N·m |
Wire Stripping Length: | 10 mm |
Mounting Position: | 1 ... 6 |
Mounting on DIN Rail: | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
Standards: | CAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 61000-6-2IEC/EN 61000-6-3UL 508 |
Environmental | |
Ambient Air Temperature: | Operation -20 ... +60 °CStorage -40 ... +85 °C |
Maximum Operating Altitude Permissible: | Without Derating 2000 m |
RoHS Status: | Following EU Directive 2011/65/EU |
Technical UL/CSA | |
Maximum Operating Voltage UL/CSA: | Output Circuit 250 V AC |
Connecting Capacity UL/CSA: | Flexible with Ferrule 2x 16 AWGFlexible 2x 18-16 AWGRigid 2x 18-16 AWG |
Tightening Torque UL/CSA: | 7.08 in·lb |
Certificates and Declarations (Document Number) | |
CB Certificate: | CB_DK-8880 |
CCC Certificate: | CCC_2013010303605960 |
CQC Certificate: | CQC2013010303605960 |
cUL Certificate: | cUL508_E140448 |
Data Sheet, Technical Information: | 2CDC110004C0210_02 |
Declaration of Conformity - CCC: | 2020980303000202 |
Declaration of Conformity - CE: | 1SVD981023-00 |
Declaration of Conformity - UKCA: | 1SVD981023-10 |
EAC Certificate: | EAC_RU_C-DE.ME77.B.03206 |
Instructions and Manuals: | 1SVC550000M9000 |
RoHS Information: | 1SVD981023-00 |
UL Certificate: | UL508_E140448 |
Classifications | |
Object Classification Code: | B |
ETIM 4: | EC001446 - Temperature monitoring relay |
ETIM 5: | EC002568 - Temperature monitor (motor protection) |
ETIM 6: | EC002568 - Relay for thermistor protection (PTC) |
ETIM 7: | EC002568 - Relay for thermistor protection (PTC) |
ETIM 8: | EC002568 - Relay for thermistor protection (PTC) |
eClass: | V11.0 : 27371503 |
E-Number (Finland): | 3580831 |
E-Number (Sweden): | 3860213 |
