ABB CM-ENE MIN Liquid level relay 1n/o, 220-240VAC 1SVR550851R9500
ABB CM-ENE MIN Liquid level relay 1n/o, 220-240VAC 1SVR550851R9500
Regular price
R 707.05 ZAR
Regular price
R 1,285.55 ZAR
Sale price
R 707.05 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

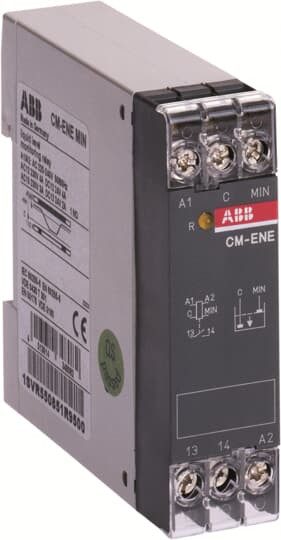

The CM-ENE MIN belongs to the CM liquid level monitoring relay range. It operates with a rated control supply voltage of 220-240 V AC and has a 1 n/o output contact. It protects pumps against dry running. The output relay works according to the open-circuit principle. The sensitivity is 0-100 kOhm fixed. The device offers screw connection terminals.
Specifications
| Ordering | |
|---|---|
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC110004C0210_02 |
| Instructions and Manuals: | 1SVC550000M9000 |
| Dimensions | |
| Product Net Width: | 22.5 mm |
| Product Net Height: | 78 mm |
| Product Net Depth / Length: | 78.5 mm |
| Product Net Weight: | 0.106 kg |
| Technical | |
| Function: | Draining monitoring |
| Measuring Range: | 0 ... 100 kΩ |
| Number of Electrodes: | 2 |
| Rated Control Supply Voltage (Us): | 220 ... 240 V AC |
| Rated Frequency (f): | Supply Circuit 50/60 Hz |
| Output: | 1 n/o contact |
| Terminal Type: | Screw Terminals |
| Rated Operational Current AC-12 (Ie): | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie): | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie): | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie): | (24 V) 2 A |
| Rated Insulation Voltage (Ui): | Measuring Circuit / Output Circuit 250 VSupply Circuit / Measuring Circuit 250 VSupply Circuit / Output Circuit 250 V |
| Rated Impulse Withstand Voltage (Uimp): | Measuring Circuit / Output Circuit 4 kVSupply Circuit / Measuring Circuit 4 kVSupply Circuit / Output Circuit 4 kV |
| Degree of Protection: | Housing IP50Terminals IP20 |
| Short-Circuit Protective Devices: | Output Circuit NO - F Type Fuses 10 A |
| Connecting Capacity: | Flexible with Ferrule 2x 0.75 ... 1.5 mm²Flexible 2x 1 ... 1.5 mm²Rigid 2x 0.75 ... 1.5 mm² |
| Tightening Torque: | 0.6 ... 0.8 N·m |
| Wire Stripping Length: | 10 mm |
| Mounting Position: | 1 ... 6 |
| Mounting on DIN Rail: | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards: | CAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 61000-6-2IEC/EN 61000-6-3UL 508 |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | Output Circuit 300 V AC |
| Contact Rating UL/CSA: | B300 |
| Connecting Capacity UL/CSA: | Flexible with Ferrule 2x 18-16 AWGFlexible 2x 18-16 AWGRigid 2x 18-16 AWG |
| Tightening Torque UL/CSA: | 7.08 in·lb |
| Environmental | |
| Ambient Air Temperature: | Operation -20 ... +60 °CStorage -40 ... +85 °C |
| Maximum Operating Altitude Permissible: | Without Derating 2000 m |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Certificates and Declarations (Document Number) | |
| CB Certificate: | CB_DK-8880 |
| CCC Certificate: | CCC_2013010303605960 |
| CQC Certificate: | CQC2013010303605960 |
| cUL Certificate: | cUL508_E140448 |
| Declaration of Conformity - CCC: | 2020980303000202 |
| Declaration of Conformity - CE: | 1SVD981024-00 |
| Declaration of Conformity - UKCA: | 1SVD981024-10 |
| EAC Certificate: | EAC_RU_C-DE.ME77.B.03206 |
| Instructions and Manuals: | 1SVC550000M9000 |
| RoHS Information: | 1SVD981024-00 |
| UL Certificate: | UL508_E140448 |
| Container Information | |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 24 mm |
| Package Level 1 Height: | 83 mm |
| Package Level 1 Depth / Length: | 25 mm |
| Package Level 1 Gross Weight: | 0.118 kg |
| Package Level 1 EAN: | 4013614348082 |
| Classifications | |
| Object Classification Code: | B |
| ETIM 4: | EC001447 - (Fill) level monitoring relay |
| ETIM 5: | EC001447 - (Fill) level monitoring relay |
| ETIM 6: | EC001447 - (Fill) level monitoring relay |
| ETIM 7: | EC001447 - (Fill) level monitoring relay |
| ETIM 8: | EC001447 - (Fill) level monitoring relay |
| eClass: | V11.0 : 27371813 |
| E-Number (Finland): | 3580837 |
| E-Number (Sweden): | 3860805 |
