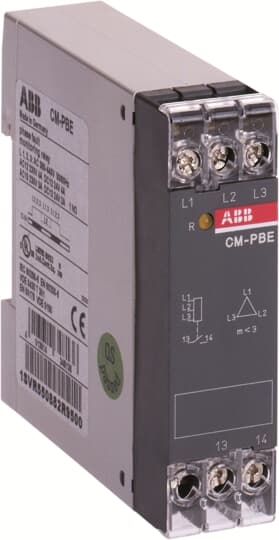

ABB CM-PBE Phase loss monitoring relay 1n/o, L1,2,3= 380-440VAC 1SVR550882R9500

The CM-PBE relay is from the CM three-phase monitors range. This relay operates with a rated control supply voltage / three-phase measuring voltage of 380-440 V AC and has a 1 n/o output (closed circuit principle) with contacts rated at 250 V / 4 A. The CM-PBE monitors the phase loss and undervoltage. The corresponding threshold values are fixed. The relay is suitable for monitoring of three phase mains.

Specifications

Ordering
Minimum Order Quantity:	1 piece
Customs Tariff Number:	85364900
Popular Downloads
Data Sheet, Technical Information:	2CDC112194D0201
Instructions and Manuals:	1SVC550510M0001
Dimensions
Product Net Width:	22.5 mm
Product Net Depth / Length:	78.5 mm
Product Net Height:	78 mm
Product Net Weight:	0.066 kg
Technical
Function:	Phase failure detection
Standards:	CAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 61000-6-2IEC/EN 61000-6-3UL 508
Measuring Range:	(L-L) 380 ... 440 V AC
Rated Control Supply Voltage (Us):	(L-L) 380 ... 440 V AC
Rated Frequency (f):	Supply Circuit 50/60 Hz
Output:	1 n/o contact
Time Range:	500 ms start-up delay150 ms tripping delay
Terminal Type:	Screw Terminals
Rated Operational Current AC-12 (Ie):	(230 V) 4 A
Rated Operational Current AC-15 (Ie):	(230 V) 3 A
Rated Operational Current DC-12 (Ie):	(24 V) 4 A
Rated Operational Current DC-13 (Ie):	(24 V) 2 A
Rated Insulation Voltage (Ui):	Input Circuit / Output Circuit 400 V
Rated Impulse Withstand Voltage (Uimp):	Input Circuit 4 kV
Degree of Protection:	Housing IP50Terminals IP20
Overvoltage Category:	III
Pollution Degree:	3
Short-Circuit Protective Devices:	Output Circuit NC - F Type Fuses 10 AOutput Circuit NO - F Type Fuses 10 A
Connecting Capacity:	Flexible with Ferrule 2x 0.75 ... 1.5 mm²Flexible 2x 1 ... 1.5 mm²Rigid 2x 0.75 ... 1.5 mm²
Tightening Torque:	0.6 ... 0.8 N·m
Wire Stripping Length:	10 mm
Mounting Position:	1 ... 6
Mounting on DIN Rail:	TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Environmental
Ambient Air Temperature:	Operation -20 ... +60 °CStorage -40 ... +85 °C
Maximum Operating Altitude Permissible:	Without Derating 2000 m
RoHS Status:	Following EU Directive 2011/65/EU
Technical UL/CSA
Maximum Operating Voltage UL/CSA:	Output Circuit 250 V AC
Contact Rating UL/CSA:	B300
Connecting Capacity UL/CSA:	Flexible with Ferrule 2x 18-16 AWGFlexible 2x 18-16 AWGRigid 2x 18-16 AWG
Tightening Torque UL/CSA:	7.08 in·lb
Certificates and Declarations (Document Number)
CB Certificate:	CB_DK-8880
CCC Certificate:	CCC_2013010303605960
CQC Certificate:	CQC2013010303605960
cUL Certificate:	cUL508_E140448
Declaration of Conformity - CCC:	2020980303000202
Declaration of Conformity - CE:	1SVD981025-00
Declaration of Conformity - UKCA:	1SVD981025-10
EAC Certificate:	EAC_RU_C-DE.ME77.B.03206
Instructions and Manuals:	1SVC550510M0001
RoHS Information:	1SVD981025-00
UL Certificate:	UL508_E140448
Container Information
Package Level 1 Units:	box 1 piece
Package Level 1 Width:	23 mm
Package Level 1 Height:	82 mm
Package Level 1 Depth / Length:	82 mm
Package Level 1 Gross Weight:	0.078 kg
Package Level 1 EAN:	4013614348136
Classifications
Object Classification Code:	B
ETIM 4:	EC001441 - Phase monitoring relay
ETIM 5:	EC001441 - Phase monitoring relay
ETIM 6:	EC001441 - Phase monitoring relay
ETIM 7:	EC001441 - Phase monitoring relay
eClass:	V11.0 : 27371803
UNSPSC:	39121536
E-Number (Finland):	3580843
ETIM 8:	EC001441 - Phase monitoring relay
