ABB CT-MFS.21S Time relay, multifunction 2c/o, 24-240VAC/DC 1SVR730010R0200
ABB CT-MFS.21S Time relay, multifunction 2c/o, 24-240VAC/DC 1SVR730010R0200
Regular price
R 1,354.21 ZAR
Regular price
R 2,462.20 ZAR
Sale price
R 1,354.21 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

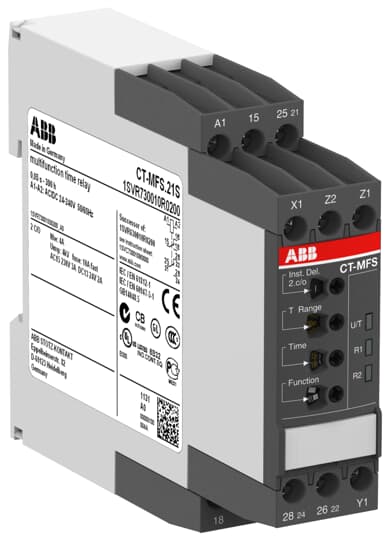

The CT-MFS.21S is a multifunction electronic time relay from the CT-S timer range. It provides 10 timing functions with 10 time ranges from 0.05 s to 300 h. This time relay operates with a rated control supply voltage of 24 - 240 V AC / DC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. Two control inputs work with volt-free (floating) triggering.The CT-MFS.21S offers the possibility of connecting a remote potentiometer for the fine adjustment of the time delay. The second of the c/o contacts can be selected as an instantaneous contact. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers screw connection technology with double-chamber cage connection terminals.
Specifications
| Ordering | |
|---|---|
| EAN: | 4016779851367 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC110004C0210_01 |
| Instructions and Manuals: | 1SVC730050M1000 |
| Dimensions | |
| Product Net Width: | 22.5 mm |
| Product Net Height: | 85.6 mm |
| Product Net Depth / Length: | 103.7 mm |
| Product Net Weight: | 0.145 kg |
| Technical | |
| Timer Relay Type: | Impulse OFFImpulse ONOFF-DelayON-DelayStar-Delta |
| Time Range: | 0.05 s ... 300 h |
| Rated Control Supply Voltage (Us): | 24 ... 240 V AC/DC |
| Rated Frequency (f): | DC50 Hz60 Hz |
| Output: | 2 c/o (SPDT) contacts |
| Terminal Type: | Screw Terminals |
| Rated Operational Current AC-12 (Ie): | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie): | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie): | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie): | (24 V) 2 A |
| Minimum Switching Capacity: | 12 V10 mA |
| Rated Impulse Withstand Voltage (Uimp): | Input Circuit 4 kVOutput Circuit 1 / Output Circuit 2 4 kV |
| Rated Insulation Voltage (Ui): | Input Circuit / Output Circuit 500 VOutput Circuit 1 / Output Circuit 2 300 V |
| Degree of Protection: | Housing IP50Terminals IP20 |
| Overvoltage Category: | III |
| Pollution Degree: | 3 |
| Short-Circuit Protective Devices: | Output Circuit NC - F Type Fuses 6 AOutput Circuit NO - F Type Fuses 10 A |
| Electrical Durability: | AC-12 100000 cycle |
| Mechanical Durability: | 30000000 cycle |
| Connecting Capacity: | Flexible with Ferrule 1x 0.5 ... 2.5 mm²Flexible with Ferrule 2x 0.5 ... 1.5 mm²Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²Flexible 1x 0.5 ... 2.5 mm²Flexible 2x 0.5 ... 1.5 mm²Rigid 1x 0.5 ... 4 mm²Rigid 2x 0.5 ... 2.5 mm² |
| Tightening Torque: | 0.6 ... 0.8 N·m |
| Wire Stripping Length: | 8 mm |
| Recommended Screw Driver: | 4.50.8 x 4Pozidriv 1 |
| Mounting Position: | 1 ... 6 |
| Mounting on DIN Rail: | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Standards: | CAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 61812-1UL 508 |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | Output Circuit 300 V AC |
| Contact Rating UL/CSA: | B300 |
| Connecting Capacity UL/CSA: | Flexible 1x 18-14 AWGFlexible 2x 18-16 AWGRigid 2x 20-14 AWGRigid 1x 20-12 AWG |
| Tightening Torque UL/CSA: | 7.08 in·lb |
| Environmental | |
| Ambient Air Temperature: | Operation -40 ... +60 °CStorage -40 ... +85 °C |
| Maximum Operating Altitude Permissible: | Without Derating 2000 m |
| Resistance to Shock acc. to IEC 60068-2-27: | 30g / 3 shocks / 11 ms |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Certificates and Declarations (Document Number) | |
| CQC Certificate: | CQC2007010303255979 |
| cULus Certificate: | cULus508_20110711-E140448A |
| Data Sheet, Technical Information: | 2CDC110004C0210_01 |
| Declaration of Conformity - CCC: | 2020980303000207 |
| Declaration of Conformity - CE: | 1SVD981008 |
| Declaration of Conformity - UKCA: | 1SVD981008-10 |
| DNV GL Certificate: | DNV_GL_TAA00000XR |
| EAC Certificate: | EAC_RU_C-DE.ME77.B.00568/20 |
| Environmental Information: | 1SAC200095H0001 |
| Instructions and Manuals: | 1SVC730050M1000 |
| RMRS Certificate: | RMRS_1740021250 |
| RoHS Information: | 1SVD981008 |
| Container Information | |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 97 mm |
| Package Level 1 Depth / Length: | 30 mm |
| Package Level 1 Height: | 109 mm |
| Package Level 1 Gross Weight: | 0.167 kg |
| Package Level 1 EAN: | 4016779851367 |
| Classifications | |
| Object Classification Code: | K |
| ETIM 4: | EC001439 - Timer relay |
| ETIM 5: | EC001439 - Timer relay |
| ETIM 6: | EC001439 - Timer relay |
| ETIM 7: | EC001439 - Timer relay |
| ETIM 8: | EC001439 - Timer relay |
| eClass: | V11.0 : 27371605 |
| UNSPSC: | 39121519 |
| E-Number (Finland): | 2712194 |
| E-Number (Sweden): | 4033107 |
