Part Number: 1SVR730040R3300
Couldn't load pickup availability
Refresh

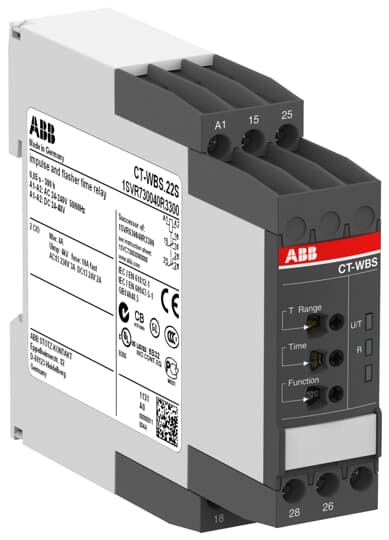

The CT-WBS.22S is an electronic impulse and flasher time relay from the CT-S timer range. It provides 7 timing functions with 10 time ranges from 0.05 s to 300 h. This time relay operates with a rated control supply voltage of 24 - 48 V DC / 24 - 240 V AC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers screw connection technology with double-chamber cage connection terminals.
Specifications
Ordering
EAN:
4016779851435
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900
Popular Downloads
Data Sheet, Technical Information:
2CDC110004C0210_01
Instructions and Manuals:
1SVC730050M1000
Dimensions
Product Net Width:
22.5 mm
Product Net Height:
85.6 mm
Product Net Depth / Length:
103.7 mm
Product Net Weight:
0.123 kg
Technical
Timer Relay Type:
Flasher Starting with OFFFlasher Starting with ONImpulse ONON-DelayAdjustable Impulse with Fixed Time DelayFixed Impulse with Adjustable Time DelayON / OFF Function
Time Range:
0.05 s ... 300 h
Rated Control Supply Voltage (Us):
24 ... 240 V AC24 ... 48 V DC
Rated Frequency (f):
50 Hz60 HzDC
Output:
2 c/o (SPDT) contacts
Terminal Type:
Screw Terminals
Rated Operational Current AC-12 (Ie):
(230 V) 4 A
Rated Operational Current AC-15 (Ie):
(230 V) 3 A
Rated Operational Current DC-12 (Ie):
(24 V) 4 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
Minimum Switching Capacity:
12 V10 mA
Rated Impulse Withstand Voltage (Uimp):
Input Circuit 4 kVOutput Circuit 1 / Output Circuit 2 4 kV
Rated Insulation Voltage (Ui):
Input Circuit / Output Circuit 500 VOutput Circuit 1 / Output Circuit 2 300 V
Degree of Protection:
Housing IP50Terminals IP20
Overvoltage Category:
III
Pollution Degree:
3
Short-Circuit Protective Devices:
Output Circuit NC - F Type Fuses 6 AOutput Circuit NO - F Type Fuses 10 A
Electrical Durability:
AC-12 100000 cycle
Mechanical Durability:
30000000 cycle
Connecting Capacity:
Flexible with Ferrule 1x 0.5 ... 2.5 mm?ýFlexible with Ferrule 2x 0.5 ... 1.5 mm?ýFlexible with Insulated Ferrule 1x 0.5 ... 2.5 mm?ýFlexible with Insulated Ferrule 2x 0.5 ... 1.5 mm?ýFlexible 1x 0.5 ... 2.5 mm?ýFlexible 2x 0.5 ... 1.5 mm?ýRigid 1x 0.5 ... 4 mm?ýRigid 2x 0.5 ... 2.5 mm?ý
Tightening Torque:
0.6 ... 0.8 N?úm
Wire Stripping Length:
8 mm
Recommended Screw Driver:
Pozidriv 10.8 x 44.5
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
CAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 61812-1UL 508
Technical UL/CSA
Maximum Operating Voltage UL/CSA:
Output Circuit 300 V AC
Contact Rating UL/CSA:
B300
Connecting Capacity UL/CSA:
Flexible 1x 18-14 AWGFlexible 2x 18-16 AWGRigid 1x 20-12 AWGRigid 2x 20-14 AWG
Tightening Torque UL/CSA:
7.08 in?úlb
Environmental
Ambient Air Temperature:
Operation -25 ... +60 ?øCStorage -40 ... +85 ?øC
Maximum Operating Altitude Permissible:
Without Derating 2000 m
RoHS Status:
Following EU Directive 2011/65/EU
Certificates and Declarations (Document Number)
CQC Certificate:
CQC2007010303255979
cULus Certificate:
cULus508_20110711-E140448A
Data Sheet, Technical Information:
2CDC110004C0210_01
Declaration of Conformity - CCC:
2020980303000207
Declaration of Conformity - CE:
1SVD981008
Declaration of Conformity - UKCA:
1SVD981008-10
DNV GL Certificate:
DNV_GL_TAA00000XR
EAC Certificate:
EAC_RU_C-DE.ME77.B.00568/20
Environmental Information:
1SAC200095H0001
Instructions and Manuals:
1SVC730050M1000
RMRS Certificate:
RMRS_1740021250
RoHS Information:
1SVD981008
Container Information
Package Level 1 Units:
box 1 piece
Package Level 1 Width:
97 mm
Package Level 1 Depth / Length:
30 mm
Package Level 1 Height:
109 mm
Package Level 1 Gross Weight:
0.145 kg
Package Level 1 EAN:
4016779851435
Classifications
Object Classification Code:
K
ETIM 4:
EC001439 - Timer relay
ETIM 5:
EC001439 - Timer relay
ETIM 6:
EC001439 - Timer relay
ETIM 7:
EC001439 - Timer relay
ETIM 8:
EC001439 - Timer relay
eClass:
V11.0 : 27371605
UNSPSC:
39121519
E-Number (Finland):
2712201
E-Number (Sweden):
4033113
