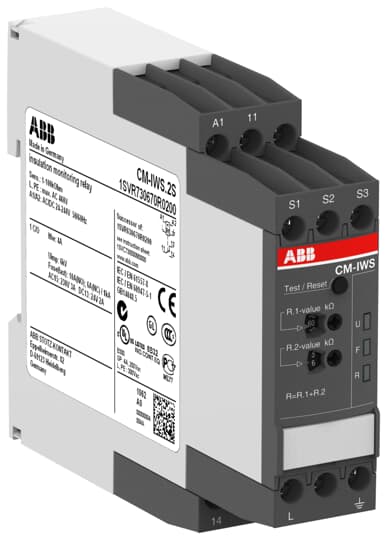

ABB CM-IWS.2S Insulation monitoring relay 1c/o, 1-100kOhm, 24-240VAC/DC 1SVR730670R0200

The CM-IWS.2S serves to monitor insulation resistance in accordance with IEC 61557-8 in unearthed IT AC systems with a voltage up to 400 V AC. The CM-IWS.2 can be configured to the requirements of the applications and therefore used multi-functional.

Specifications

Ordering
EAN:	4016779852616
Minimum Order Quantity:	1 piece
Customs Tariff Number:	85364900
Container Information
Package Level 1 Units:	box 1 piece
Package Level 1 Width:	97 mm
Package Level 1 Height:	109 mm
Package Level 1 Depth / Length:	30 mm
Package Level 1 Gross Weight:	0.166 kg
Package Level 1 EAN:	4016779852616
Dimensions
Product Net Width:	22.5 mm
Product Net Depth / Length:	103.7 mm
Product Net Height:	85.6 mm
Product Net Weight:	0.141 kg
Technical
Function:	Unearthed AC systemsUp to 400 V AC
Measuring Range:	1 ... 100 kΩ
Rated Control Supply Voltage (Us):	24 ... 240 V AC/DC
Output:	1 c/o (SPDT) contact
System Leakage Capacitance (CE):	10 µF
Terminal Type:	Screw Terminals
Environmental
RoHS Status:	Following EU Directive 2011/65/EU
Certificates and Declarations (Document Number)
CB Certificate:	CB_DK-30302-A1-UL
CCC Certificate:	CCC_2010010303438770
CQC Certificate:	CQC2010010303438770
cULus Certificate:	cULus508_20120727-E140448
Data Sheet, Technical Information:	2CDC112196D0201
Declaration of Conformity - CCC:	2020980303000184
Declaration of Conformity - CE:	1SVD981011-00
Declaration of Conformity - UKCA:	1SVD981011-10
DNV GL Certificate:	DNV_GL_TAA000017C
EAC Certificate:	EAC_RU_C-DE.ME77.B.03424
Instructions and Manuals:	1SVC730550M0000
RoHS Information:	1SVD981011-00
Classifications
Object Classification Code:	B
ETIM 4:	EC001444 - Insulation and earth fault monitoring relay
ETIM 5:	EC001444 - Insulation and earth fault monitoring relay
ETIM 6:	EC001444 - Insulation and earth fault monitoring relay
ETIM 7:	EC001444 - Insulation and earth fault monitoring relay
eClass:	V11.0 : 27371807
E-Number (Finland):	2712262
E-Number (Sweden):	3860656
