ABB CM-TCS.21S Temperature monitoring relay Temp.-range -50...+50?ª’ÿ?¯C, 24VAC/DC 1SVR730740R9100

ABB CM-TCS.21S Temperature monitoring relay Temp.-range -50...+50?ª’ÿ?¯C, 24VAC/DC 1SVR730740R9100

R 2,002.78 ZAR
R 3,641.42 ZAR R 2,002.78 ZAR
Sale Sold out

Part Number:1SVR730740R9100

Shipping calculated at checkout.

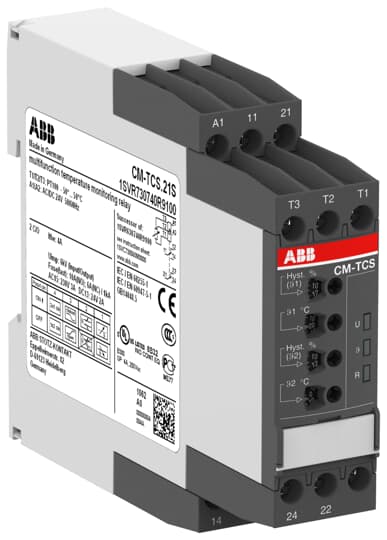

The CM-TCS.21S relay is from the CM temperature monitors range. This relay operates with a rated control supply voltage of 24 V AC / DC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. The CM-TCS.21S is able to measure temperature with 1 sensor circuit using PT100 sensor. The CM-TCS.21S monitors overtemperature, undertemperature and window monitoring with 2 thresholds. The corresponding threshold values are adjustable. The temperature measuring range is -50..+50?øC. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers screw connection technology with double-chamber cage connection terminals.

Specifications

Ordering
EAN: 4016779852746
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85364900
Popular Downloads
Data Sheet, Technical Information: 2CDC112199D0201
Instructions and Manuals: 1SVC730560M1001
Dimensions
Product Net Width: 22.5 mm
Product Net Depth / Length: 103.7 mm
Product Net Height: 85.6 mm
Product Net Weight: 0.138 kg
Technical
Function: Overtemperature monitoringUndertemperature monitoringOver- and undertemperature monitoring
Measuring Range: -50 ... +50 ?øC
Sensor Type: PT100
Rated Control Supply Voltage (Us): 24 V AC/DC
Rated Frequency (f): Supply Circuit 50 HzSupply Circuit 60 HzSupply Circuit DC
Output: 2 x 1 c/o or 1 x 2 c/o contacts, configurable
Terminal Type: Screw Terminals
Rated Operational Current AC-12 (Ie): (230 V) 4 A
Rated Operational Current AC-15 (Ie): (230 V) 3 A
Rated Operational Current DC-12 (Ie): (24 V) 4 A
Rated Operational Current DC-13 (Ie): (24 V) 2 A
Minimum Switching Capacity: 24 V10 mA
Rated Impulse Withstand Voltage (Uimp): Measuring Circuit / Output Circuit 4 kVOutput Circuit 1 / Output Circuit 2 4 kVSupply Circuit / Measuring Circuit 4 kVSupply Circuit / Output Circuit 4 kV
Rated Insulation Voltage (Ui): Measuring Circuit / Output Circuit 300 VOutput Circuit 1 / Output Circuit 2 300 VSupply Circuit / Measuring Circuit 300 VSupply Circuit / Output Circuit 300 V
Degree of Protection: Housing IP50Terminals IP20
Overvoltage Category: III
Pollution Degree: 3
Short-Circuit Protective Devices: Output Circuit NC - F Type Fuses 6 AOutput Circuit NO - F Type Fuses 10 A
Electrical Durability: AC-12 100000 cycle
Mechanical Durability: 30000000 cycle
Connecting Capacity: Flexible with Ferrule 1x 0.5 ... 2.5 mm?ýFlexible with Ferrule 2x 0.5 ... 1.5 mm?ýFlexible with Insulated Ferrule 1x 0.5 ... 2.5 mm?ýFlexible with Insulated Ferrule 2x 0.5 ... 1.5 mm?ýFlexible 1x 0.5 ... 2.5 mm?ýFlexible 2x 0.5 ... 1.5 mm?ýRigid 1x 0.5 ... 4 mm?ýRigid 2x 0.5 ... 2.5 mm?ý
Tightening Torque: 0.6 ... 0.8 N?úm
Wire Stripping Length: 8 mm
Recommended Screw Driver: Pozidriv 14.50.8 x 4
Mounting Position: 1 ... 6
Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards: CAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 60255-27IEC/EN 61000-6-2IEC/EN 61000-6-3UL 508
Technical UL/CSA
Maximum Operating Voltage UL/CSA: Output Circuit 300 V AC
Contact Rating UL/CSA: B300
Connecting Capacity UL/CSA: Flexible 1x 18-14 AWGFlexible 2x 18-16 AWGRigid 1x 20-12 AWGRigid 2x 20-14 AWG
Tightening Torque UL/CSA: 7.08 in?úlb
Environmental
Ambient Air Temperature: Operation -40 ... +60 ?øCStorage -40 ... +85 ?øC
Maximum Operating Altitude Permissible: Without Derating 2000 m
RoHS Status: Following EU Directive 2011/65/EU
Certificates and Declarations (Document Number)
CCC Certificate: CCC_2018010303056014
CQC Certificate: CQC2007010303243843
cULus Certificate: cULus508_20170922-E140448
Data Sheet, Technical Information: 2CDC112199D0201
Declaration of Conformity - CCC: 2020980303000196
Declaration of Conformity - CE: 1SVD981015-00
Declaration of Conformity - UKCA: 1SVD981015-10
DNV GL Certificate: DNV_GL_TAA000021M
EAC Certificate: EAC_RU_C-DE.ME77.B.03424
Instructions and Manuals: 1SVC730560M1001
RoHS Information: 1SVD981015-00
Container Information
Package Level 1 Units: box 1 piece
Package Level 1 Width: 97 mm
Package Level 1 Height: 109 mm
Package Level 1 Depth / Length: 30 mm
Package Level 1 Gross Weight: 0.163 kg
Package Level 1 EAN: 4016779852746
Classifications
Object Classification Code: B
ETIM 4: EC001446 - Temperature monitoring relay
ETIM 5: EC001446 - Temperature monitoring relay
ETIM 6: EC001446 - Temperature monitoring relay
ETIM 7: EC001446 - Temperature monitoring relay
ETIM 8: EC001446 - Temperature monitoring relay
eClass: V11.0 : 27371810
UNSPSC: 39122331
E-Number (Finland): 2712328
E-Number (Sweden): 3860666
View full details
