ABB CM-SRS.M1S Current monitoring relay 2c/o, B-C=3mA-1A RMS, 24-240VAC/DC 1SVR730840R0600
ABB CM-SRS.M1S Current monitoring relay 2c/o, B-C=3mA-1A RMS, 24-240VAC/DC 1SVR730840R0600
Regular price
R 2,547.07 ZAR
Regular price
R 4,631.04 ZAR
Sale price
R 2,547.07 ZAR
Unit price
/
per
SKU: Part Number:1SVR730840R0600
Shipping calculated at checkout.
Couldn't load pickup availability

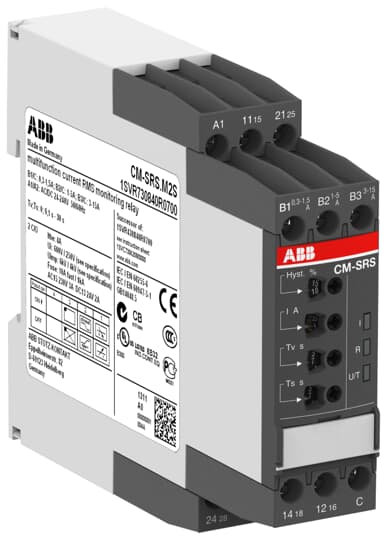

The CM-SRS.M1S is a multifunctional current monitoring relay from the CM single-phase monitors range. This monitoring relay operates with a rated control supply voltage of 24 - 240 V AC / DC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. It provides a RMS measuring principle for DC and AC currents with 3 measuring ranges: 3-30 mA, 10-100 mA and 0.1-1 A. The CM-SRS.M1S offers selection of over- or undercurrent monitoring, open- or closed-circuit operating principle, with or without latching function. The hysteresis is adjustable within a range of 3 to 30 % of the threshold value. The tripping delay and the start-up delay are adjustable over a range of instantaneous to 30 s (0, 0.1-30 s). A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers screw connection technology with double-chamber cage connection terminals.
Specifications
Ordering | |
---|---|
EAN: | 4016779852265 |
Minimum Order Quantity: | 1 piece |
Customs Tariff Number: | 85364900 |
Popular Downloads | |
Data Sheet, Technical Information: | 2CDC112169D0201 |
Instructions and Manuals: | 1SVC730720M1000 |
Dimensions | |
Product Net Width: | 22.5 mm |
Product Net Depth / Length: | 103.7 mm |
Product Net Height: | 85.6 mm |
Product Net Weight: | 0.153 kg |
Technical | |
Function: | Over- or undercurrent monitoring |
Measuring Range: | 3 ... 30 mA10 ... 100 mA0.1 ... 1 A |
Rated Control Supply Voltage (Us): | 24 ... 240 V AC/DC |
Output: | 2 c/o (SPDT) contacts; operating principle selectable |
Time Range: | 0 s or 0.1 ... 30 s start-up delay0 s or 0.1 ... 30 s tripping delay (ON) |
Terminal Type: | Screw Terminals |
Rated Operational Current AC-12 (Ie): | (230 V) 4 A |
Rated Operational Current AC-15 (Ie): | (230 V) 3 A |
Rated Operational Current DC-12 (Ie): | (24 V) 4 A |
Rated Operational Current DC-13 (Ie): | (24 V) 2 A |
Minimum Switching Capacity: | 24 V10 mA |
Rated Insulation Voltage (Ui): | Measuring Circuit / Output Circuit 600 VOutput Circuit 1 / Output Circuit 2 250 VSupply Circuit / Measuring Circuit 600 VSupply Circuit / Output Circuit 250 V |
Rated Impulse Withstand Voltage (Uimp): | Measuring Circuit / Output Circuit 6 kVOutput Circuit 1 / Output Circuit 2 4 kVSupply Circuit / Measuring Circuit 6 kVSupply Circuit / Output Circuit 4 kV |
Degree of Protection: | Housing IP50Terminals IP20 |
Overvoltage Category: | III |
Pollution Degree: | 3 |
Short-Circuit Protective Devices: | Output Circuit NC - F Type Fuses 10 AOutput Circuit NO - F Type Fuses 10 A |
Electrical Durability: | AC-12 100000 cycle |
Mechanical Durability: | 30000000 cycle |
Connecting Capacity: | Flexible with Ferrule 1x 0.5 ... 2.5 mm?ýFlexible with Ferrule 2x 0.5 ... 1.5 mm?ýFlexible with Insulated Ferrule 1x 0.5 ... 2.5 mm?ýFlexible with Insulated Ferrule 2x 0.5 ... 1.5 mm?ýFlexible 1x 0.5 ... 2.5 mm?ýFlexible 2x 0.5 ... 1.5 mm?ýRigid 1x 0.5 ... 4 mm?ýRigid 2x 0.5 ... 2.5 mm?ý |
Tightening Torque: | 0.6 ... 0.8 N?úm |
Wire Stripping Length: | 8 mm |
Recommended Screw Driver: | Pozidriv 14.50.8 x 4 |
Mounting Position: | 1 ... 6 |
Mounting on DIN Rail: | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
Standards: | CAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 60255-27IEC/EN 61000-6-2IEC/EN 61000-6-3UL 508 |
Technical UL/CSA | |
Maximum Operating Voltage UL/CSA: | Output Circuit 300 V AC |
Contact Rating UL/CSA: | B300 |
Connecting Capacity UL/CSA: | Flexible 1x 18-14 AWGFlexible 2x 18-16 AWGRigid 1x 20-12 AWGRigid 2x 20-14 AWG |
Tightening Torque UL/CSA: | 7.08 in?úlb |
Environmental | |
Ambient Air Temperature: | Operation -20 ... +60 ?øCStorage -40 ... +85 ?øC |
Maximum Operating Altitude Permissible: | Without Derating 2000 m |
RoHS Status: | Following EU Directive 2011/65/EU |
Certificates and Declarations (Document Number) | |
CB Certificate: | CB_DK-28255-UL |
CQC Certificate: | CQC2007010303243843 |
cULus Certificate: | cULus508_20120203-E140448 |
Data Sheet, Technical Information: | 2CDC112169D0201 |
Declaration of Conformity - CCC: | 2020980303000196 |
Declaration of Conformity - CE: | 1SVD981013-00 |
Declaration of Conformity - UKCA: | 1SVD981013-10 |
DNV GL Certificate: | DVN_GL_TAA0000293 |
EAC Certificate: | EAC_RU_C-DE.ME77.B.03424 |
Instructions and Manuals: | 1SVC730720M1000 |
RoHS Information: | 1SVD981013-00 |
Container Information | |
Package Level 1 Units: | box 1 piece |
Package Level 1 Width: | 97 mm |
Package Level 1 Height: | 109 mm |
Package Level 1 Depth / Length: | 30 mm |
Package Level 1 Gross Weight: | 0.175 kg |
Package Level 1 EAN: | 4016779852265 |
Classifications | |
Object Classification Code: | B |
ETIM 4: | EC001440 - Current monitoring relay |
ETIM 5: | EC001440 - Current monitoring relay |
ETIM 6: | EC001440 - Current monitoring relay |
ETIM 7: | EC001440 - Current monitoring relay |
ETIM 8: | EC001440 - Current monitoring relay |
eClass: | V11.0 : 27371802 |
UNSPSC: | 39121514 |
E-Number (Finland): | 2712319 |
E-Number (Sweden): | 3860629 |
