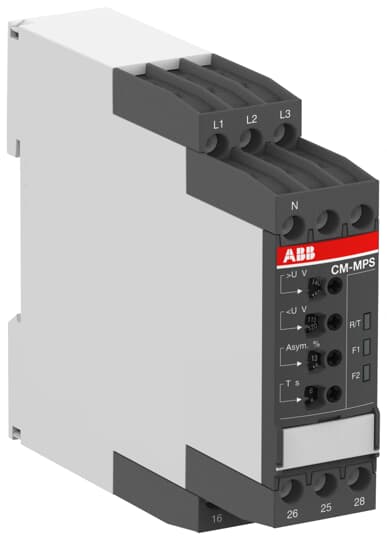

ABB CM-MPS.41S Three-phase monitoring relay 2c/o, 0,0.1-30s, L1-L2-L3=3x300-500VAC 1SVR730884R3300
ABB CM-MPS.41S Three-phase monitoring relay 2c/o, 0,0.1-30s, L1-L2-L3=3x300-500VAC 1SVR730884R3300
Regular price
R 2,222.22 ZAR
Regular price
R 4,161.61 ZAR
Sale price
R 2,222.22 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The CM-MPS.41S is a multifunctional relay from the CM three-phase monitors range. It operates with a rated control supply voltage / three-phase measuring voltage of 300-500 V AC 50/60 Hz and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. This relay monitors all phase parameters such as over/undervoltage, phase unbalance and phase failure. The corresponding threshold values are adjustable. Phase sequence monitoring as well as an ON or OFF tripping delay are selectable. The tripping delay is adjustable over a range of instantaneous to 30 s (0, 0.1-30 s). A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers screw connection technology with double-chamber cage connection terminals.
Specifications
| Ordering | |
|---|---|
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC112206D0201 |
| Instructions and Manuals: | 1SVC730730M1000 |
| Dimensions | |
| Product Net Width: | 22.5 mm |
| Product Net Depth / Length: | 103.7 mm |
| Product Net Height: | 85.6 mm |
| Product Net Weight: | 0.14 kg |
| Technical | |
| Function: | Phase failure detectionPhase sequence monitoringOver- and undervoltage monitoringPhase unbalance detection |
| Standards: | CAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 60255-27IEC/EN 61000-6-2IEC/EN 61000-6-3UL 508 |
| Measuring Range: | (L-L) 300 ... 500 V AC |
| Rated Control Supply Voltage (Us): | (L-L) 300 ... 500 V AC |
| Rated Frequency (f): | Supply Circuit 50/60 Hz |
| Output: | 2 c/o (SPDT) contacts |
| Time Range: | 200 ms start-up delay0 s or 0.1 ... 30 s tripping delay (ON or OFF) |
| Terminal Type: | Screw Terminals |
| Rated Operational Current AC-12 (Ie): | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie): | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie): | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie): | (24 V) 2 A |
| Minimum Switching Capacity: | 24 V10 mA |
| Rated Insulation Voltage (Ui): | Input Circuit / Output Circuit 600 VOutput Circuit 1 / Output Circuit 2 300 V |
| Rated Impulse Withstand Voltage (Uimp): | Input Circuit 6 kVOutput Circuit 4 kV |
| Degree of Protection: | Housing IP50Terminals IP20 |
| Overvoltage Category: | III |
| Pollution Degree: | 3 |
| Short-Circuit Protective Devices: | Output Circuit NC - F Type Fuses 6 AOutput Circuit NO - F Type Fuses 10 A |
| Electrical Durability: | AC-12 100000 cycle |
| Mechanical Durability: | 30000000 cycle |
| Connecting Capacity: | Flexible with Ferrule 1x 0.5 ... 2.5 mm²Flexible with Ferrule 2x 0.5 ... 1.5 mm²Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²Flexible 1x 0.5 ... 2.5 mm²Flexible 2x 0.5 ... 1.5 mm²Rigid 1x 0.5 ... 4 mm²Rigid 2x 0.5 ... 2.5 mm² |
| Tightening Torque: | 0.6 ... 0.8 N·m |
| Wire Stripping Length: | 8 mm |
| Recommended Screw Driver: | Pozidriv 14.50.8 x 4 |
| Mounting Position: | 1 ... 6 |
| Mounting on DIN Rail: | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Environmental | |
| Ambient Air Temperature: | Operation -25 ... +60 °CStorage -40 ... +85 °C |
| Maximum Operating Altitude Permissible: | Without Derating 2000 m |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | Output Circuit 300 V AC |
| Contact Rating UL/CSA: | B300 |
| Connecting Capacity UL/CSA: | Flexible 1x 18-14 AWGFlexible 2x 18-16 AWGRigid 1x 20-12 AWGRigid 2x 20-14 AWG |
| Tightening Torque UL/CSA: | 7.08 in·lb |
| Certificates and Declarations (Document Number) | |
| CB Certificate: | CB_DK-27947-UL |
| CQC Certificate: | CQC2009010303326655 |
| cULus Certificate: | cULus508_20120829-E140448 |
| Declaration of Conformity - CCC: | 2020980303000197 |
| Declaration of Conformity - CE: | 1SVD981014-00 |
| Declaration of Conformity - UKCA: | 1SVD981014-10 |
| DNV GL Certificate: | DNV_GL_TAA000017D |
| EAC Certificate: | EAC_RU_C-DE.ME77.B.03424 |
| Instructions and Manuals: | 1SVC730730M1000 |
| RoHS Information: | 1SVD981014-00 |
| Container Information | |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 97 mm |
| Package Level 1 Height: | 109 mm |
| Package Level 1 Depth / Length: | 30 mm |
| Package Level 1 Gross Weight: | 0.165 kg |
| Package Level 1 EAN: | 4016779851862 |
| Classifications | |
| Object Classification Code: | B |
| ETIM 4: | EC001441 - Phase monitoring relay |
| ETIM 5: | EC001441 - Phase monitoring relay |
| ETIM 6: | EC001441 - Phase monitoring relay |
| ETIM 7: | EC001441 - Phase monitoring relay |
| eClass: | V11.0 : 27371803 |
| UNSPSC: | 39121536 |
| E-Number (Finland): | 2712278 |
| E-Number (Sweden): | 3860587 |
| ETIM 8: | EC001441 - Phase monitoring relay |
