ABB CT-ARS.11P Time relay, true OFF-delay 1c/o, 24-240VAC/DC 1SVR740120R3100

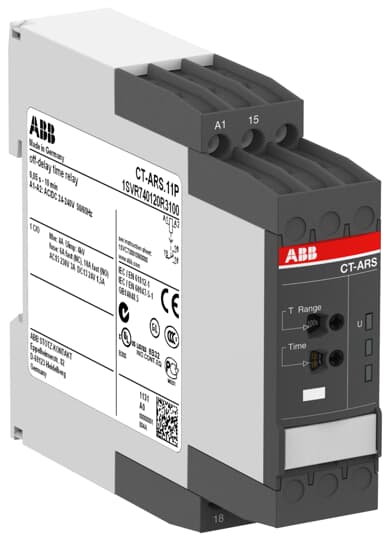

The CT-ARS.11P is a single-function electronic time relay from the CT-S timer range. It provides an OFF-delay (true delay on break) function without auxiliary voltage and with 10 time ranges from 0.05 s to 300 h. This time relay operates with a rated control supply voltage of 24 - 240 V AC / DC and has a 1 c/o (SPDT) output rated at 250 V / 4 A. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.

Specifications

Ordering
EAN:	4016779851695
Minimum Order Quantity:	1 piece
Customs Tariff Number:	85364900
Popular Downloads
Data Sheet, Technical Information:	2CDC110004C0210_01
Instructions and Manuals:	1SVC730050M1000
Dimensions
Product Net Width:	22.5 mm
Product Net Height:	85.6 mm
Product Net Depth / Length:	103.7 mm
Product Net Weight:	0.1 kg
Technical
Timer Relay Type:	True OFF-Delay
Time Range:	0.05 s ... 10 min
Rated Control Supply Voltage (Us):	24 ... 240 V AC/DC
Rated Frequency (f):	50 Hz60 HzDC
Output:	1 c/o (SPDT) contact
Terminal Type:	Screwless Terminals
Rated Operational Current AC-12 (Ie):	(230 V) 4 A
Rated Operational Current AC-15 (Ie):	(230 V) 3 A
Rated Operational Current DC-12 (Ie):	(24 V) 4 A
Rated Operational Current DC-13 (Ie):	(24 V) 1.5 A
Minimum Switching Capacity:	12 V10 mA
Rated Impulse Withstand Voltage (Uimp):	Input Circuit 4 kVOutput Circuit 1 / Output Circuit 2 4 kV
Rated Insulation Voltage (Ui):	Input Circuit / Output Circuit 500 VOutput Circuit 1 / Output Circuit 2 300 V
Degree of Protection:	Housing IP50Terminals IP20
Overvoltage Category:	III
Pollution Degree:	3
Short-Circuit Protective Devices:	Output Circuit NC - F Type Fuses 6 AOutput Circuit NO - F Type Fuses 10 A
Electrical Durability:	AC-12 100000 cycle
Mechanical Durability:	30000000 cycle
Connecting Capacity:	Flexible with Ferrule 2x 0.5 ... 1.5 mm²Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²Flexible 2x 0.5 ... 1.5 mm²Rigid 2x 0.5 ... 1.5 mm²
Wire Stripping Length:	8 mm
Mounting Position:	1 ... 6
Mounting on DIN Rail:	TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:	CAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 61812-1UL 508
Technical UL/CSA
Maximum Operating Voltage UL/CSA:	Output Circuit 300 V AC
Contact Rating UL/CSA:	B300
Connecting Capacity UL/CSA:	Flexible 2x 18-16 AWGRigid 2x 20-16 AWG
Environmental
Ambient Air Temperature:	Operation -25 ... +60 °CStorage -40 ... +85 °C
Maximum Operating Altitude Permissible:	Without Derating 2000 m
RoHS Status:	Following EU Directive 2011/65/EU
Certificates and Declarations (Document Number)
CQC Certificate:	CQC2007010303255979
cULus Certificate:	cULus508_20110711-E140448A
Data Sheet, Technical Information:	2CDC110004C0210_01
Declaration of Conformity - CCC:	2020980303000207
Declaration of Conformity - CE:	1SVD981008
Declaration of Conformity - UKCA:	1SVD981008-10
EAC Certificate:	EAC_RU_C-DE.ME77.B.00568/20
Environmental Information:	1SAC200095H0001
Instructions and Manuals:	1SVC730050M1000
RMRS Certificate:	RMRS_1740021250
RoHS Information:	1SVD981008
Container Information
Package Level 1 Units:	box 1 piece
Package Level 1 Width:	97 mm
Package Level 1 Depth / Length:	30 mm
Package Level 1 Height:	109 mm
Package Level 1 Gross Weight:	0.122 kg
Package Level 1 EAN:	4016779851695
