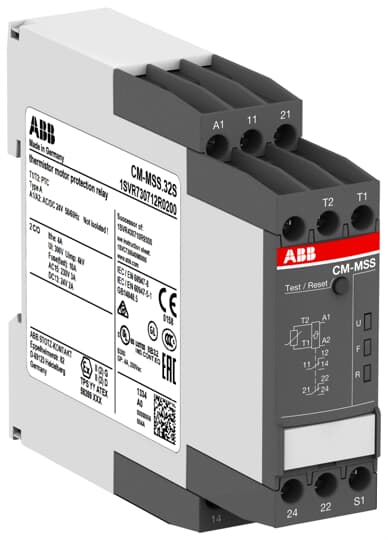

ABB CM-MSS.32P Therm. motor protec. relay 2c/o, 24VAC/DC 1SVR740712R0200
ABB CM-MSS.32P Therm. motor protec. relay 2c/o, 24VAC/DC 1SVR740712R0200
Regular price
R 858.59 ZAR
Regular price
R 1,561.08 ZAR
Sale price
R 858.59 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The CM-MSS.32P belongs to the CM-MSS thermistor motor protection relay range. It operates with a rated control supply voltage of 24 V AC/DC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. It features one sensor circuit to monitor PTC temperature sensors and works according to the closed-circuit principle. The sensor circuit of this CM-MSS.32P is short-circuit, as well as interrupted-wire monitored and the relay can be reset automatically, manually or remotely after the failure has been removed. This protection relay is certified according to the ATEX directive 94/9/EC and is equipped with a reset / test button. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.
Specifications
| Ordering | |
|---|---|
| EAN: | 4013614496578 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Dimensions | |
| Product Net Width: | 22.5 mm |
| Product Net Height: | 85.6 mm |
| Product Net Depth / Length: | 103.7 mm |
| Product Net Weight: | 0.12 kg |
| Container Information | |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 97 mm |
| Package Level 1 Height: | 109 mm |
| Package Level 1 Depth / Length: | 30 mm |
| Package Level 1 Gross Weight: | 0.146 kg |
| Package Level 1 EAN: | 4013614496578 |
| Technical | |
| Function: | 1 sensor circuitShort-circuit detectionDynamic interrupted wire detectionAutomanual or remote resetATEX approved |
| Rated Control Supply Voltage (Us): | 24 V AC/DC |
| Rated Frequency (f): | Supply Circuit 50/60 Hz |
| Output: | 2 c/o (SPDT) contacts |
| Terminal Type: | Screwless Terminals |
| Rated Operational Current AC-12 (Ie): | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie): | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie): | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie): | (24 V) 2 A |
| Minimum Switching Capacity: | 24 V10 mA |
| Rated Insulation Voltage (Ui): | Measuring Circuit / Output Circuit 300 VOutput Circuit 1 / Output Circuit 2 300 VSupply Circuit / Output Circuit 300 V |
| Rated Impulse Withstand Voltage (Uimp): | Output Circuit 1 / Output Circuit 2 4 kVOutput Circuit 4 kV |
| Degree of Protection: | Housing IP50Terminals IP20 |
| Overvoltage Category: | III |
| Pollution Degree: | 3 |
| Short-Circuit Protective Devices: | Output Circuit NC - F Type Fuses 10 AOutput Circuit NO - F Type Fuses 10 A |
| Electrical Durability: | AC-12 100000 cycle |
| Mechanical Durability: | 30000000 cycle |
| Connecting Capacity: | Flexible 2x 0.5 ... 1.5 mm²Rigid 2x 0.5 ... 1.5 mm² |
| Wire Stripping Length: | 8 mm |
| Mounting Position: | 1 ... 6 |
| Mounting on DIN Rail: | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards: | CAN/CSA C22.2 No.14EN 50495IEC/EN 63000IEC/EN 60079-7IEC/EN 60947-5-1IEC/EN 60947-8UL 508 |
| Environmental | |
| Ambient Air Temperature: | Operation -25 ... +60 °CStorage -40 ... +85 °C |
| Maximum Operating Altitude Permissible: | Without Derating 2000 m |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | Output Circuit 300 V AC |
| Contact Rating UL/CSA: | B300 |
| Connecting Capacity UL/CSA: | Flexible 2x 18-16 AWGRigid 2x 20-16 AWG |
| Certificates and Declarations (Document Number) | |
| ATEX Certificate: | EU Type Examination Certificate_TPS_18_ATEX_044254_0018_X |
| CB Certificate: | CB_DK-40837-UL |
| CCC Certificate: | CCC_2005010303165479 |
| CQC Certificate: | CQC2005010303165479 |
| cULus Certificate: | cULus508_20140912-E140448 |
| Data Sheet, Technical Information: | 2CDC112221D0201 |
| Declaration of Conformity - CCC: | 2020980303000194 |
| Declaration of Conformity - CE: | 1SVD981007 |
| Declaration of Conformity - UKCA: | 1SVD981007-10 |
| DNV GL Certificate: | DNVGL_TAE00003W4 |
| EAC Certificate: | EAC_RU_C-DE.ME77.B.01825 |
| Instructions and Manuals: | 1SVC730700M1000 |
| Instructions and Manuals (Part 2): | 1SVC730640M9000 |
| RoHS Information: | 1SVD981007 |
| Classifications | |
| Object Classification Code: | B |
| ETIM 5: | EC002568 - Temperature monitor (motor protection) |
| ETIM 6: | EC002568 - Relay for thermistor protection (PTC) |
| ETIM 7: | EC002568 - Relay for thermistor protection (PTC) |
| ETIM 8: | EC002568 - Relay for thermistor protection (PTC) |
| eClass: | V11.0 : 27371503 |
| E-Number (Finland): | 2712507 |
| E-Number (Sweden): | 3860733 |
