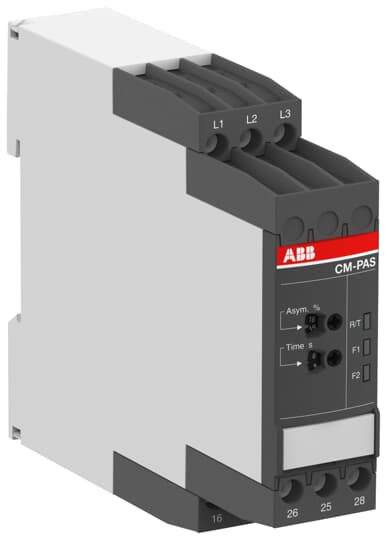

ABB CM-PAS.41P Three-phase monitoring relay 2c/o, 0,0.1-30s, L1-L2-L3=3x300-500VAC 1SVR740774R3300

The CM-PAS.41P relay is from the CM three-phase monitors range. This relay operates with a rated control supply voltage / three-phase measuring voltage of 300-500 V AC and has a 2 c/o output with contacts rated at 250 V / 4 A. The CM-PAS.41P monitors the phase parameters phase failure, phase sequence and phase unbalance. An ON-delay is adjustable over a range of instantaneous to 30 s (0, 0.1-30 s). A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals. The device offers screw connection technology with double-chamber cage connection terminals.

Specifications

Ordering
Minimum Order Quantity:	1 piece
Customs Tariff Number:	85364900
Popular Downloads
Data Sheet, Technical Information:	2CDC112206D0201
Instructions and Manuals:	1SVC730730M1000
Dimensions
Product Net Width:	22.5 mm
Product Net Depth / Length:	103.7 mm
Product Net Height:	85.6 mm
Product Net Weight:	0.123 kg
Technical
Function:	Phase failure detectionPhase sequence monitoringPhase unbalance detection
Standards:	CAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 60255-27IEC/EN 61000-6-2IEC/EN 61000-6-3UL 508
Measuring Range:	(L-L) 300 ... 500 V AC
Rated Control Supply Voltage (Us):	(L-L) 300 ... 500 V AC
Rated Frequency (f):	Supply Circuit 50/60 Hz
Output:	2 c/o (SPDT) contacts
Time Range:	200 ms start-up delay0 s or 0.1 ... 30 s tripping delay (ON)
Terminal Type:	Screwless Terminals
Rated Operational Current AC-12 (Ie):	(230 V) 4 A
Rated Operational Current AC-15 (Ie):	(230 V) 3 A
Rated Operational Current DC-12 (Ie):	(24 V) 4 A
Rated Operational Current DC-13 (Ie):	(24 V) 2 A
Minimum Switching Capacity:	24 V10 mA
Rated Insulation Voltage (Ui):	Input Circuit / Output Circuit 600 VOutput Circuit 1 / Output Circuit 2 300 V
Rated Impulse Withstand Voltage (Uimp):	Input Circuit 6 kVOutput Circuit 4 kV
Degree of Protection:	Housing IP50Terminals IP20
Overvoltage Category:	III
Pollution Degree:	3
Short-Circuit Protective Devices:	Output Circuit NC - F Type Fuses 6 AOutput Circuit NO - F Type Fuses 10 A
Electrical Durability:	AC-12 100000 cycle
Mechanical Durability:	30000000 cycle
Connecting Capacity:	Flexible with Ferrule 2x 0.5 ... 1.5 mm²Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²Flexible 2x 0.5 ... 1.5 mm²Rigid 2x 0.5 ... 1.5 mm²
Wire Stripping Length:	8 mm
Mounting Position:	1 ... 6
Mounting on DIN Rail:	TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Environmental
Ambient Air Temperature:	Operation -25 ... +60 °CStorage -40 ... +85 °C
Maximum Operating Altitude Permissible:	Without Derating 2000 m
RoHS Status:	Following EU Directive 2011/65/EU
Technical UL/CSA
Maximum Operating Voltage UL/CSA:	Output Circuit 300 V AC
Contact Rating UL/CSA:	B300
Connecting Capacity UL/CSA:	Flexible 2x 18-16 AWGRigid 2x 20-16 AWG
Certificates and Declarations (Document Number)
CQC Certificate:	CQC2009010303326655
cULus Certificate:	cULus508_20120829-E140448
Declaration of Conformity - CCC:	2020980303000197
Declaration of Conformity - CE:	1SVD981014-00
Declaration of Conformity - UKCA:	1SVD981014-10
DNV GL Certificate:	DNV_GL_TAA000017D
EAC Certificate:	EAC_RU_C-DE.ME77.B.03424
Instructions and Manuals:	1SVC730730M1000
RoHS Information:	1SVD981014-00
Container Information
Package Level 1 Units:	box 1 piece
Package Level 1 Width:	97 mm
Package Level 1 Height:	109 mm
Package Level 1 Depth / Length:	30 mm
Package Level 1 Gross Weight:	0.148 kg
Package Level 1 EAN:	4016779851985
Classifications
Object Classification Code:	B
ETIM 4:	EC001441 - Phase monitoring relay
ETIM 5:	EC001441 - Phase monitoring relay
ETIM 6:	EC001441 - Phase monitoring relay
ETIM 7:	EC001441 - Phase monitoring relay
eClass:	V11.0 : 27371803
UNSPSC:	39121536
E-Number (Finland):	2712283
E-Number (Sweden):	3860599
ETIM 8:	EC001441 - Phase monitoring relay
