ABB CM-ESS.MP Voltage monitoring relay 2c/o, B-C=3-600VRMS, 24-240VAC/DC 1SVR740830R0500
ABB CM-ESS.MP Voltage monitoring relay 2c/o, B-C=3-600VRMS, 24-240VAC/DC 1SVR740830R0500
Regular price
R 2,348.48 ZAR
Regular price
R 4,269.97 ZAR
Sale price
R 2,348.48 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

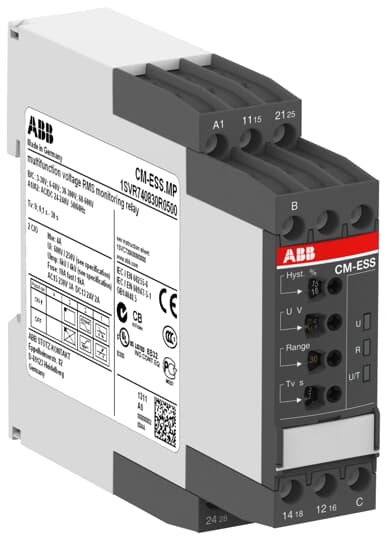

The CM-ESS.MP is a multifunctional voltage monitoring relay from the CM single-phase monitors range. This monitoring relay operates with a rated control supply voltage of 24 - 240 V AC / DC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. It provides a RMS measuring principle for DC and AC voltages with 4 measuring ranges: 3-30 V, 6-60 V, 30-300 V and 60-600 V. The CM-ESS.MP offers selection of over- or undervoltage monitoring, open- or closed-circuit operating principle, with or without latching function. The hysteresis is adjustable within a range of 3 to 30 % of the threshold value. The tripping delay and the start-up delay are adjustable over a range of instantaneous to 30 s (0, 0.1-30 s). A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.
Specifications
| Ordering | |
|---|---|
| EAN: | 4016779852418 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC112173D0201 |
| Instructions and Manuals: | 1SVC730710M1000 |
| Dimensions | |
| Product Net Width: | 22.5 mm |
| Product Net Depth / Length: | 103.7 mm |
| Product Net Height: | 85.6 mm |
| Product Net Weight: | 0.143 kg |
| Technical | |
| Function: | Over- or undervoltage monitoring |
| Measuring Range: | 3 ... 30 V6 ... 60 V30 ... 300 V60 ... 600 V |
| Rated Control Supply Voltage (Us): | 24 ... 240 V AC/DC |
| Output: | 2 c/o (SPDT) contact; operating principle selectable |
| Time Range: | 0 s or 0.1 ... 30 s tripping delay (ON) |
| Terminal Type: | Screwless Terminals |
| Rated Operational Current AC-12 (Ie): | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie): | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie): | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie): | (24 V) 2 A |
| Minimum Switching Capacity: | 24 V10 mA |
| Rated Insulation Voltage (Ui): | Measuring Circuit / Output Circuit 600 VOutput Circuit 1 / Output Circuit 2 250 VSupply Circuit / Measuring Circuit 600 VSupply Circuit / Output Circuit 250 V |
| Rated Impulse Withstand Voltage (Uimp): | Measuring Circuit / Output Circuit 6 kVOutput Circuit 1 / Output Circuit 2 4 kVSupply Circuit / Measuring Circuit 6 kVSupply Circuit / Output Circuit 4 kV |
| Degree of Protection: | Housing IP50Terminals IP20 |
| Overvoltage Category: | III |
| Pollution Degree: | 3 |
| Short-Circuit Protective Devices: | Output Circuit NC - F Type Fuses 10 AOutput Circuit NO - F Type Fuses 10 A |
| Electrical Durability: | AC-12 100000 cycle |
| Mechanical Durability: | 30000000 cycle |
| Connecting Capacity: | Flexible with Ferrule 2x 0.5 ... 1.5 mm²Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²Flexible 2x 0.5 ... 1.5 mm²Rigid 2x 0.5 ... 1.5 mm² |
| Wire Stripping Length: | 8 mm |
| Mounting Position: | 1 ... 6 |
| Mounting on DIN Rail: | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards: | CAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 60255-27IEC/EN 61000-6-2IEC/EN 61000-6-3UL 508 |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | Output Circuit 300 V AC |
| Contact Rating UL/CSA: | B300 |
| Connecting Capacity UL/CSA: | Flexible 2x 18-16 AWGRigid 2x 20-16 AWG |
| Environmental | |
| Ambient Air Temperature: | Operation -20 ... +60 °CStorage -40 ... +85 °C |
| Maximum Operating Altitude Permissible: | Without Derating 2000 m |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Certificates and Declarations (Document Number) | |
| CB Certificate: | CB_DK-28255-UL |
| CQC Certificate: | CQC2007010303243843 |
| cULus Certificate: | cULus508_20120203-E140448 |
| Data Sheet, Technical Information: | 2CDC112173D0201 |
| Declaration of Conformity - CCC: | 2020980303000196 |
| Declaration of Conformity - CE: | 1SVD981013-00 |
| Declaration of Conformity - UKCA: | 1SVD981013-10 |
| DNV GL Certificate: | DVN_GL_TAA0000292 |
| EAC Certificate: | EAC_RU_C-DE.ME77.B.03424 |
| Instructions and Manuals: | 1SVC730710M1000 |
| RoHS Information: | 1SVD981013-00 |
| Container Information | |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 97 mm |
| Package Level 1 Height: | 109 mm |
| Package Level 1 Depth / Length: | 30 mm |
| Package Level 1 Gross Weight: | 0.165 kg |
| Package Level 1 EAN: | 4016779852418 |
| Classifications | |
| Object Classification Code: | B |
| ETIM 4: | EC001438 - Voltage monitoring relay |
| ETIM 5: | EC001438 - Voltage monitoring relay |
| ETIM 6: | EC001438 - Voltage monitoring relay |
| ETIM 7: | EC001438 - Voltage monitoring relay |
| ETIM 8: | EC001438 - Voltage monitoring relay |
| eClass: | V11.0 : 27371801 |
| UNSPSC: | 39121514 |
| E-Number (Finland): | 2712253 |
| E-Number (Sweden): | 3860643 |
