Part Number: 1SVR750489R8300
Couldn't load pickup availability
Refresh

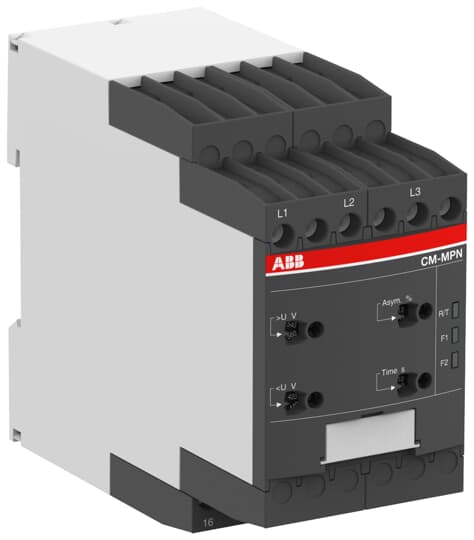

The CM-MPN.72S is a multifunctional relay from the CM three-phase monitors range. It operates with a rated control supply voltage / three-phase measuring voltage of 530-820 V AC 50/60 Hz and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. This relay monitors all phase parameters such as over/undervoltage, phase unbalance and phase failure. The corresponding threshold values are adjustable. The CM-MPN.72S also offers selection of phase sequence monitoring, automatic phase sequence correction as well as an ON or OFF tripping delay. The output contacts can be configured as 1x2 c/o (SPDT) contacts (common signal) or 2x1 c/o (SPDT) contact (separate signal for over- and undervoltage thresholds) operation. The tripping delay is adjustable over a range of instantaneous to 30 s (0, 0.1-30 s). A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers screw connection technology with double-chamber cage connection terminals.
Specifications
Ordering
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900
Popular Downloads
Data Sheet, Technical Information:
2CDC112177D0201
Instructions and Manuals:
1SVC730730M1000
Dimensions
Product Net Width:
45 mm
Product Net Depth / Length:
104.8 mm
Product Net Height:
85.6 mm
Product Net Weight:
0.224 kg
Technical
Function:
Automatic phase sequence correctionOver- and undervoltage monitoringPhase failure detectionPhase unbalance detectionPhase sequence monitoring
Standards:
IEC/EN 63000IEC/EN 60255-27IEC/EN 61000-6-2IEC/EN 61000-6-3
Measuring Range:
(L-L) 530 ... 820 V AC
Rated Control Supply Voltage (Us):
(L-L) 530 ... 820 V AC
Rated Frequency (f):
Supply Circuit 50/60 Hz
Output:
2 x 1 c/o or 1 x 2 c/o contacts, configurable
Time Range:
0 s or 0.1 ... 30 s tripping delay (ON or OFF)200 ms start-up delay
Terminal Type:
Screw Terminals
Rated Operational Current AC-12 (Ie):
(230 V) 4 A
Rated Operational Current AC-15 (Ie):
(230 V) 3 A
Rated Operational Current DC-12 (Ie):
(24 V) 4 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
Minimum Switching Capacity:
24 V10 mA
Rated Insulation Voltage (Ui):
Input Circuit / Output Circuit 1000 VOutput Circuit 1 / Output Circuit 2 300 V
Rated Impulse Withstand Voltage (Uimp):
Input Circuit 8 kVOutput Circuit 4 kV
Degree of Protection:
Housing IP50Terminals IP20
Overvoltage Category:
III
Pollution Degree:
3
Short-Circuit Protective Devices:
Output Circuit NC - F Type Fuses 6 AOutput Circuit NO - F Type Fuses 10 A
Electrical Durability:
AC-12 100000 cycle
Mechanical Durability:
30000000 cycle
Connecting Capacity:
Flexible with Ferrule 1x 0.5 ... 2.5 mm?ýFlexible with Ferrule 2x 0.5 ... 1.5 mm?ýFlexible with Insulated Ferrule 1x 0.5 ... 2.5 mm?ýFlexible with Insulated Ferrule 2x 0.5 ... 1.5 mm?ýFlexible 1x 0.5 ... 2.5 mm?ýFlexible 2x 0.5 ... 1.5 mm?ýRigid 1x 0.5 ... 4 mm?ýRigid 2x 0.5 ... 2.5 mm?ý
Tightening Torque:
0.6 ... 0.8 N?úm
Wire Stripping Length:
8 mm
Recommended Screw Driver:
4.50.8 x 4Pozidriv 1
Mounting Position:
1 ... 6
Mounting on DIN Rail:
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Environmental
Ambient Air Temperature:
Operation -25 ... +60 ?øCStorage -40 ... +85 ?øC
Maximum Operating Altitude Permissible:
Without Derating 2000 m
RoHS Status:
Following EU Directive 2011/65/EU
Technical UL/CSA
Maximum Operating Voltage UL/CSA:
Output Circuit 300 V AC
Contact Rating UL/CSA:
B300
Connecting Capacity UL/CSA:
Flexible 1x 18-14 AWGFlexible 2x 18-16 AWGRigid 2x 20-14 AWGRigid 1x 20-12 AWG
Tightening Torque UL/CSA:
7.08 in?úlb
Certificates and Declarations (Document Number)
CB Certificate:
CB_DK-27946-UL
CQC Certificate:
CQC2009010303326655
Declaration of Conformity - CCC:
2020980303000197
Declaration of Conformity - CE:
1SVD981014-00
Declaration of Conformity - UKCA:
1SVD981014-10
DNV GL Certificate:
DNV_GL_TAA000017D
EAC Certificate:
EAC_RU_C-DE.ME77.B.03424
Instructions and Manuals:
1SVC730730M1000
RoHS Information:
1SVD981014-00
Container Information
Package Level 1 Units:
box 1 piece
Package Level 1 Width:
97 mm
Package Level 1 Height:
109 mm
Package Level 1 Depth / Length:
52.5 mm
Package Level 1 Gross Weight:
0.249 kg
Package Level 1 EAN:
4016779851930
Classifications
Object Classification Code:
B
ETIM 4:
EC001441 - Phase monitoring relay
ETIM 5:
EC001441 - Phase monitoring relay
ETIM 6:
EC001441 - Phase monitoring relay
ETIM 7:
EC001441 - Phase monitoring relay
eClass:
V11.0 : 27371803
UNSPSC:
39121536
E-Number (Finland):
2712268
E-Number (Sweden):
3860594
ETIM 8:
EC001441 - Phase monitoring relay
